Wooden Patio PSK

Drewniane drzwi uchylno-przesuwne
z okuciami PORTAL PSK comfort.

Patio PSK drewniane.

Large constructions require the use of appropriate profiles and reinforcements. Among such solutions are wooden swing-sliding doors (Patio PSK) from the MS Range Windows and Doors. Their convenience is due to the presence of proven Siegenia eyes.

PSK patio made of wood – product lines

Wooden sliding doors, which are included in the ms window and door offer,are available in five product lines: Soft, Classic, Modern, Art and Old. These variants differ from each other in the finish of the soaring strip, as well as the clingy wings. The extensive range allows you to easily get a solution tailored to the style of the interior and building.

Wooden Patio PSK – wing thickness

The frames and wings of the swing-sliding doors are made of profiles 92 mm thick. MS Windows and Doors also includes designs based on 68 mm and 80 mm thick wing profiles. All of these solutions are available in the above-mentioned product line variants. The graphic below shows an example of a 92 mm thick Patio PSK Modern.

PSK z drewna - przekrój.

Patio PSK opening schemes

Wooden swing-sliding doors can be made in many opening schemes. The different variants differ in the number and location of the moving and fixed accommodation units. The following graphic illustrates the available variants.

Wood colours and grades

Swing-sliding doors from the MS range Windows and Doors can be made in many variants, depending on the preferences regarding the type and color of wood. The raw material grades offered have different characteristics in terms of both appearance and physical properties. Carefully selected color palettes allow you to create a design tailored to the expectations of customers.

PSK patio made of wood – eyege

Product line variants and opening schemes are not the only aspects that differ from each other tilt-sliding structures from the ms windows and doors offer. Also noteworthy are the applied eyegees. The available variants are:

  • PSK 160 comfort,
  • PSK 200-Z comfort.

The first variant of the PORTAL PSK comfort eye system is designed for a design with a wing weight of not more than 160 kg. The use of these mechanisms provides intuitive operation of patio PSK and allows you to meet the diverse requirements of its future users. For the largest structures, psk 200-Z mechanisms are used – a system with assisted tilt function. Convenient operation of wings with a weight of up to 200 kg is guaranteed by additional carriages.

Wózek jezdny stosowany w konstrukcjach Patio PSK.

Smooth wing operation

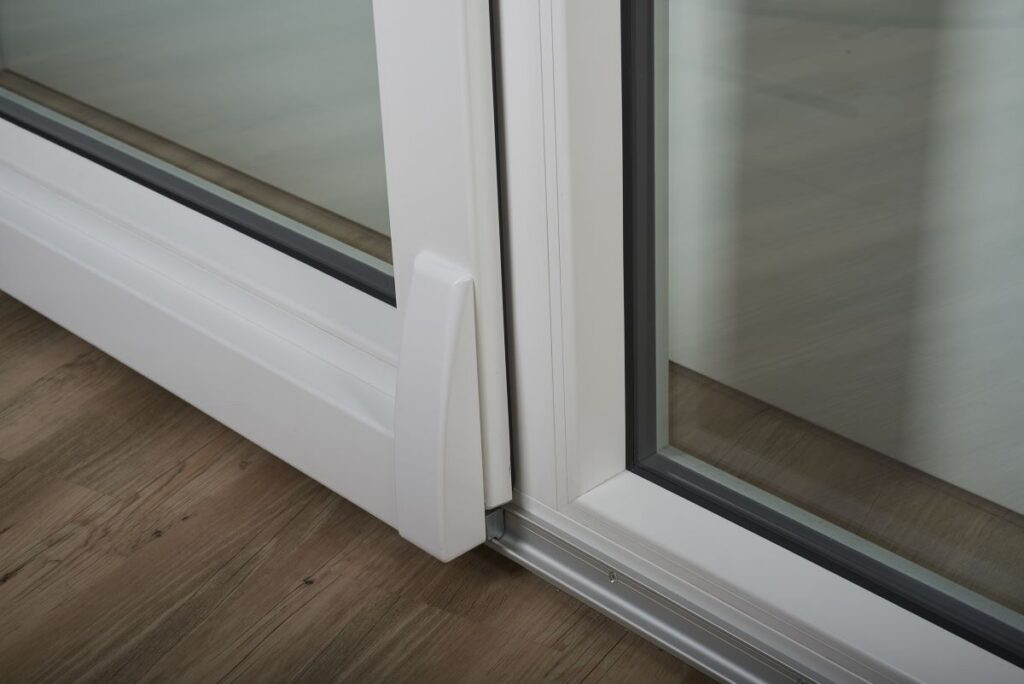

One of the elements of siegenia PORTAL PSK comfort is the rollover, which allows gentle entry of the wing into the door frame. It is located in the running rail for smooth movement of active wings. The use of these mechanisms guarantees the comfort of using wooden tilt-and-travel structures.

Door handles for wooden Patio PSK

The handles used in patio PSK 130 and 160 are available in both the basic version and the key version. In addition, a double-sided handle with a lock can be installed in these structures. In such a situation, you need to apply wider wing straps from the side of the handle.
