Fasteners and extensions for 82 mm systems

Akcesoria kompatybilne z systemami: Wood Look, ALU LOOK, MSline+ oraz MS evolution [82].

Łącznik kątowy 135.

Connectors

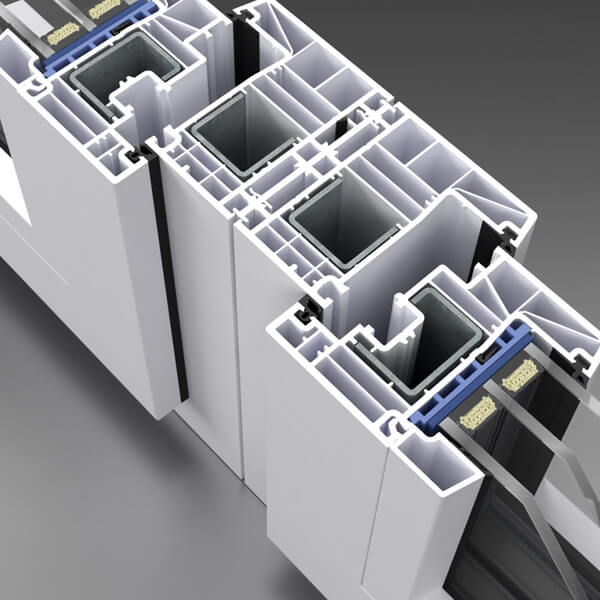

Mini white

Symbol: NP8110

Mini white connector.

Description: PVC profile, the thickness of which is 2 mm. With this element, you can connect two windows or a window and a balcony together. The connector is only available in white.

Mushroom

Symbol: NP019

Mushroom connector.

Description: PVC profile, which allows you to connect two windows or a window to the balcony. The thickness of the element is 2.5 mm. This type of connector can be used to combine windows of typical dimensions – those that do not require additional, more advanced components to ensure the right rigidity of the structure. The connector can be adjusted to any color of the veneer – it occurs in a pair adapted in color to the inner as well as the outer part of the window.

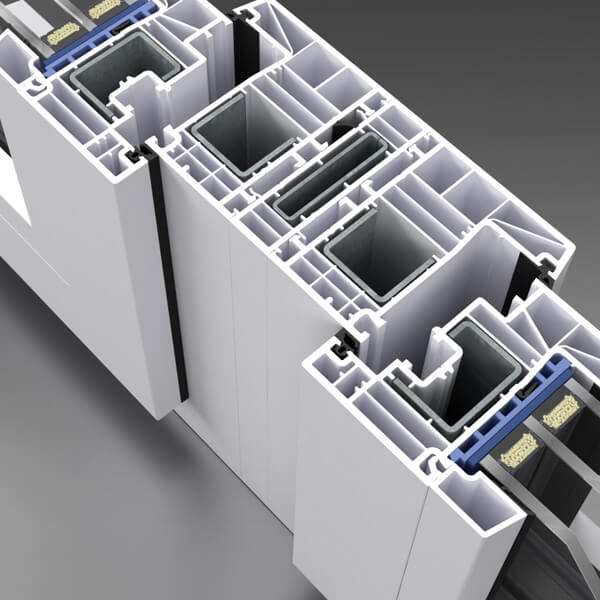

20 mm with reinforcement

Symbol: NP8120

20 mm connector with reinforcement.

Description: PVC profile with steel reinforcement. This element is designed to combine structures of relatively small dimensions. It creates a single plane with a window frame. The use of reinforcement ensures proper rigidity in the structure.

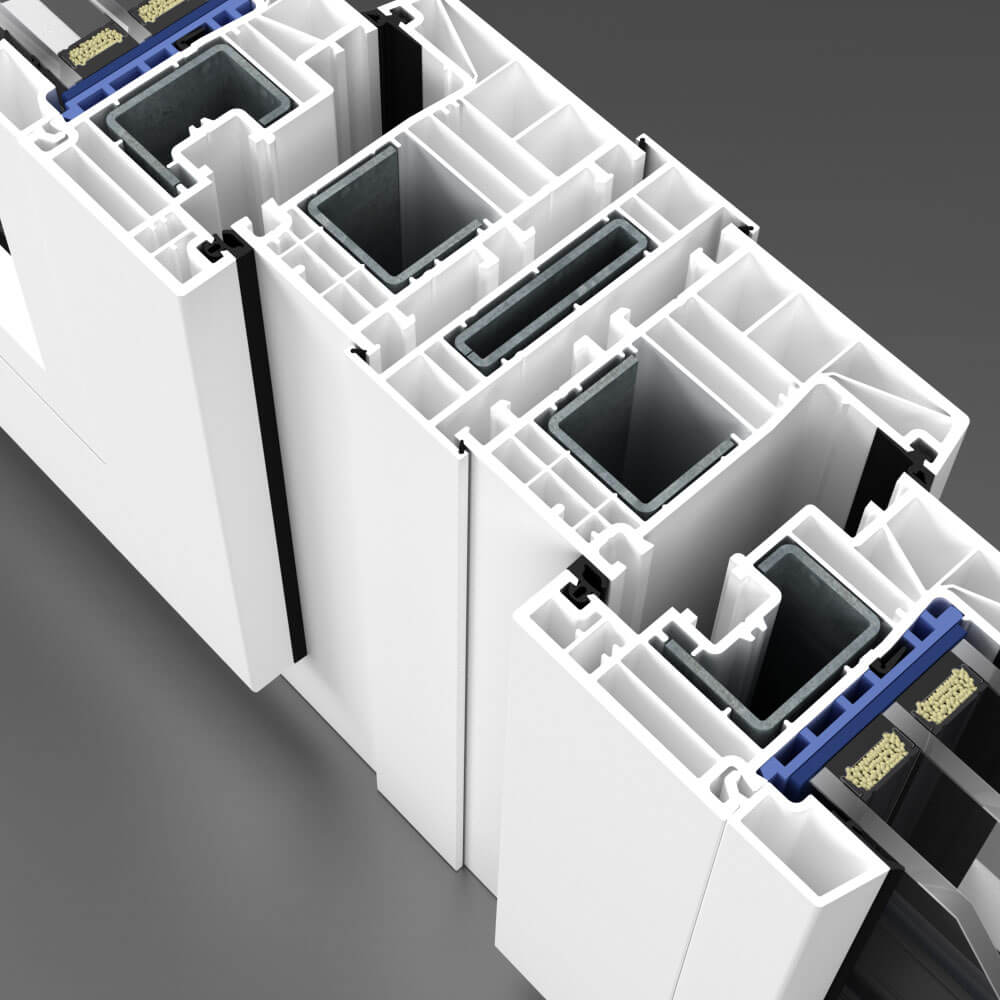

20 mm expansion with reinforcement

Symbol: NP8170

Description: PVC profile with steel reinforcement. Thanks to it, you can combine large-width structures, consisting of several windows. This element should be used when connecting windows whose width exceeds 6 m.

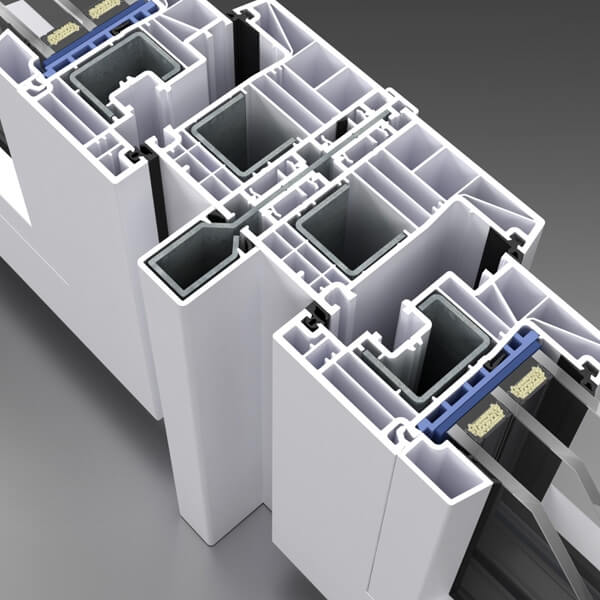

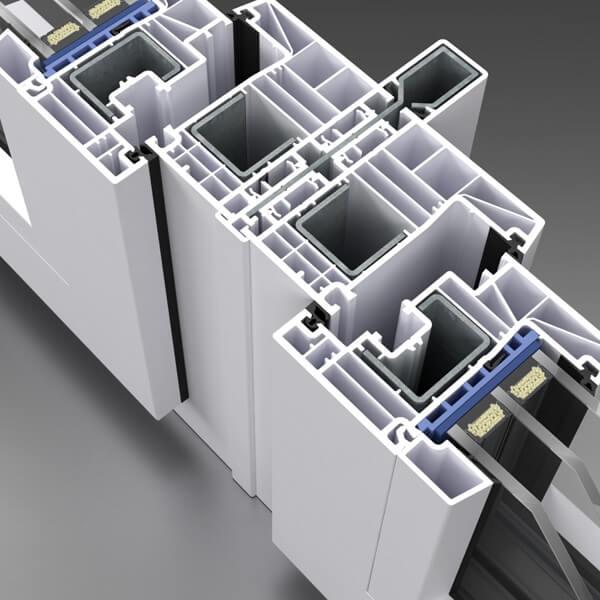

bone

Symbol: NP8140

Description: Steel profile in PVC cover, which allows you to combine windows of large dimensions. For such structures, the influence of wind is an important aggravating factor. Please note that the bone connector must be attached to the building. This element does not form a single plane with a window (protrudes 35 mm from the inside or outside). The use of this component is necessary when connecting doors with adjacent glazing.

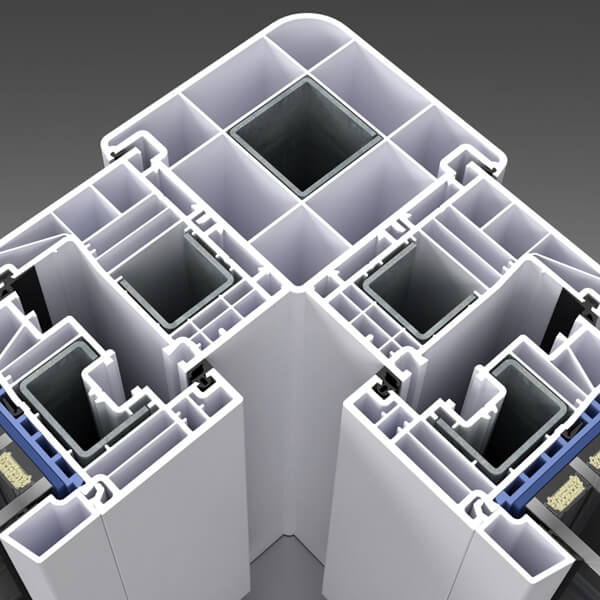

90° with gain

Symbol: NP010

Connector 90 with reinforcement.

Description: PVC profile designed to connect corner windows at an angle of 90°. Thanks to the presence of steel reinforcement, it provides the structure with the right rigidity. Since the opening windows may collide, it is worth using not only a fastener, but also an extension with a width of at least 30 mm.

Variable-connection tube-chamber, with reinforcement

Symbol: NP8160

Tube-chamber connector with variable connection angle, with reinforcement.

Description: PVC profile, thanks to which you can combine window structures at the selected angle from 90° to 180°. This solution allows the construction of windows in bay windows, which is increasingly popular. The profile is reinforced with aluminum.

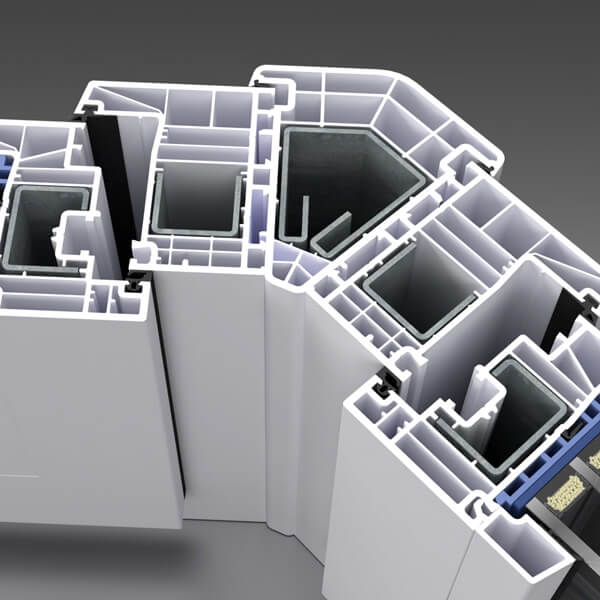

Angled 135°

Symbol: 416240

Angle connector 135.

Description: Pvc profile, which – thanks to the presence of steel reinforcement – is characterized by increased rigidity. This element allows the construction to be mounted at an angle of 135°. Therefore, it is possible to build windows in bay windows.

Widening the wall

10 mm
(depth 82 mm)

Symbol: NP8200

30 mm with gain (depth 82 mm)

Symbol: NP8300

50 mm with reinforcement (depth 82 mm)

Symbol: NP8500

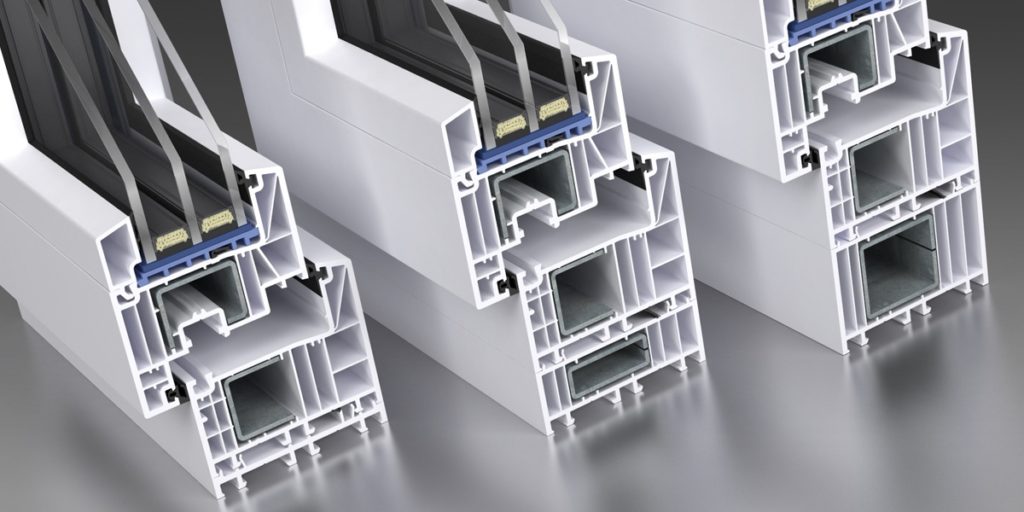

Padded extensions: 10 mm, 30 mm with reinforcement and 50 mm with reinforcement.

Description: PVC profile, which is used to expand the window frame. It is usually used to change the overall width. It is sometimes also used to change the depth of the structure.

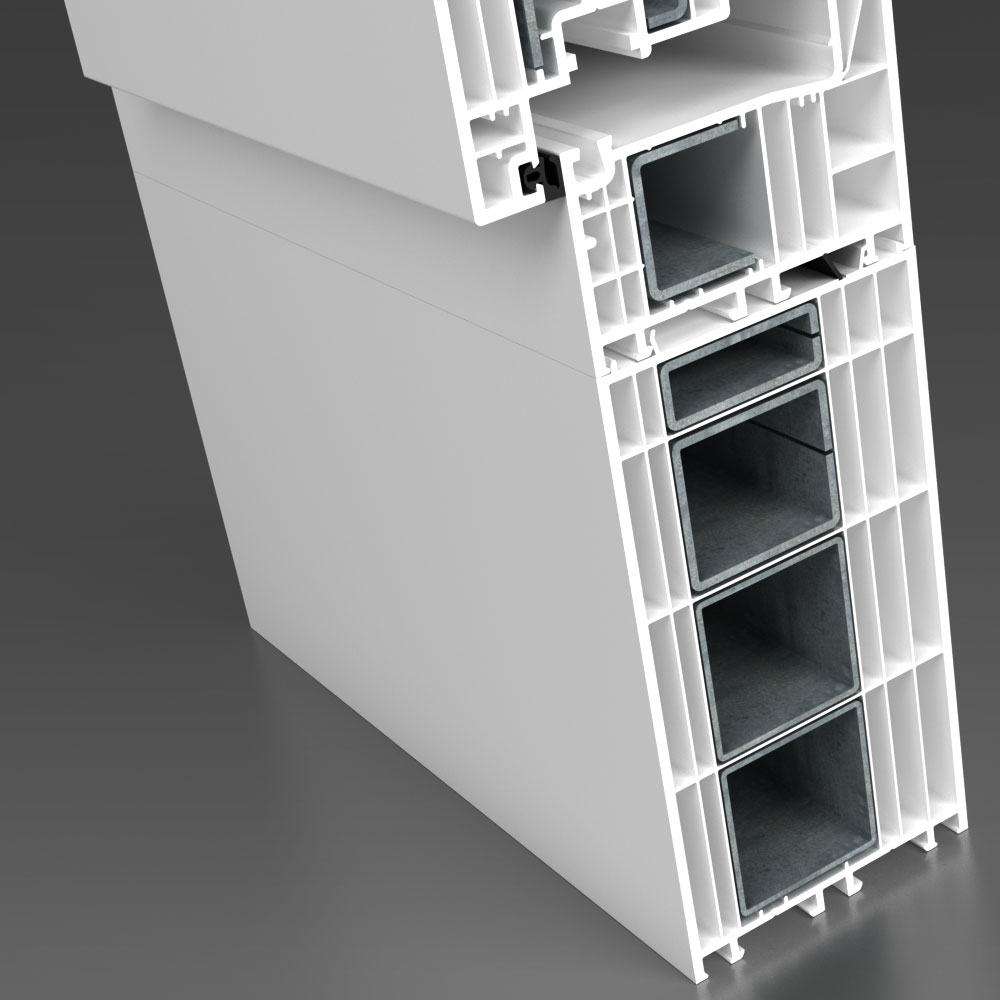

150 mm with reinforcement
(depth 82 mm)

Symbol: NP8700

Description: A profile that allows you to change the width of the frame. Sometimes it is also used to change the depth of the structure. This element shall be applied m.in. when installing external window blinds for polystyrene (hybrid roller shutters), as well as blinds with visible box from the outside (external blinds).

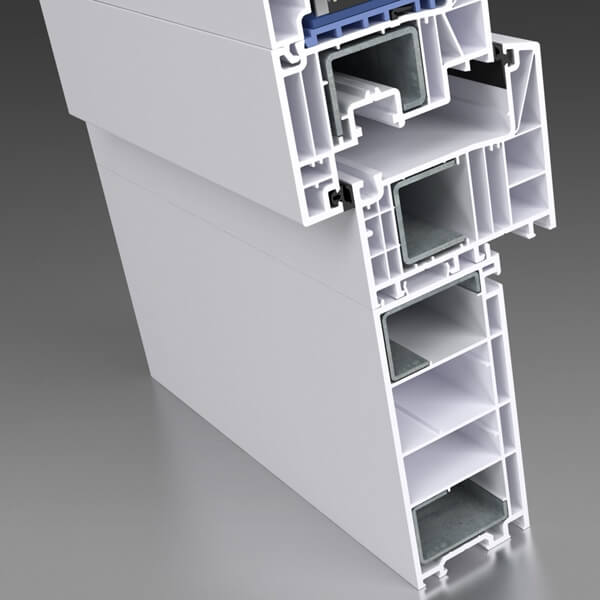

120 mm with one gain
(depth 55 mm)

Symbol: NP328

120 mm padded wall extension with one reinforcement.

Description: Subliminal extension, which is used to perform the installation of the window frame, if the floor has not yet been finished. In this case, the window must be propped up so that it does not deform. The widening can be cut lengthwise, but only to the height of the chambers (32-35 mm, 61-64 mm and 83-86 mm). This element is only in white.

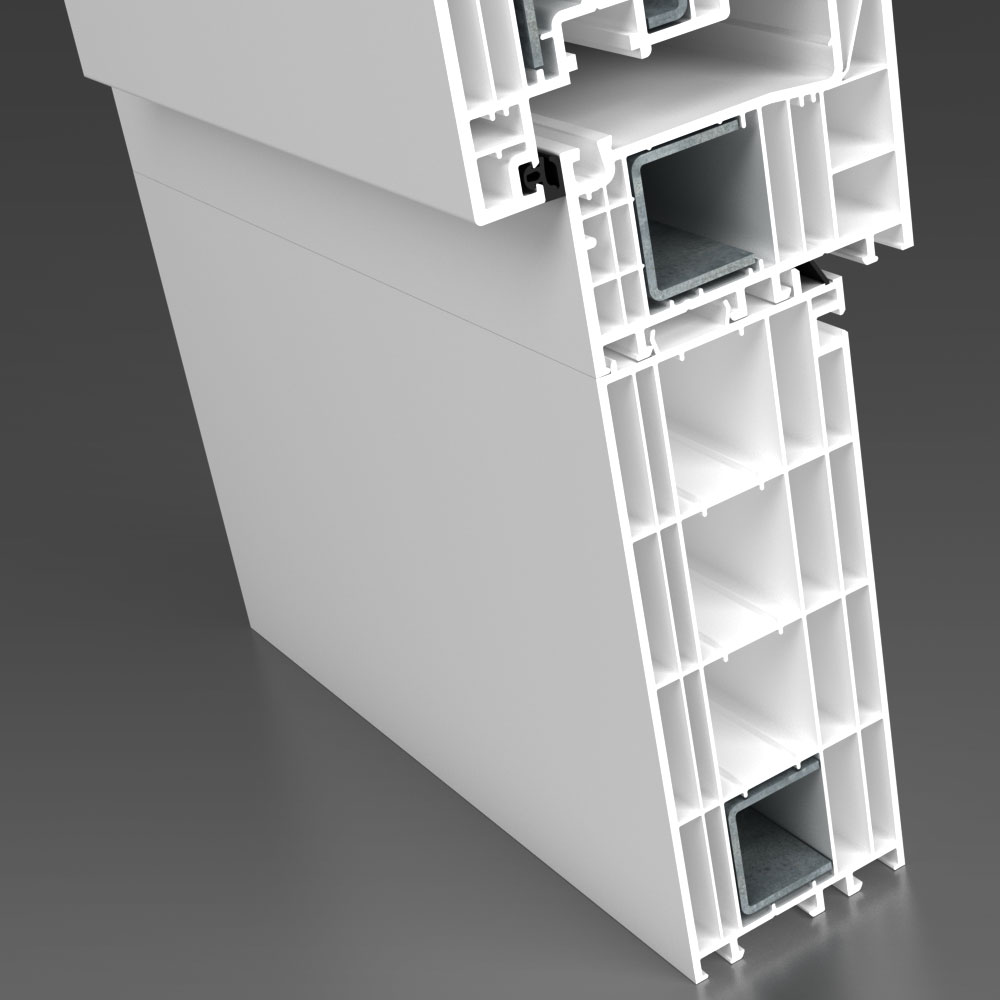

150 mm with one gain
(depth 62 mm)

Symbol: NP8280

Description: Subliminal extension, which is used to perform the installation of the window frame, if the floor has not yet been finished. In this case, the window must be propped up so that it does not deform. The widening can be cut lengthwise, but only to the height of the chambers (32-35 mm, 61-64 mm and 83-86 mm). This element is only in white.

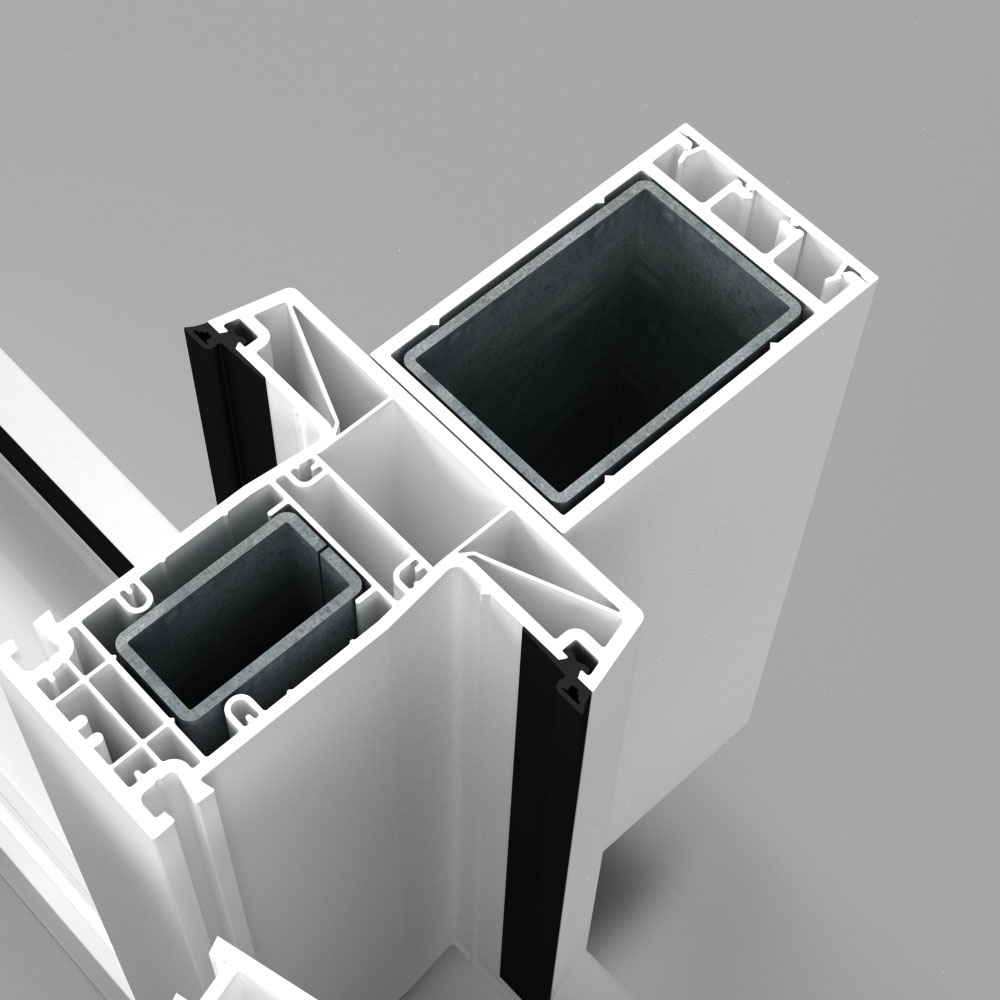

Stiffening profile with steel 60x40x3

Symbol: NP071

Description: Steel profile in PVC cover, the thickness of which is 3 mm. This element is used to strengthen windows with large dimensions. It does not form a single plane with a window (protrudes from the outside by 75 mm).
