SkyLine

Aluminum sliding doors that discreetly connect the interior with the area surrounding the place of residence. The frame profiles are hidden in the walls, ceiling and floor, and the sash profiles in the lower and upper part of the frame. The view is not obscured by the post, which is only 25 mm wide.

SkyLine is a solution based on very narrow profiles that allows you to create large-size glass walls. Choosing a drive with an actuator or locking on the post makes the sash profiles invisible also on the sides of the sliding door. Thanks to this, the structures allow you to fully enjoy the observation of the surroundings of the house.

SkyLine is a solution based on very narrow profiles that allows you to create large-size glass walls. Choosing a drive with an actuator or locking on the post makes the sash profiles invisible also on the sides of the sliding door. Thanks to this, the structures allow you to fully enjoy the observation of the surroundings of the house.

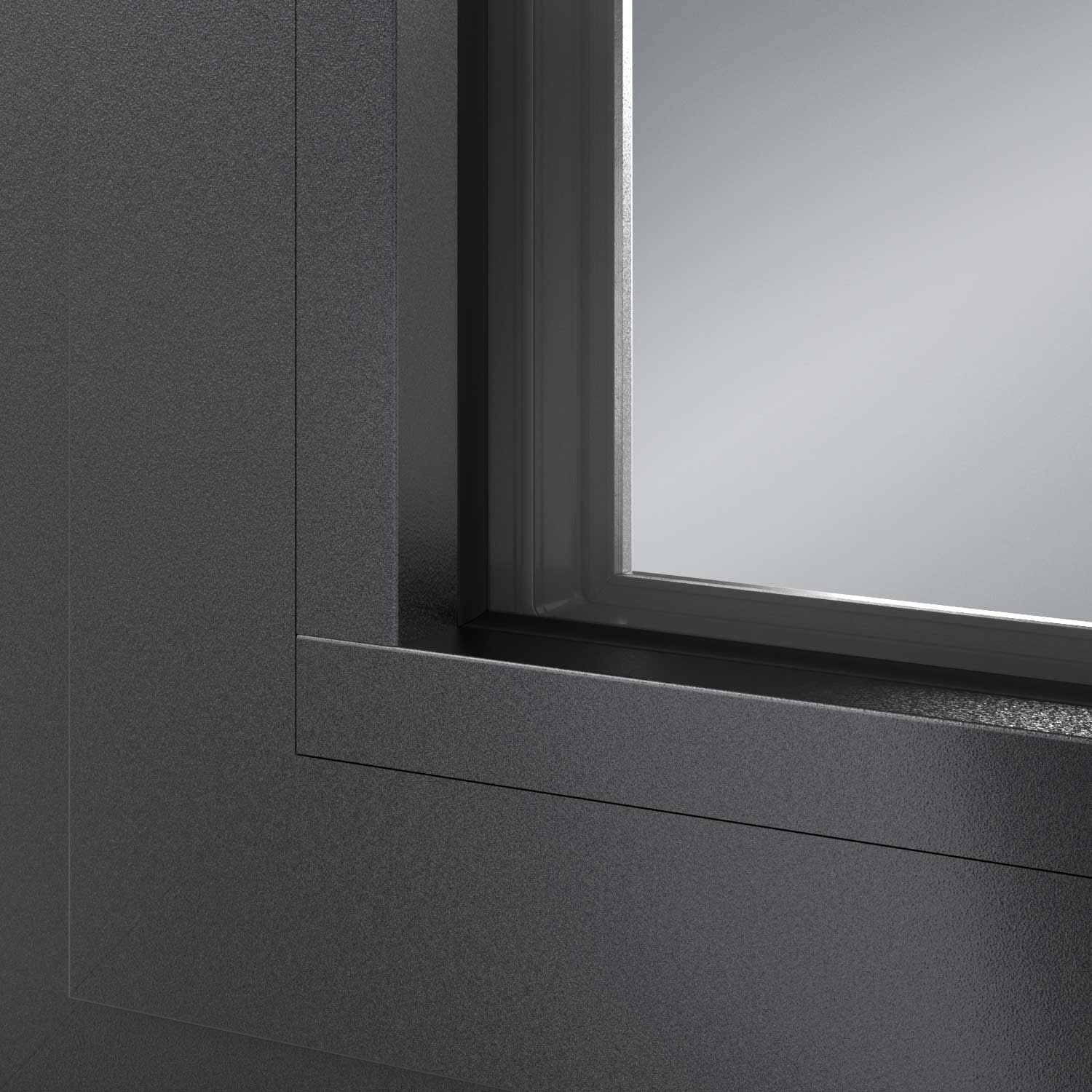

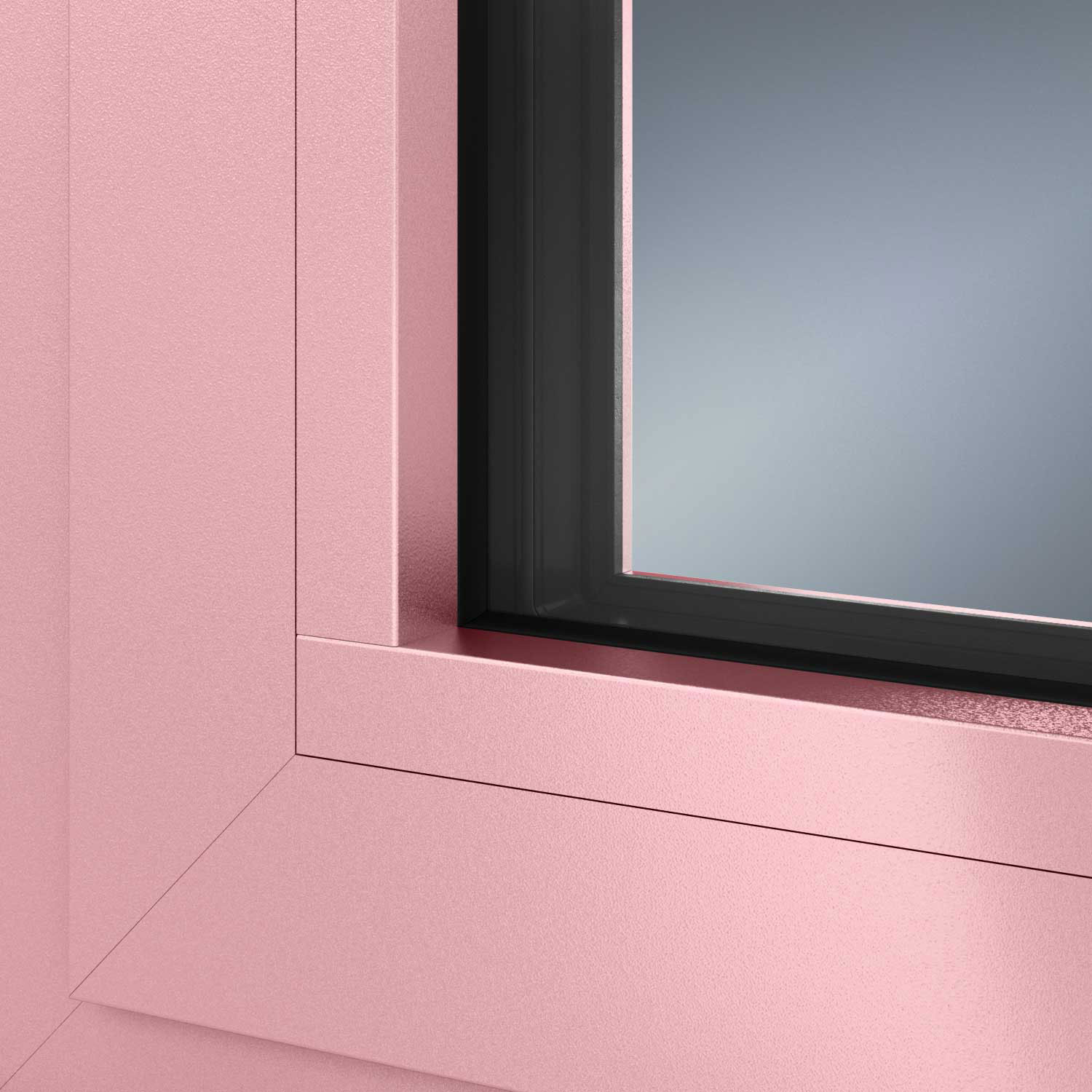

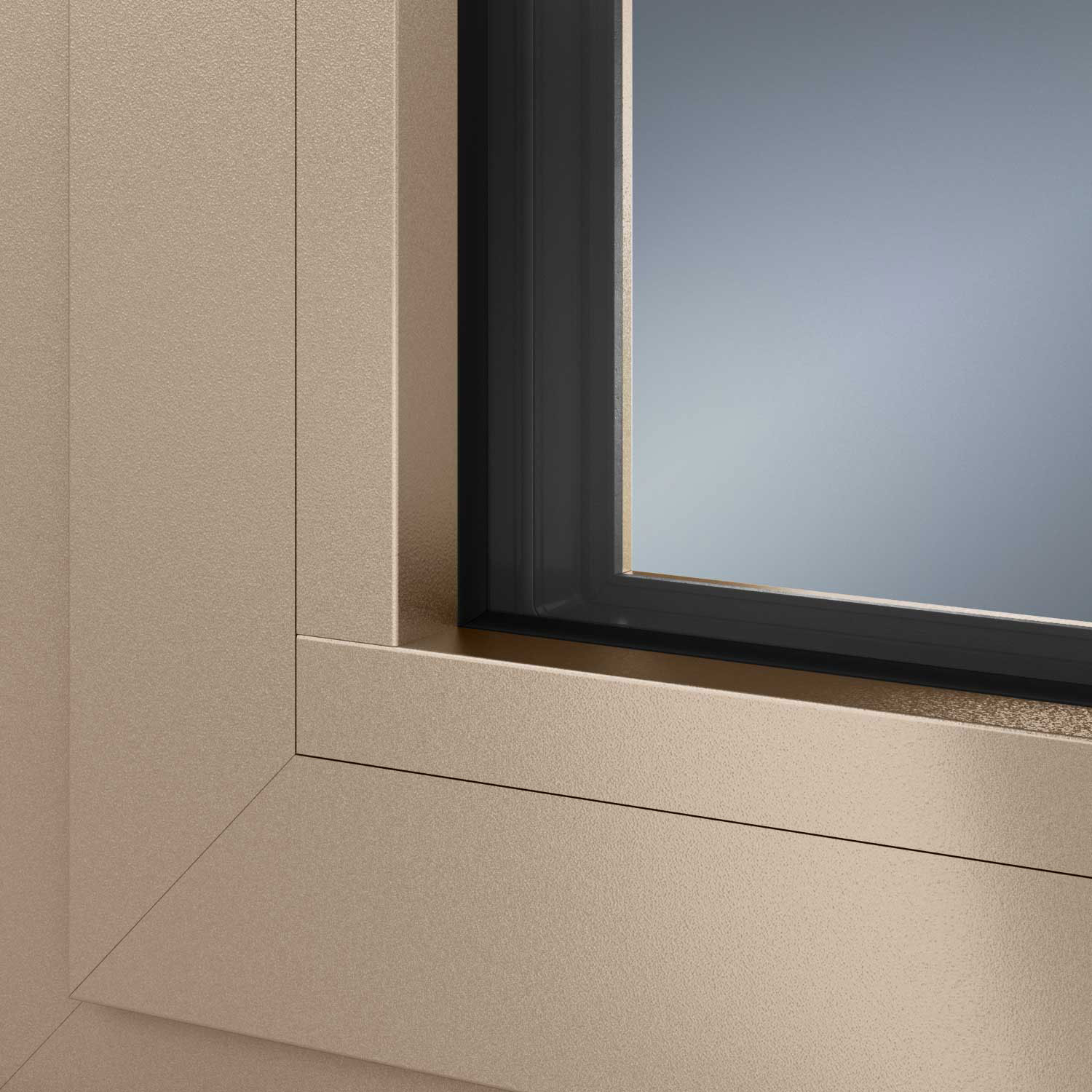

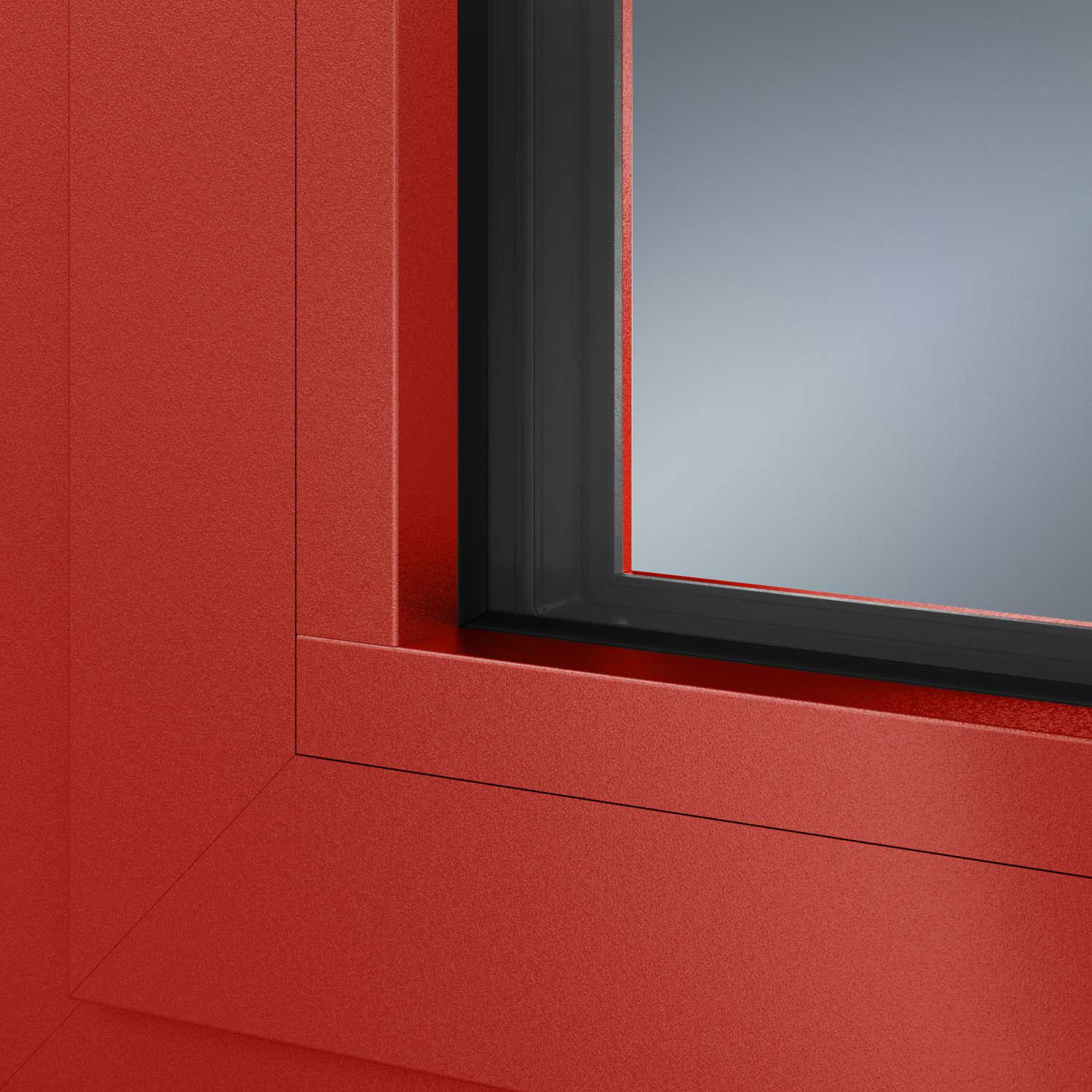

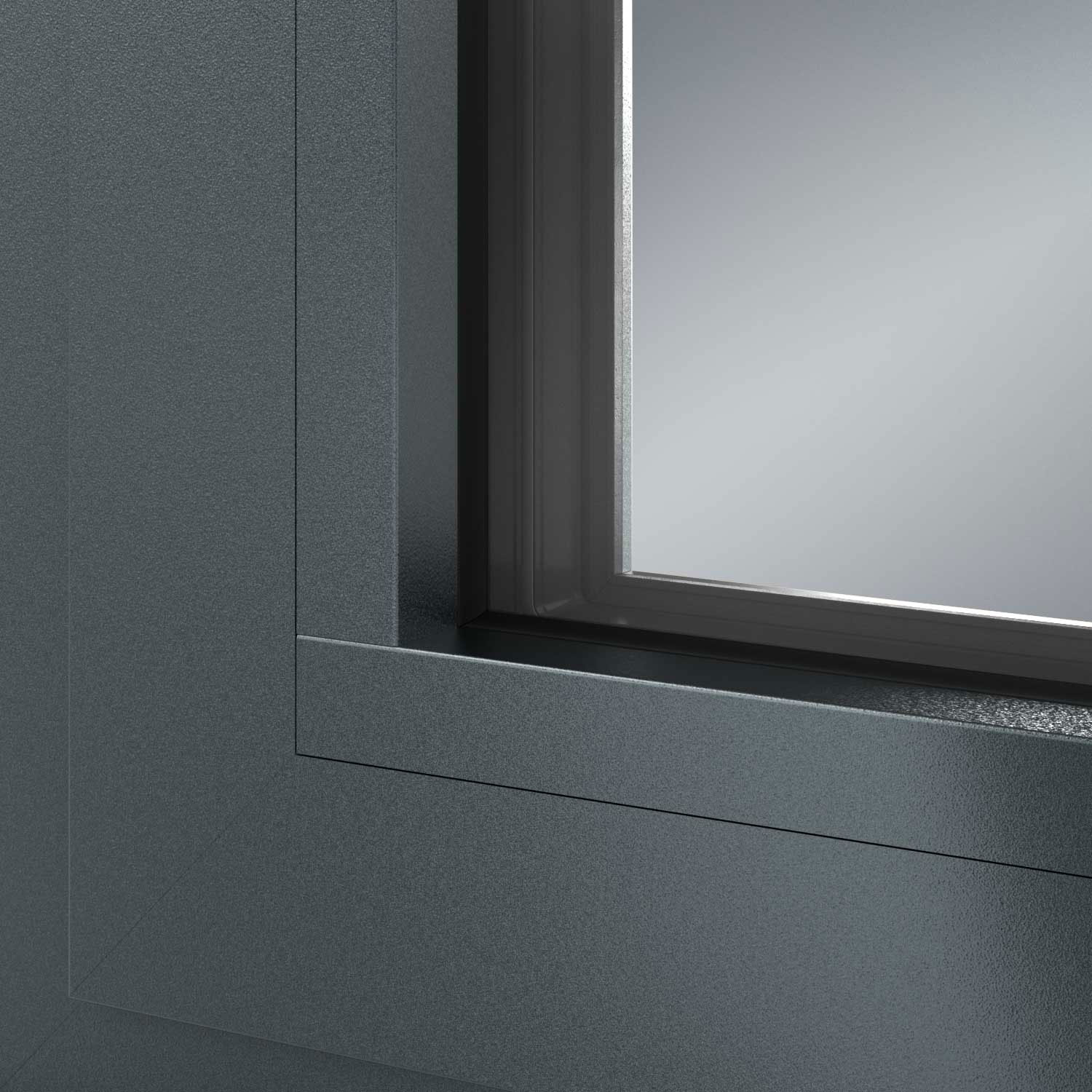

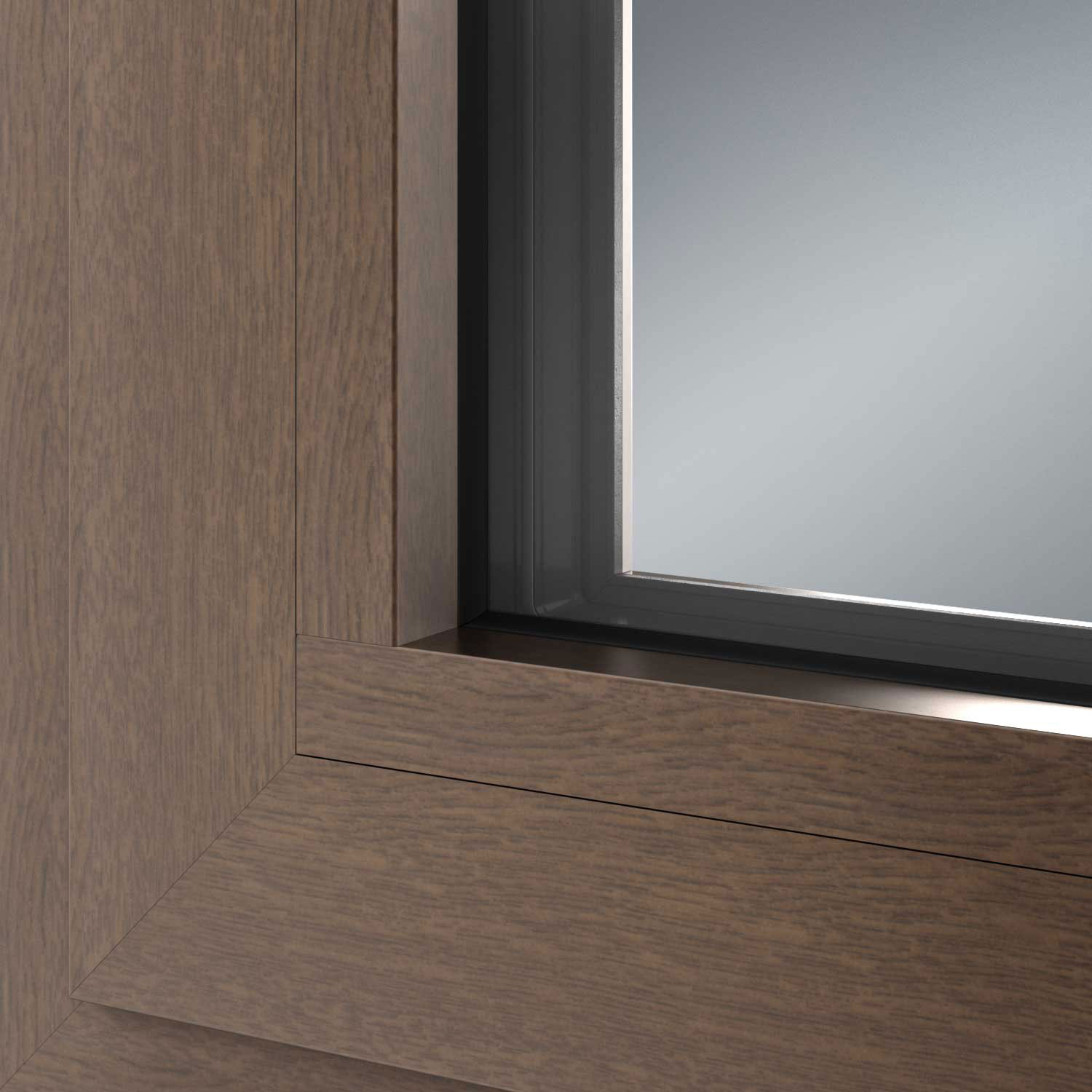

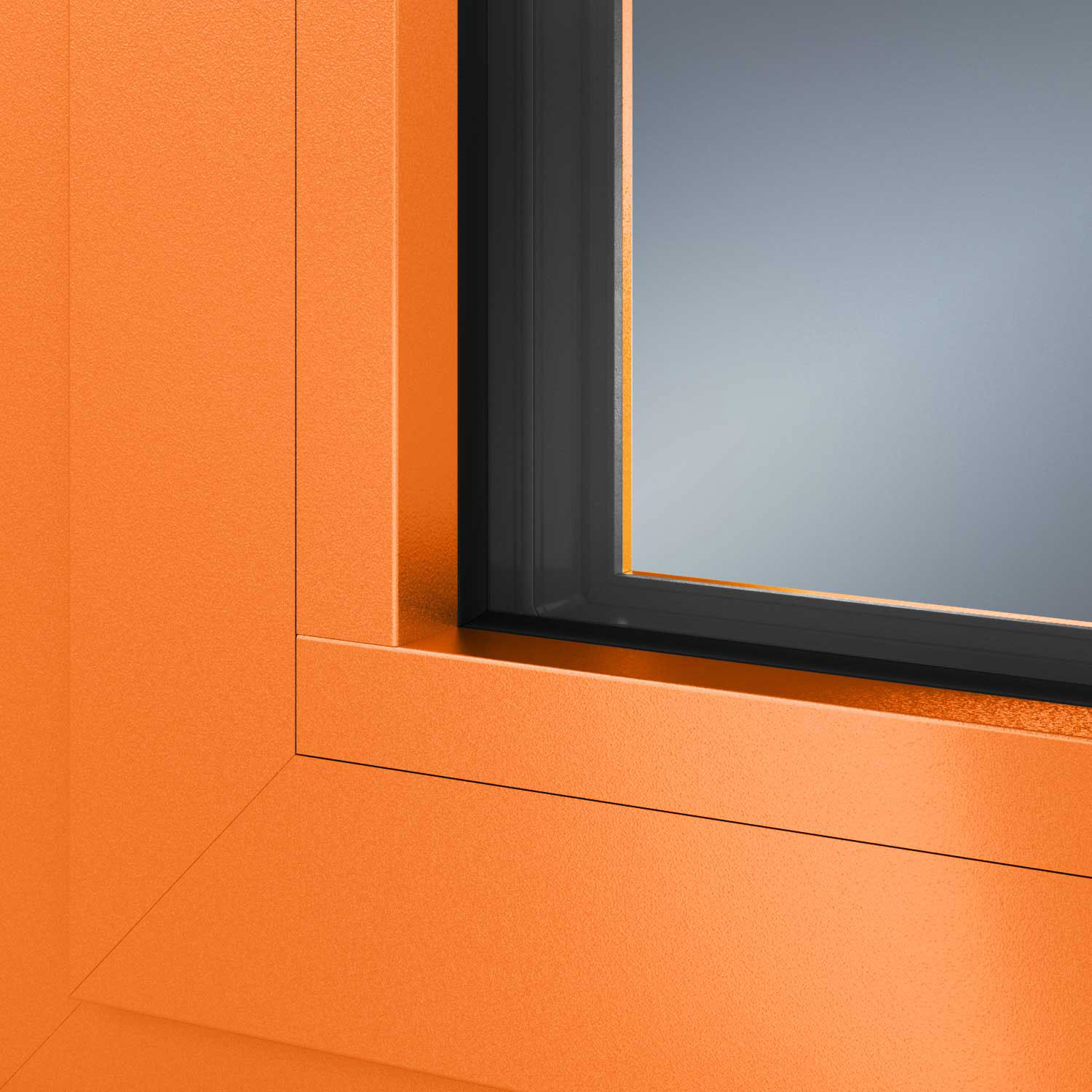

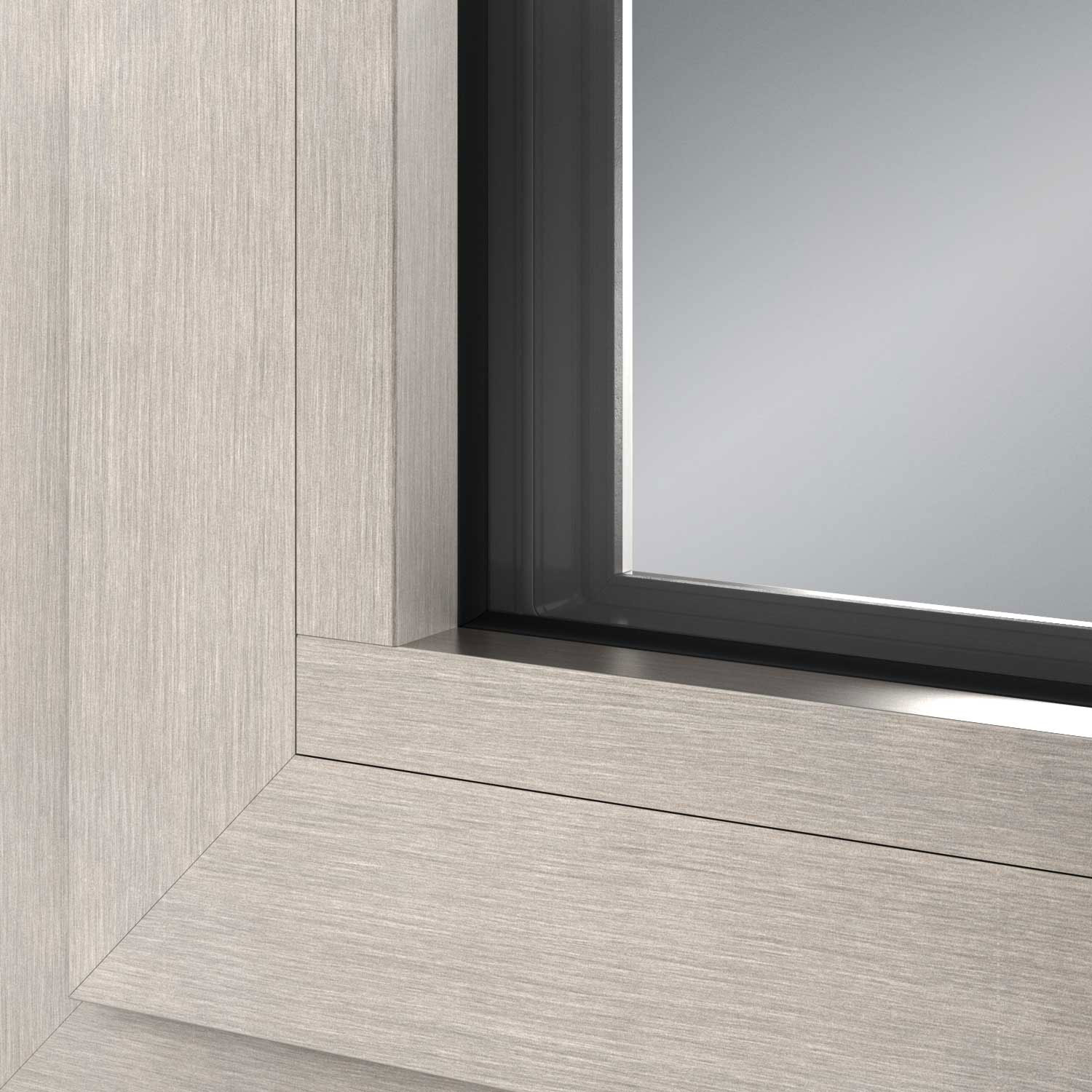

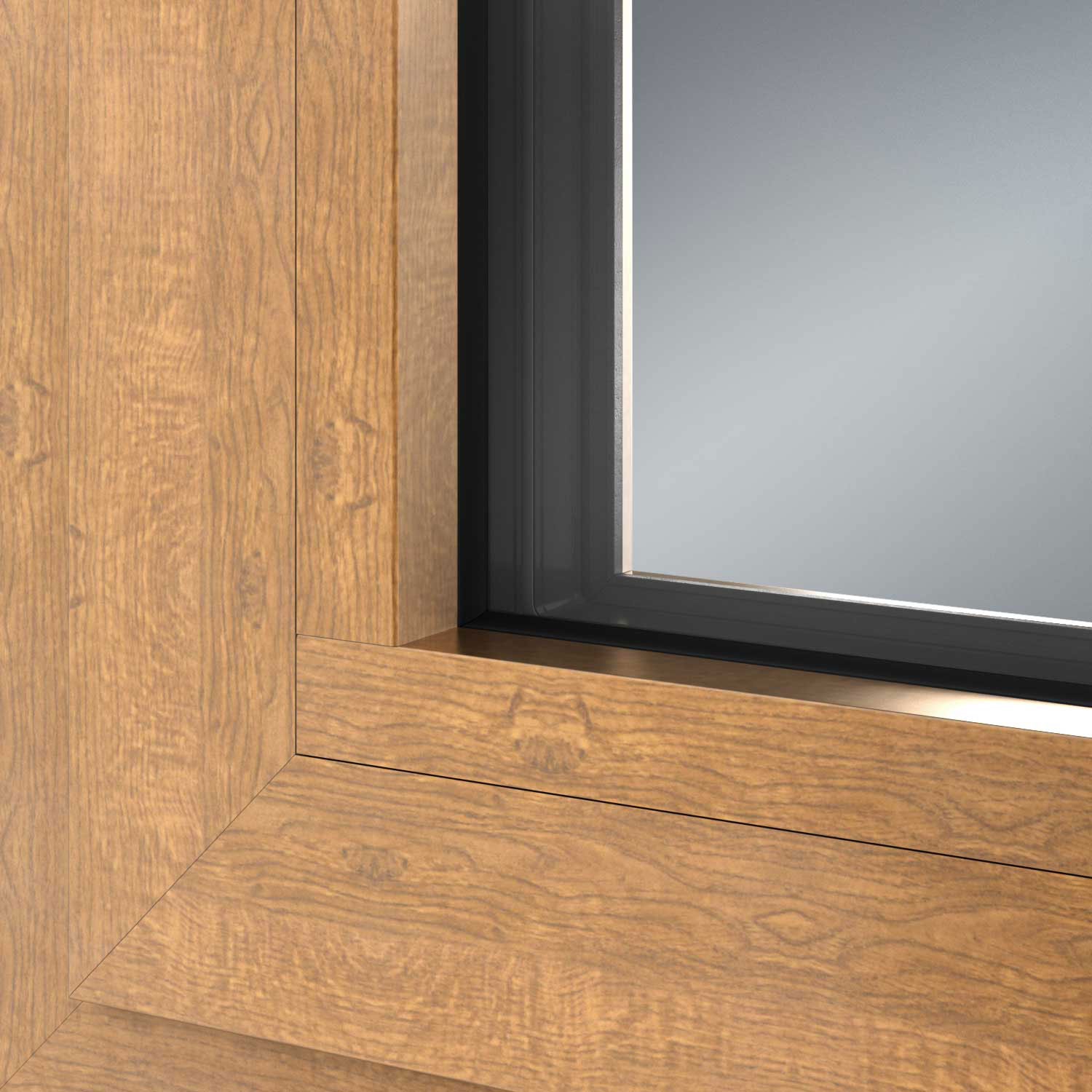

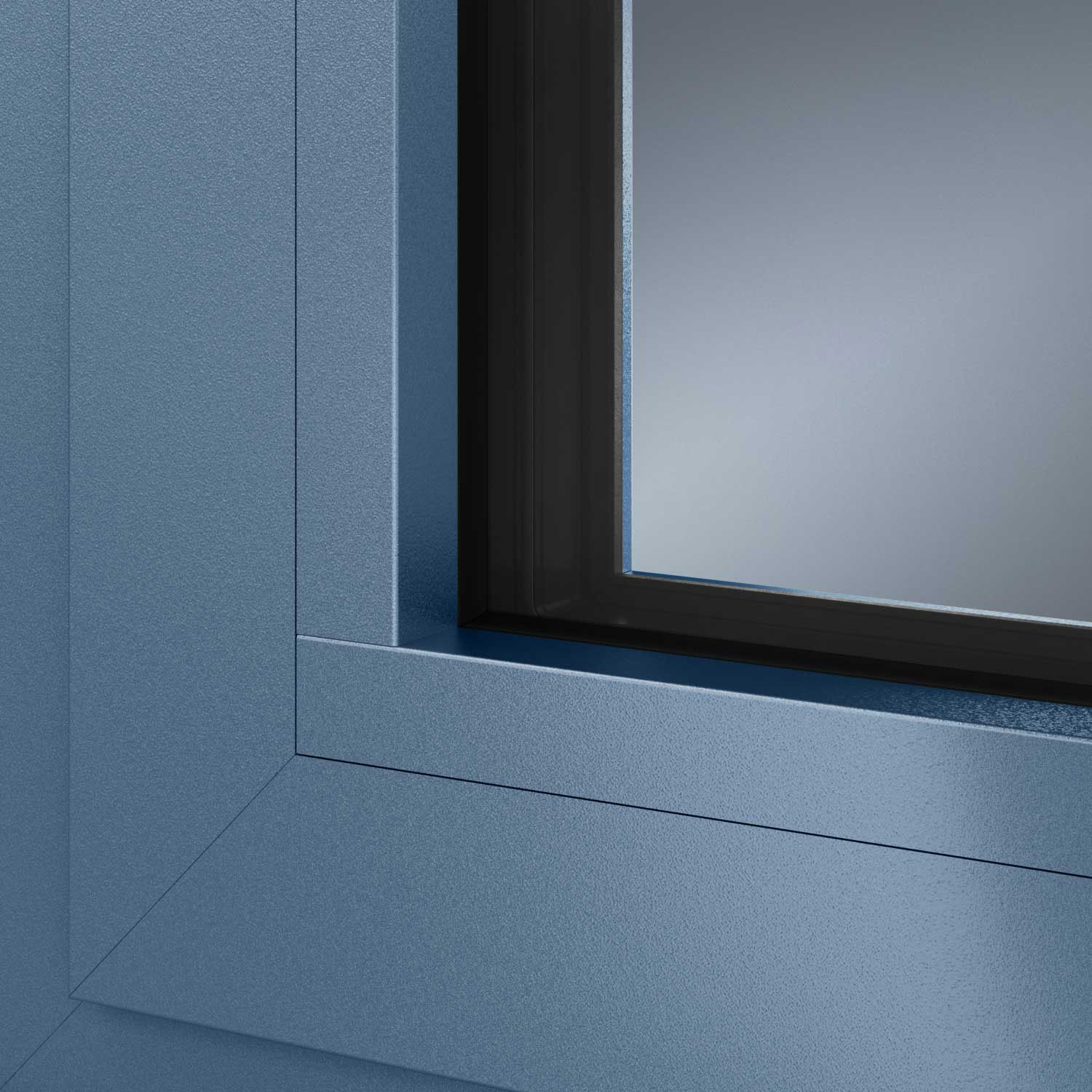

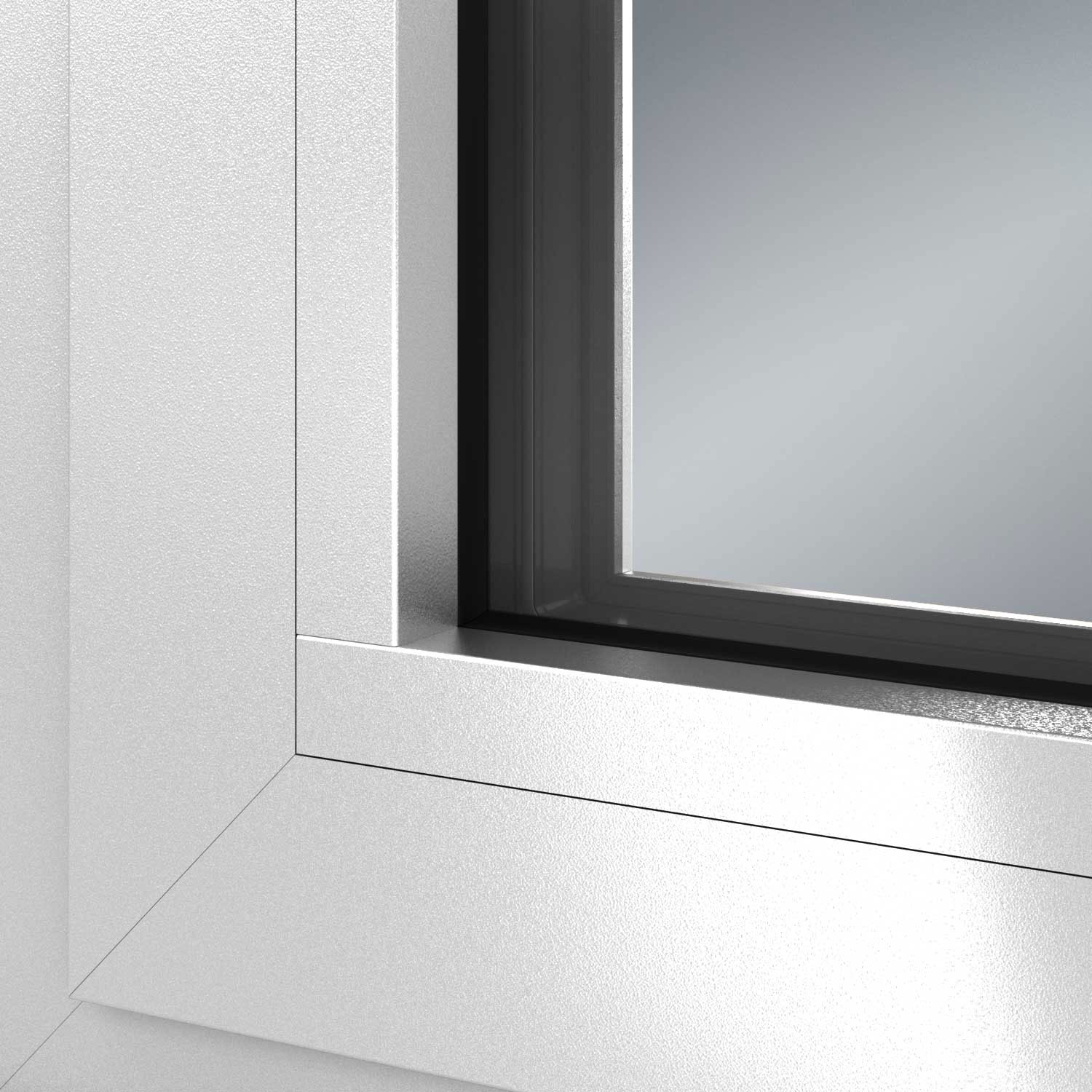

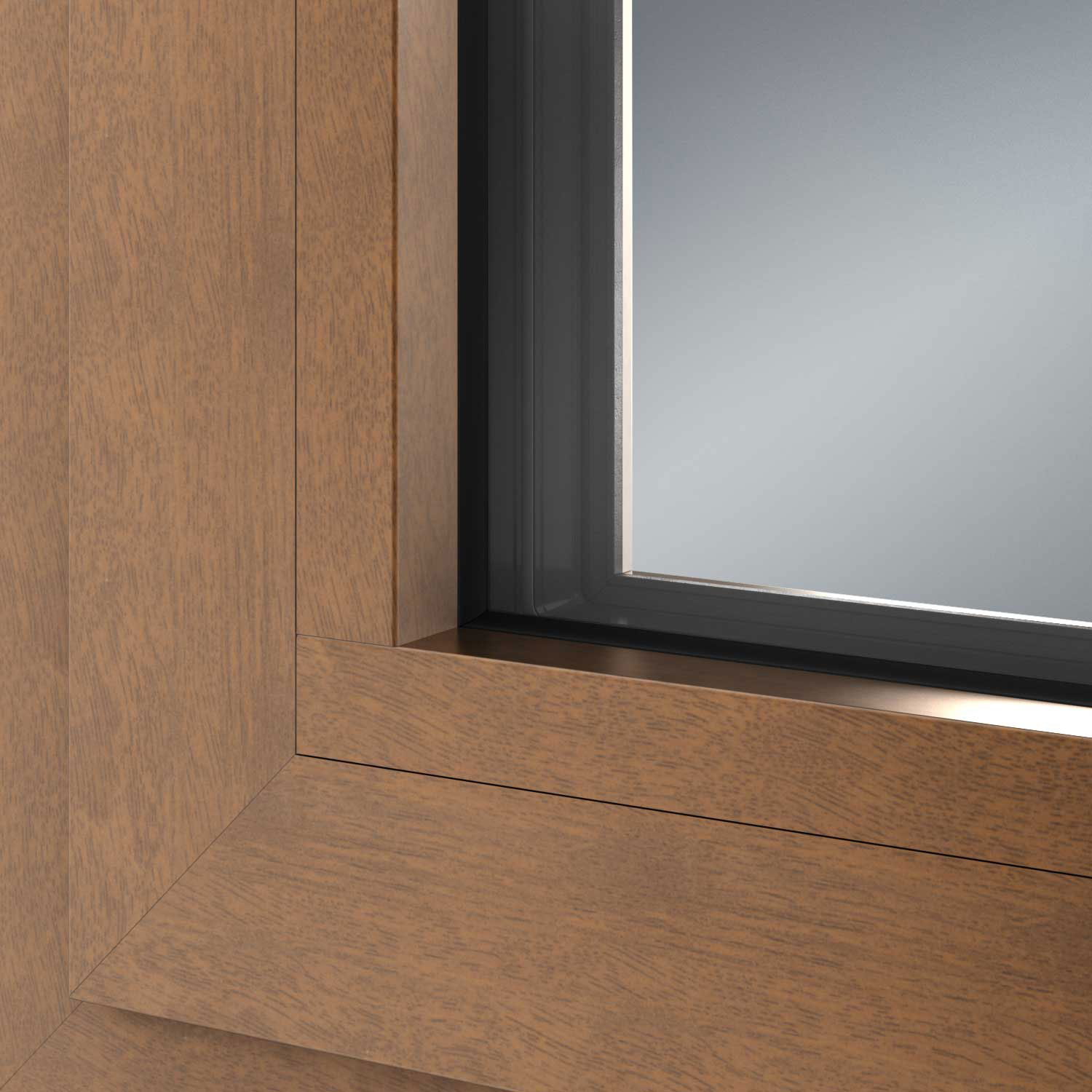

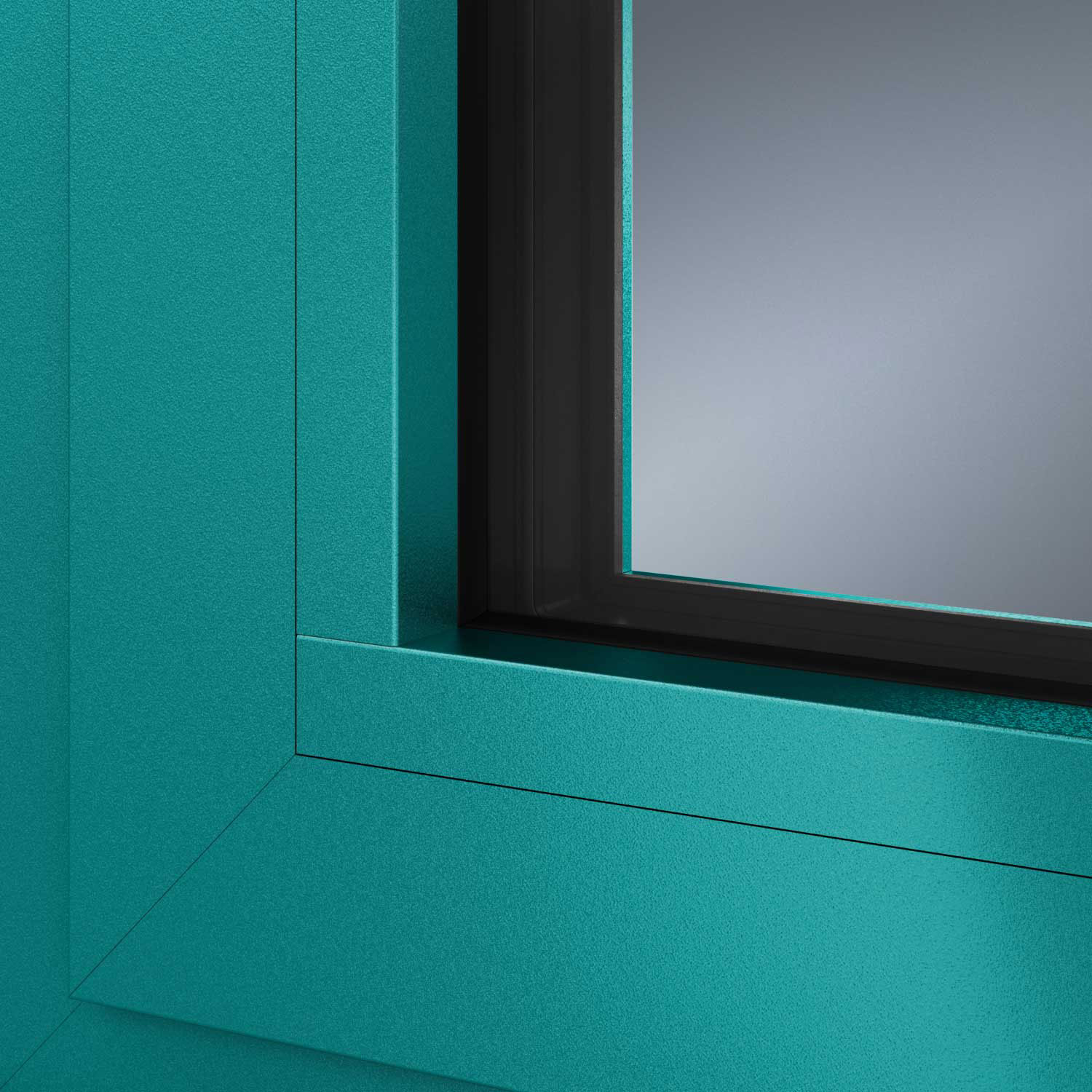

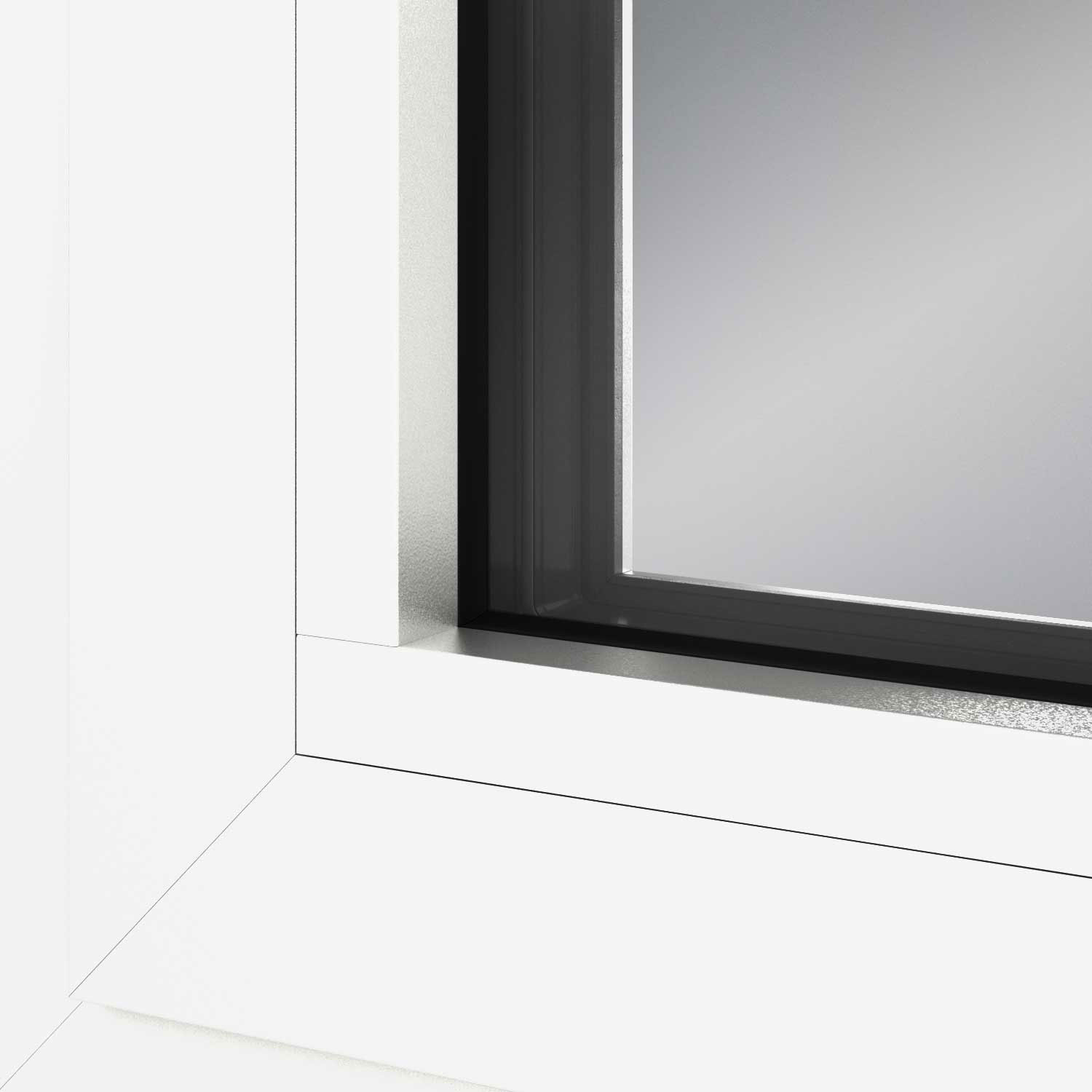

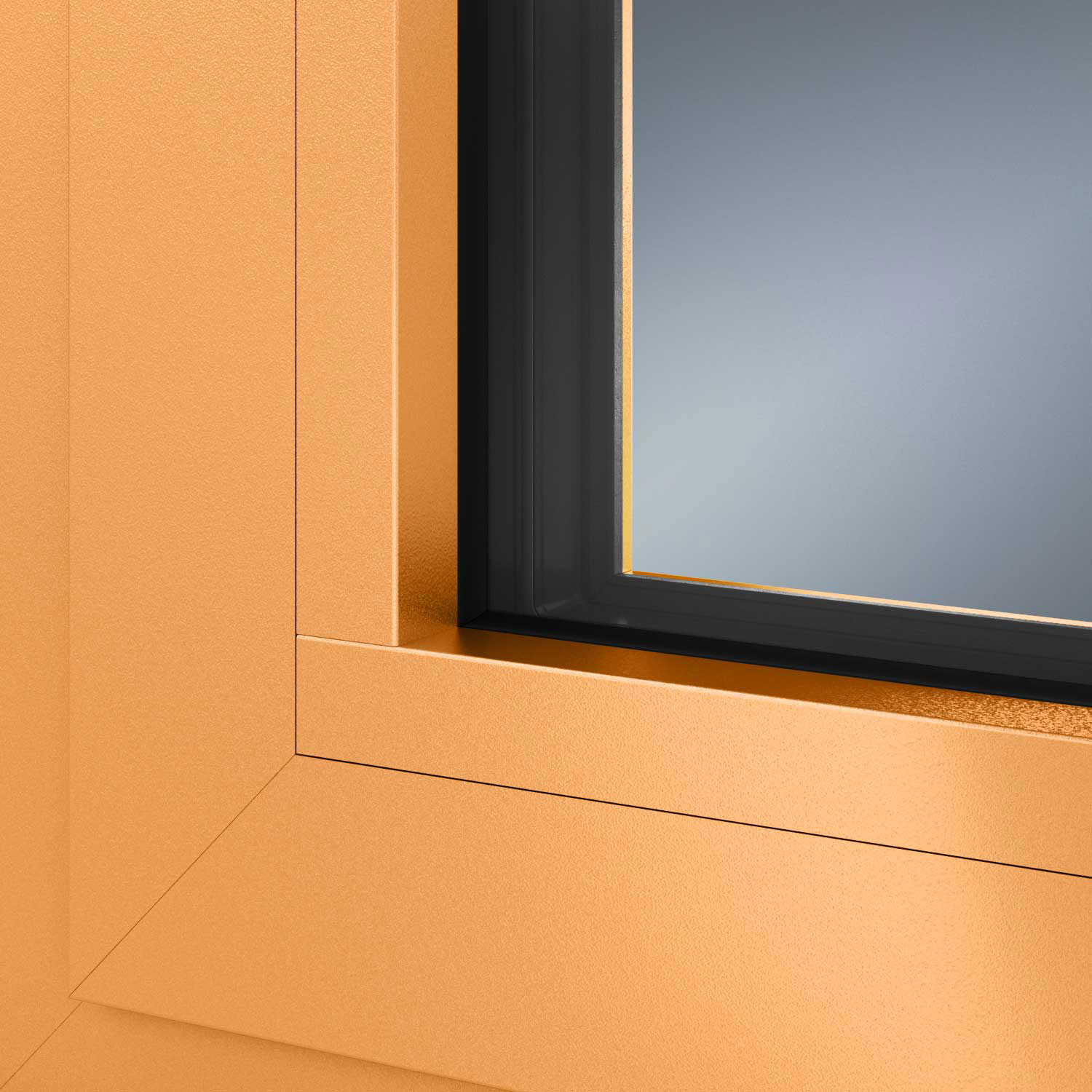

Colour

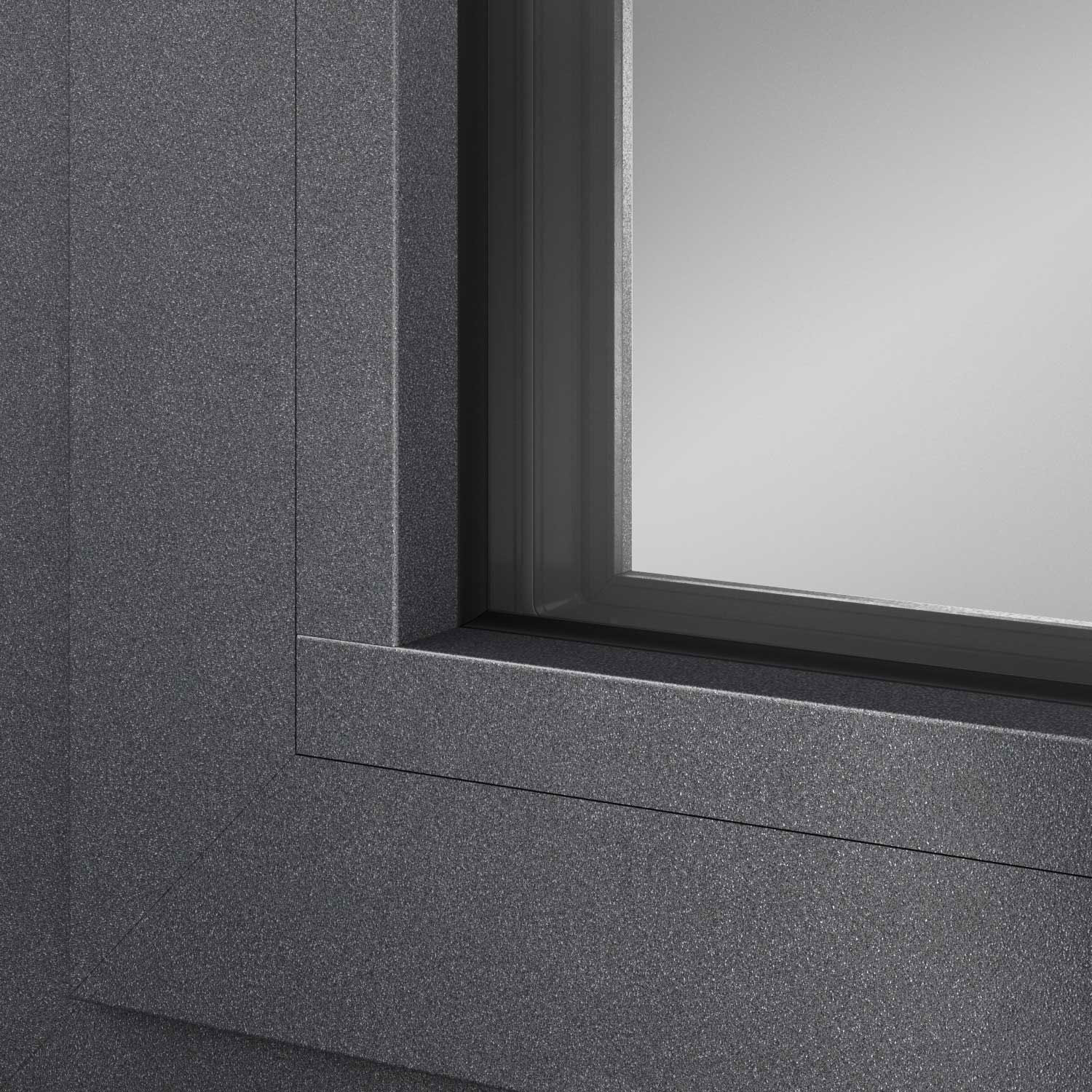

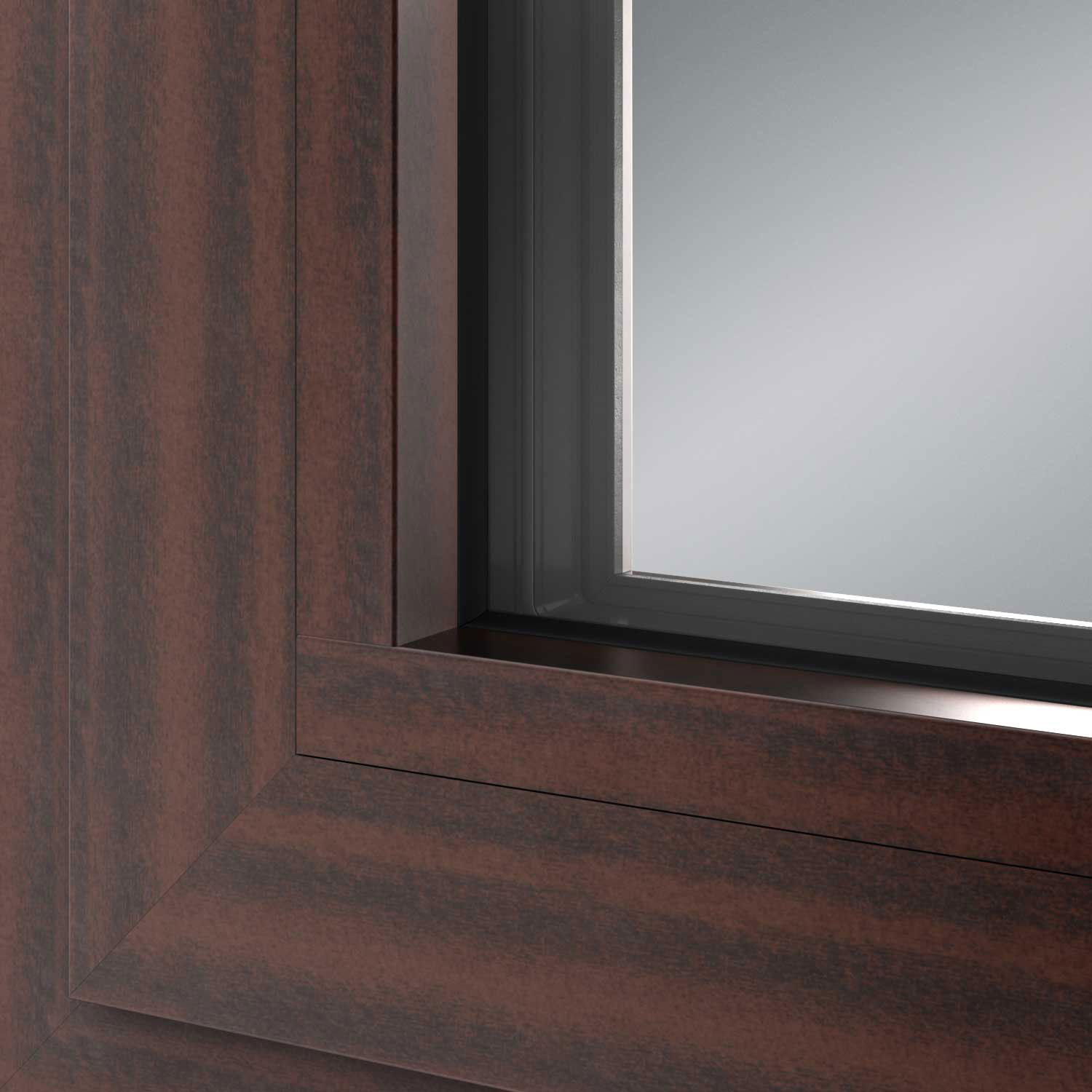

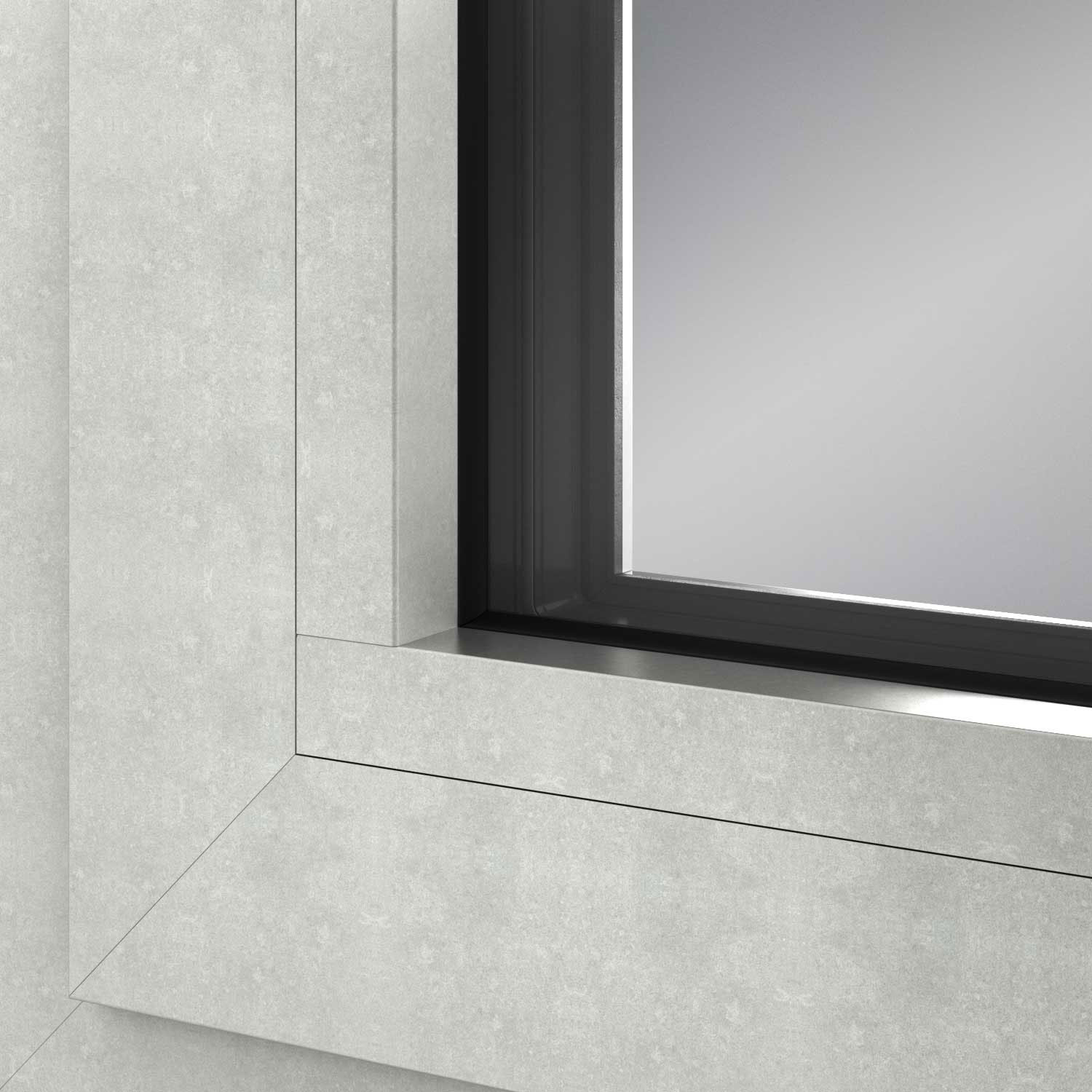

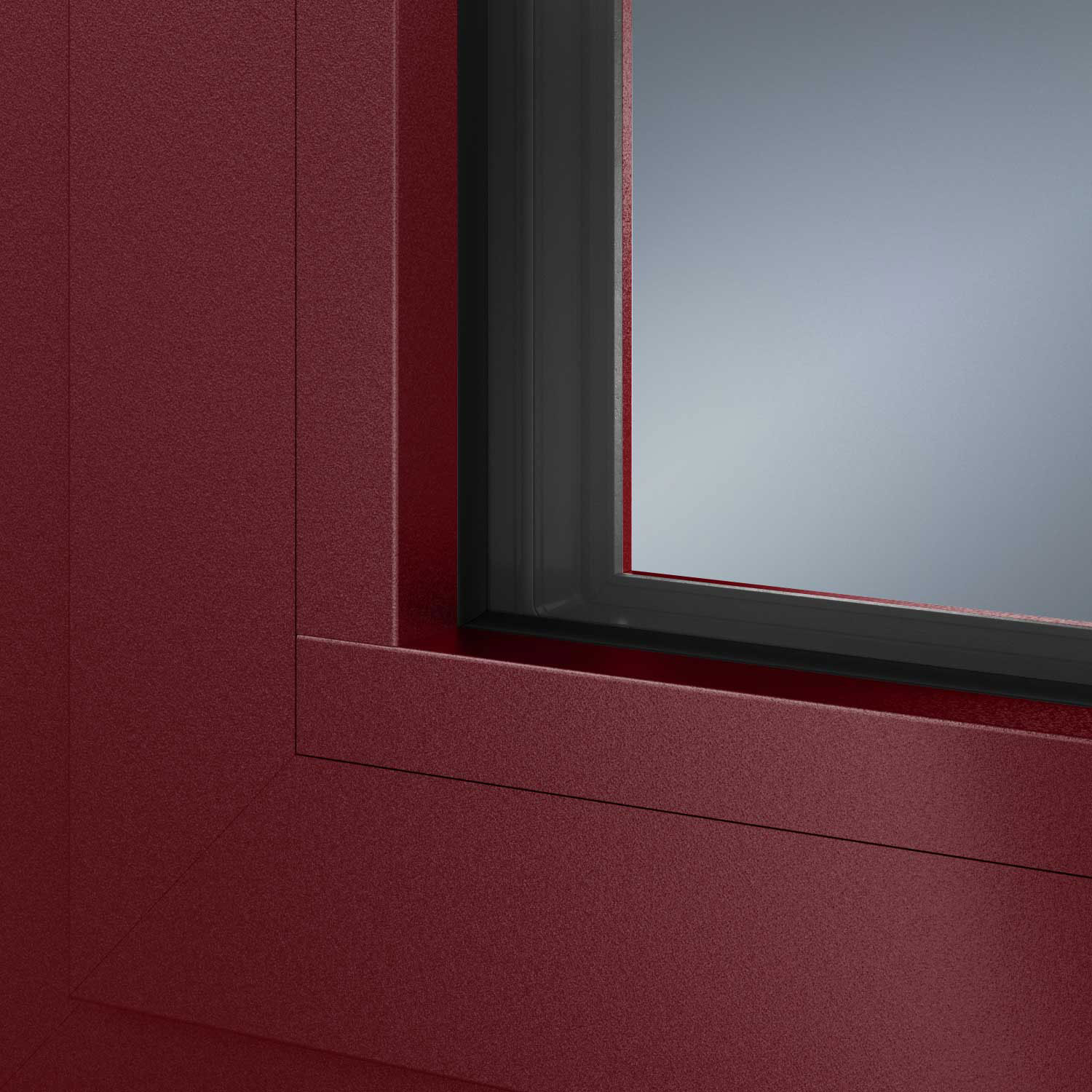

Powder coating is a process in which powder paint is applied to an aluminium profile using the electrostatic spray method. The powder-coated element is placed in an oven heated to a temperature of about 200°C. This causes the powder to melt and then the coating to harden. Powder coating makes it possible to obtain a durable and smooth coating with no defects in the form of wrinkles or stains. Wood-like colours are created by transferring the pattern from the foil (with the pigment applied to it) to aluminium profiles in the sublimation process.

Cross-sections

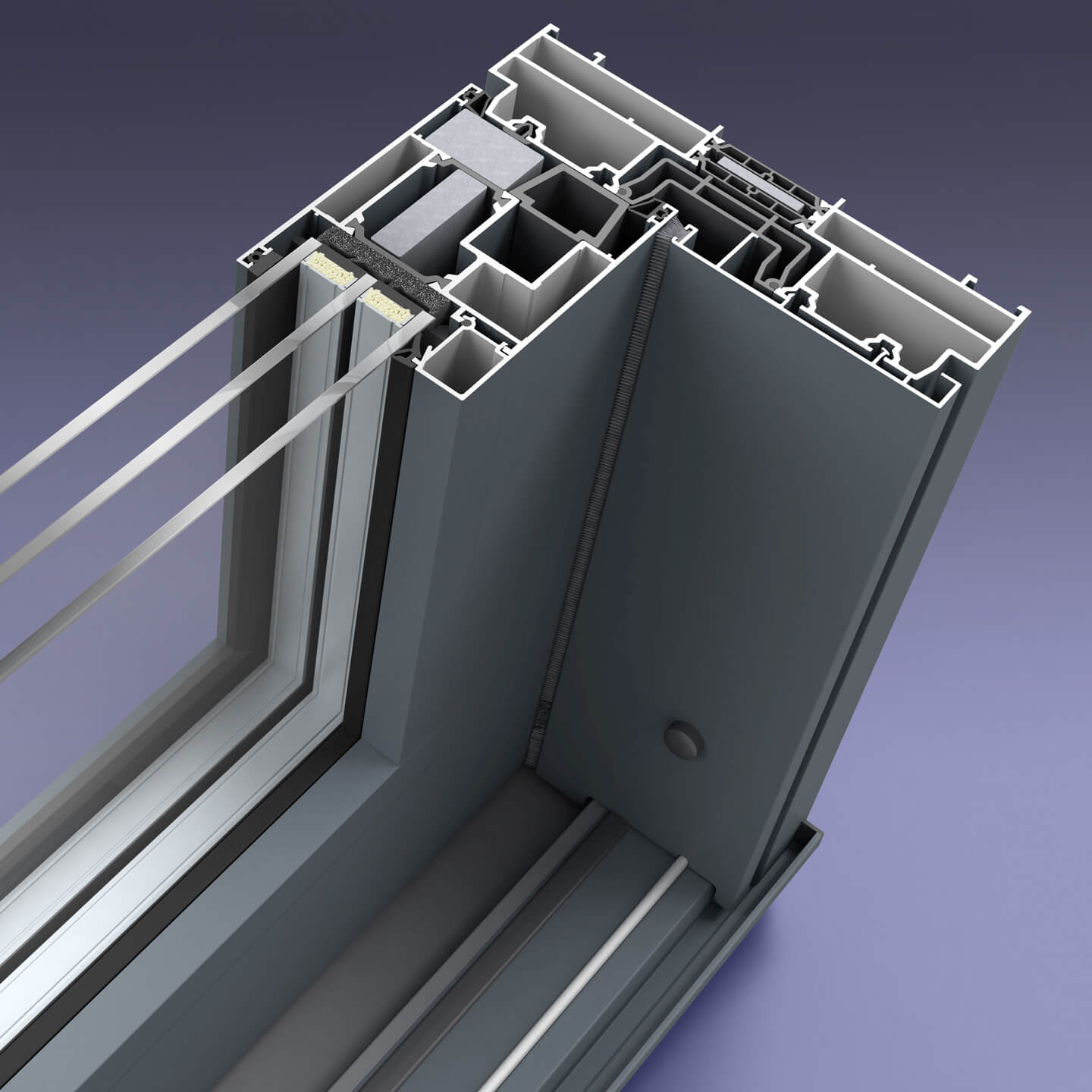

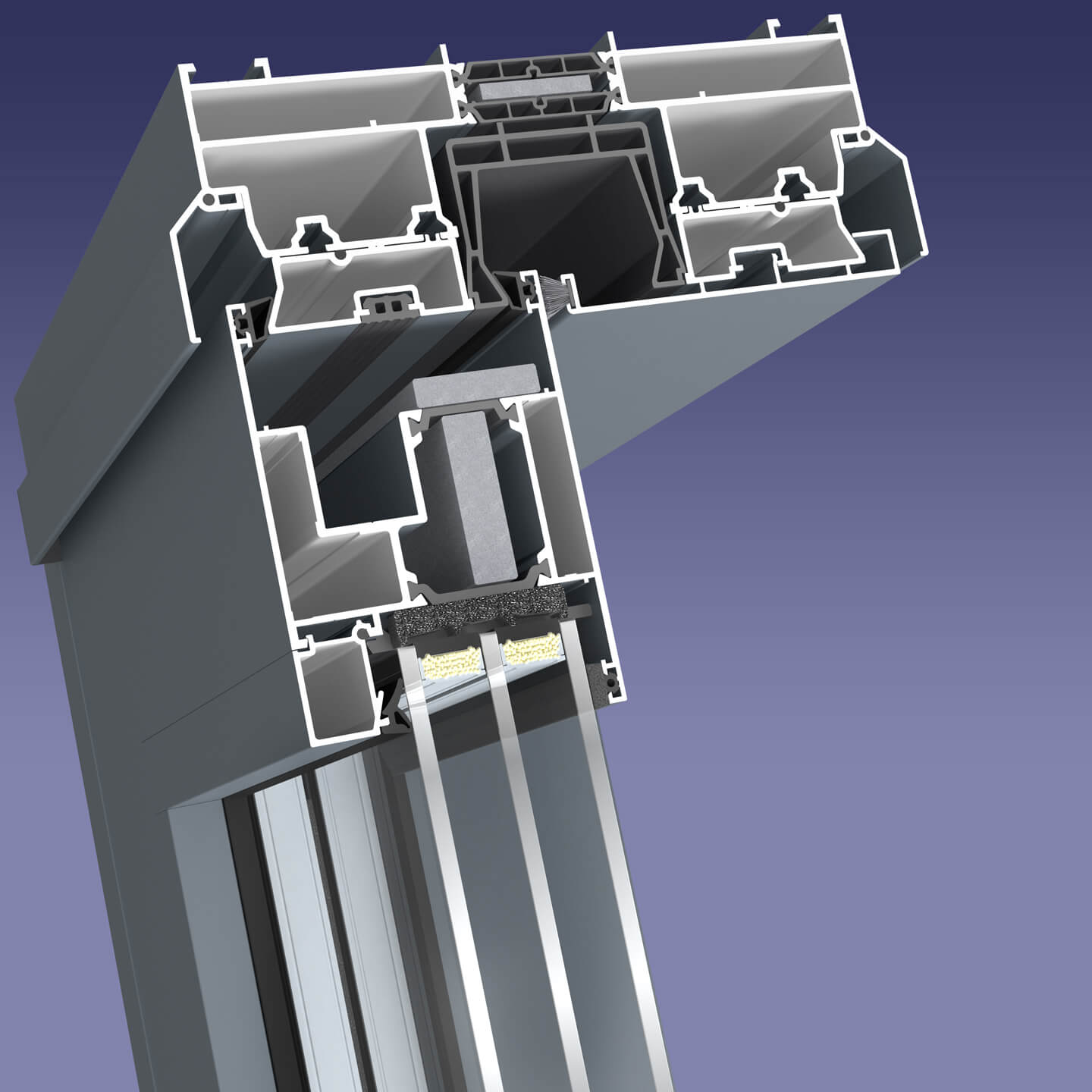

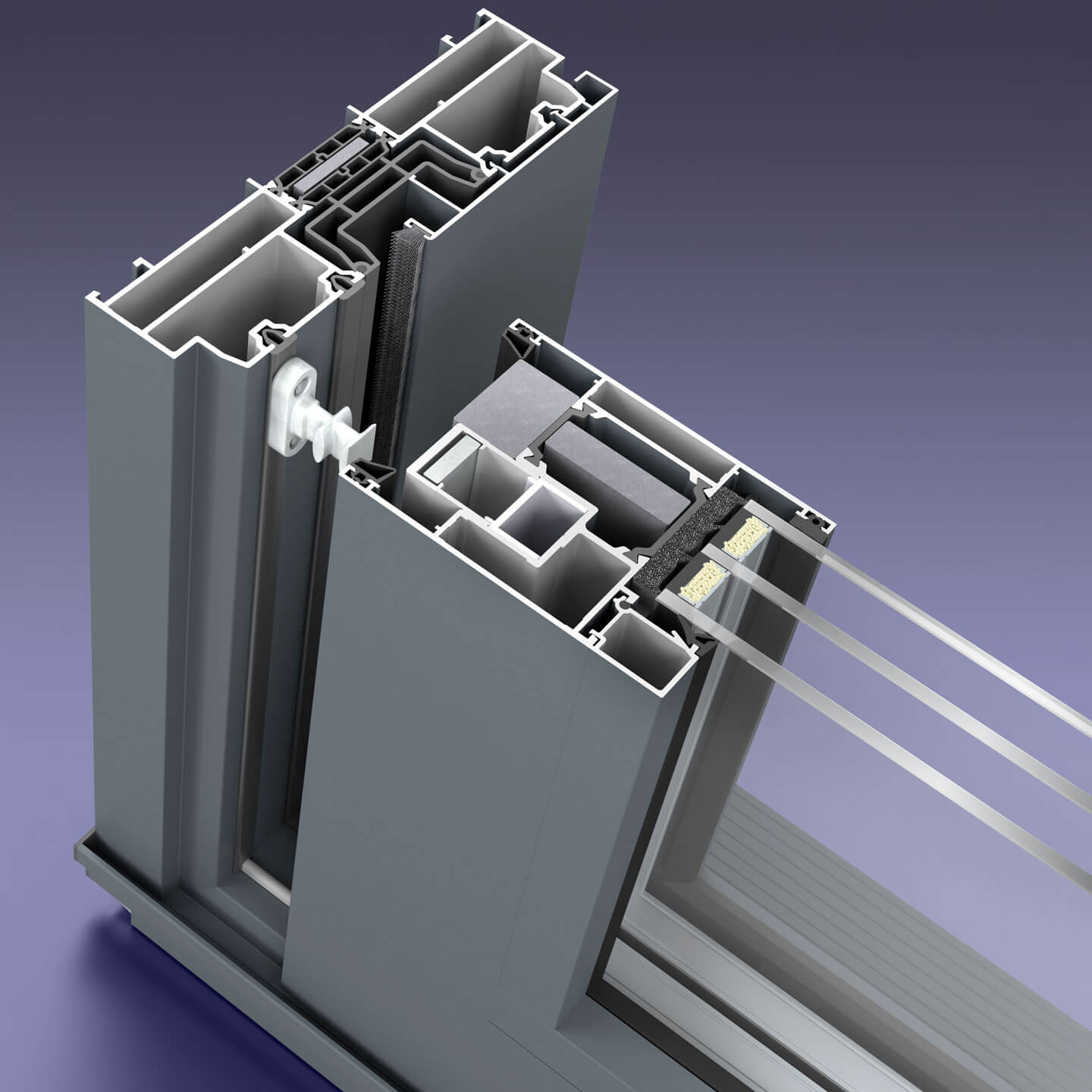

Section of Patio HST 77 lift and slide door.
Standard frame

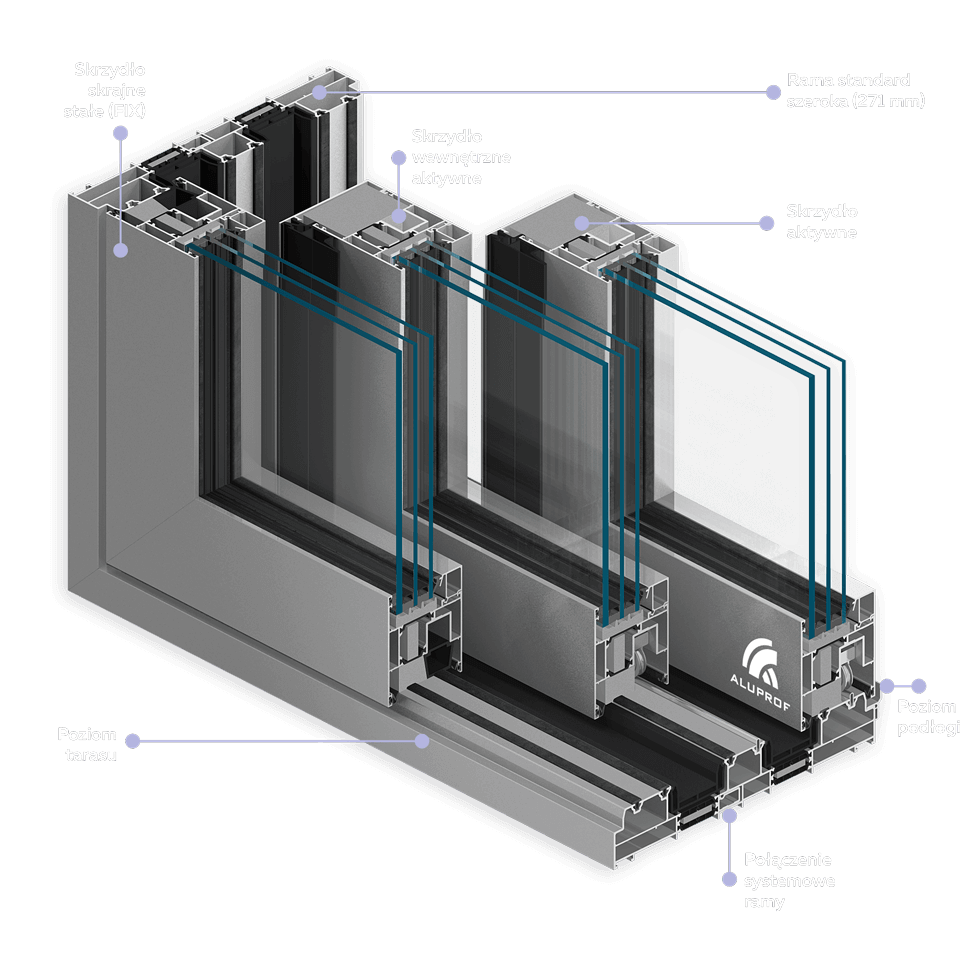

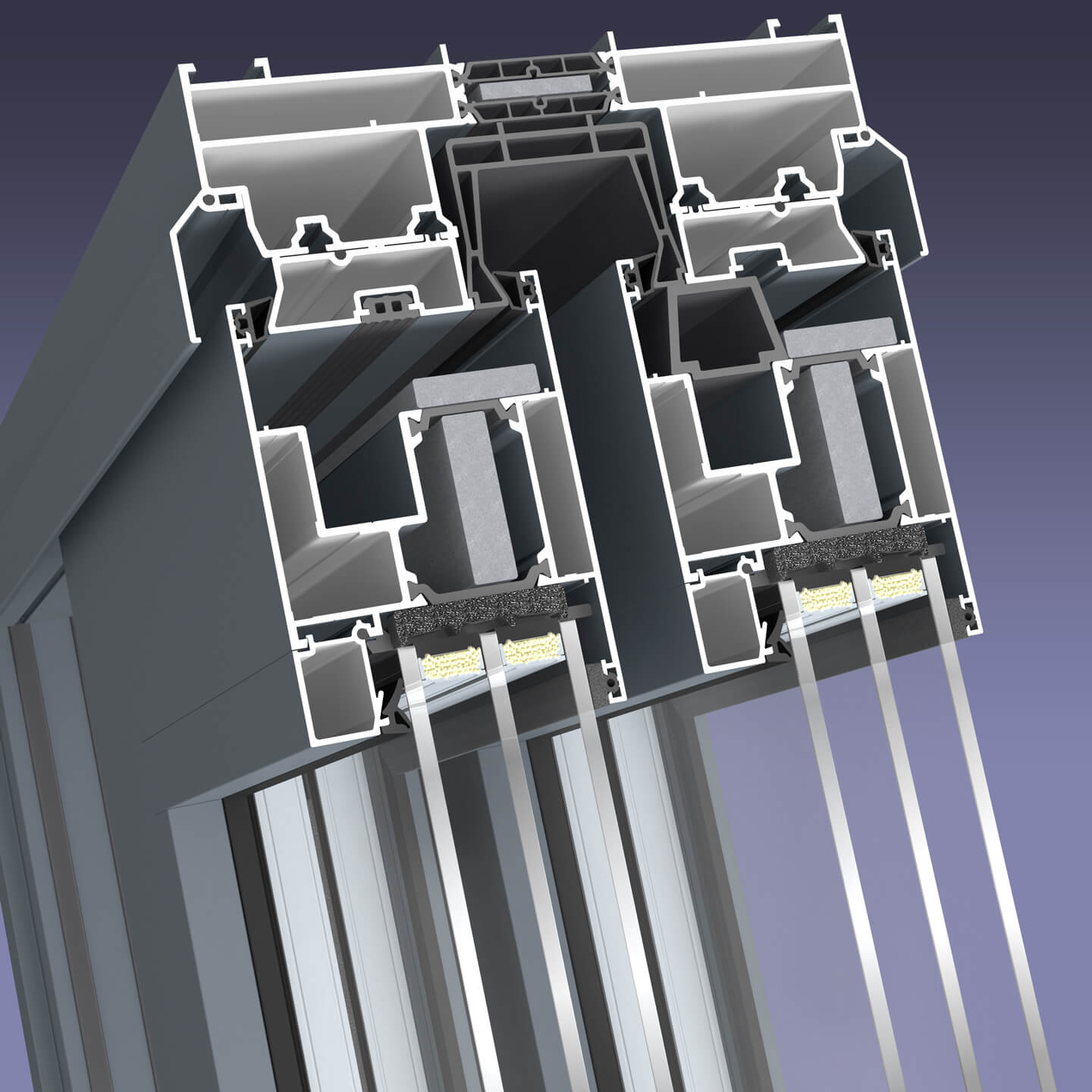

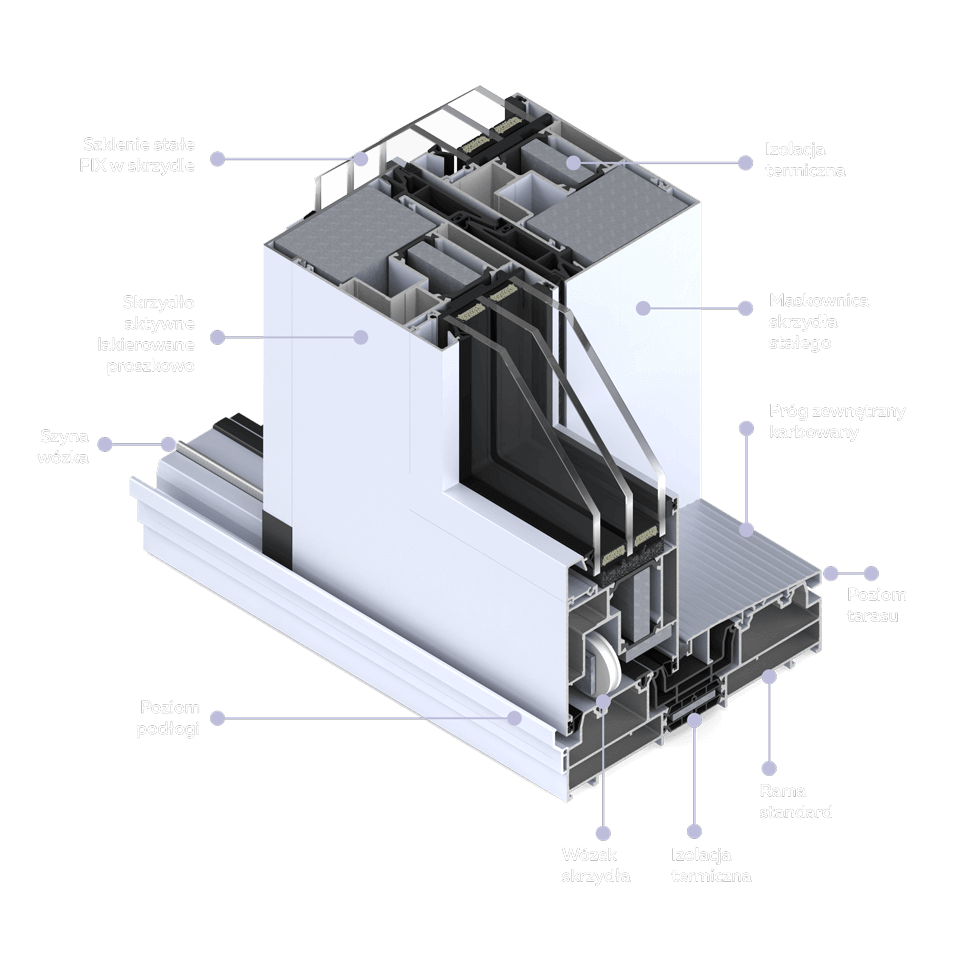

Patio HST 77 with three sashes section.
3 sashes | Standard frame

Cross-sections

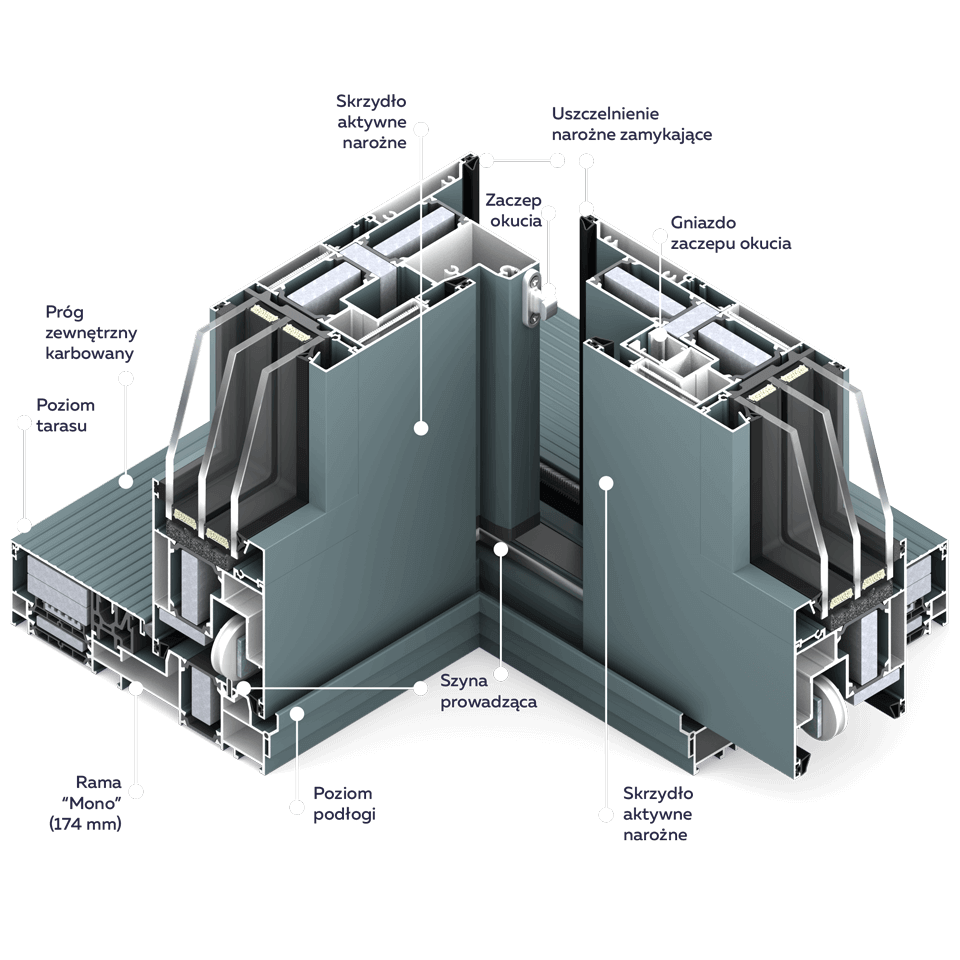

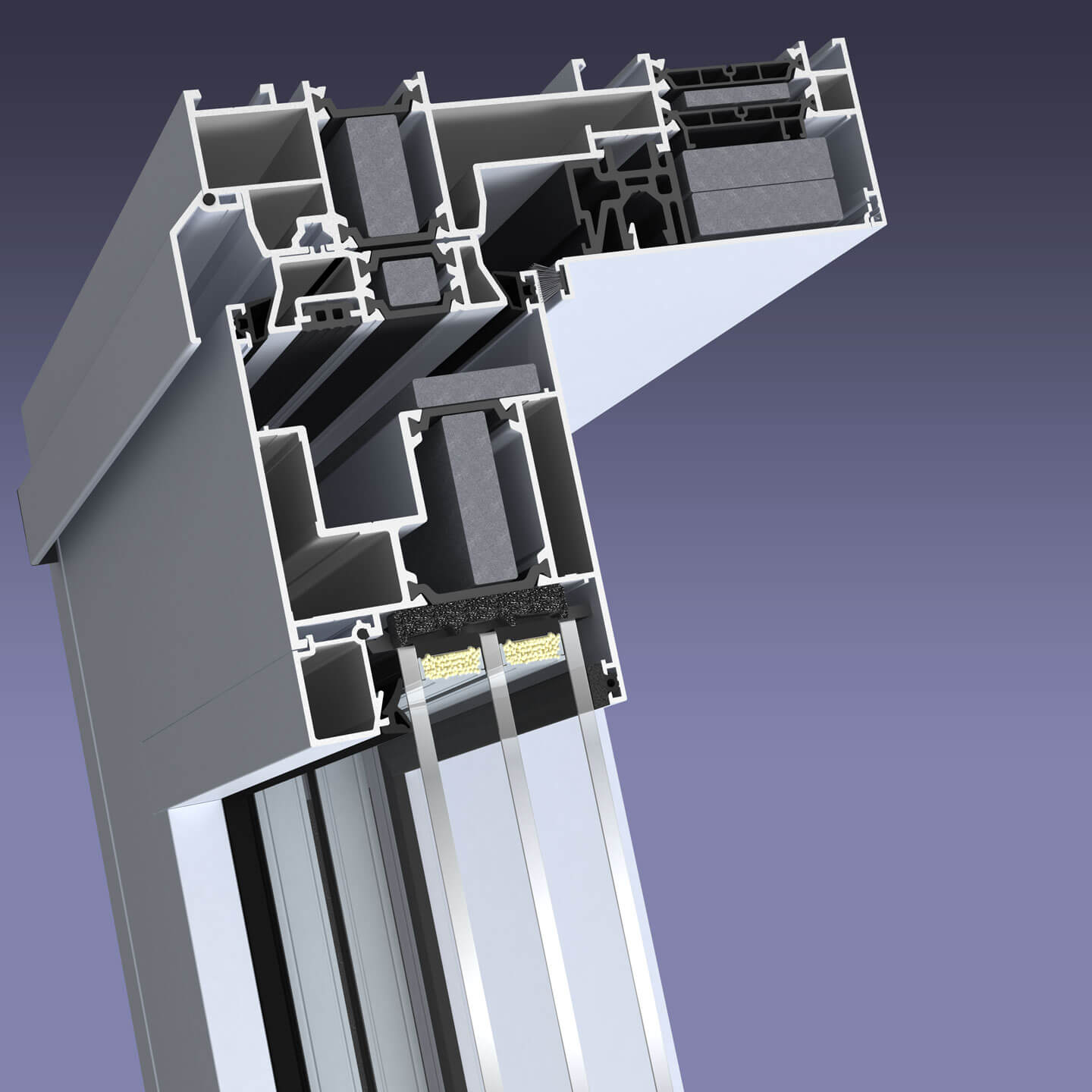

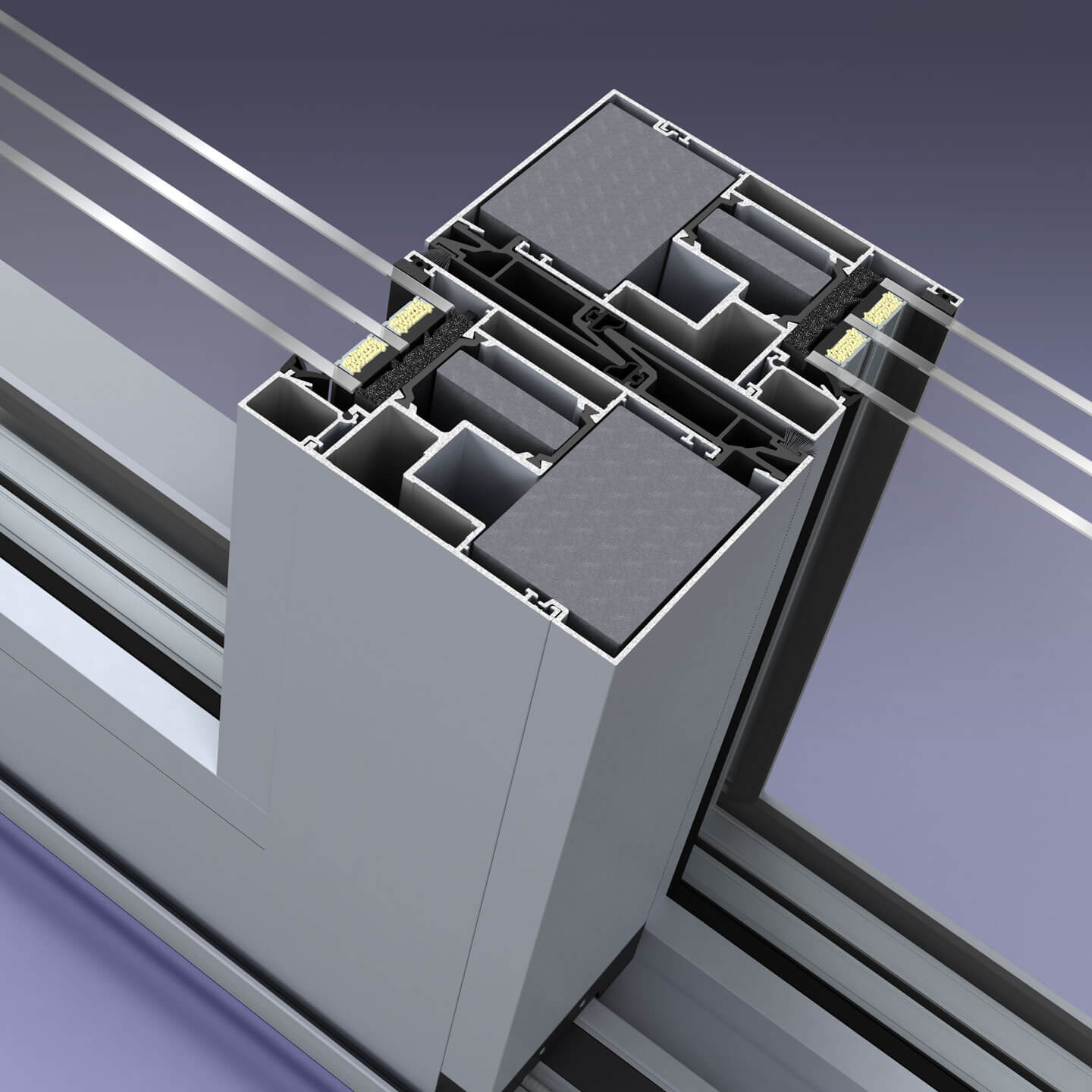

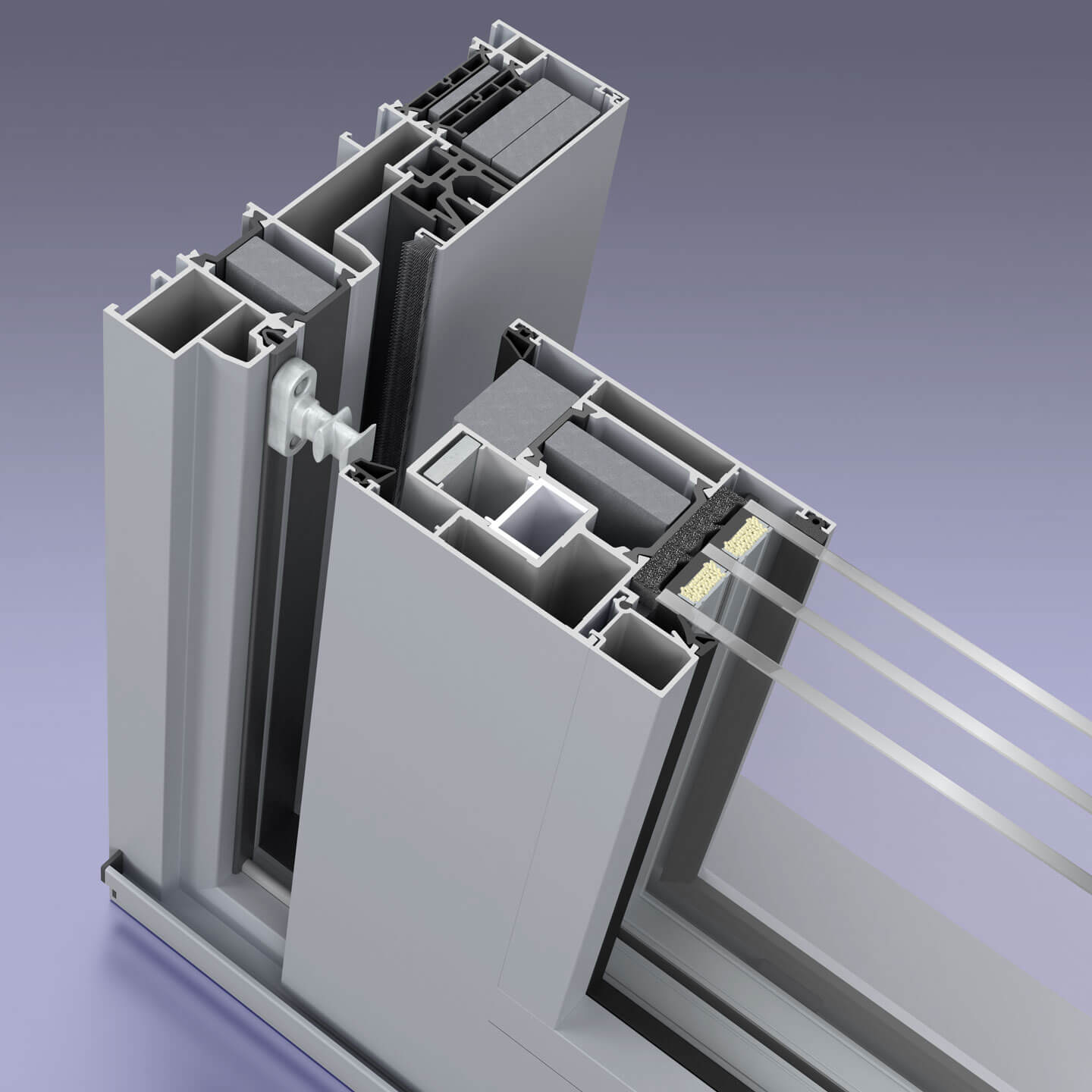

Section of the upper part of Patio HST 77 in the MONO version.
Fixed frame

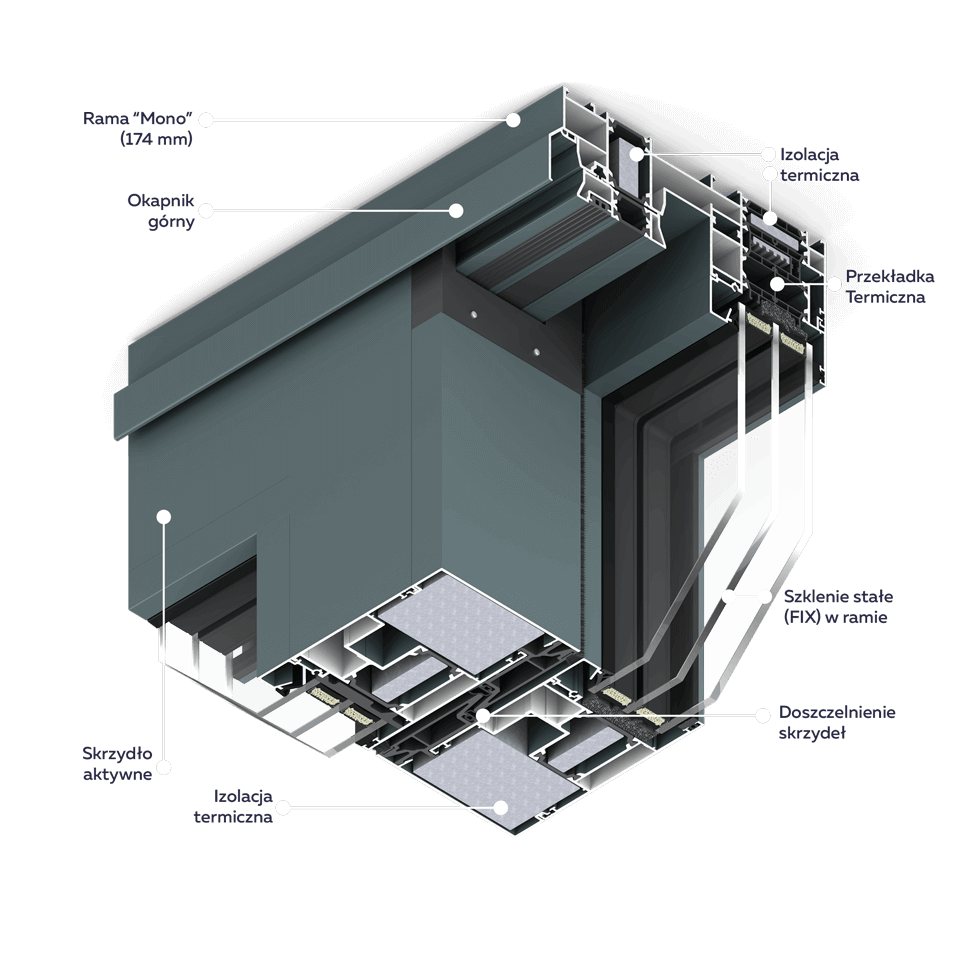

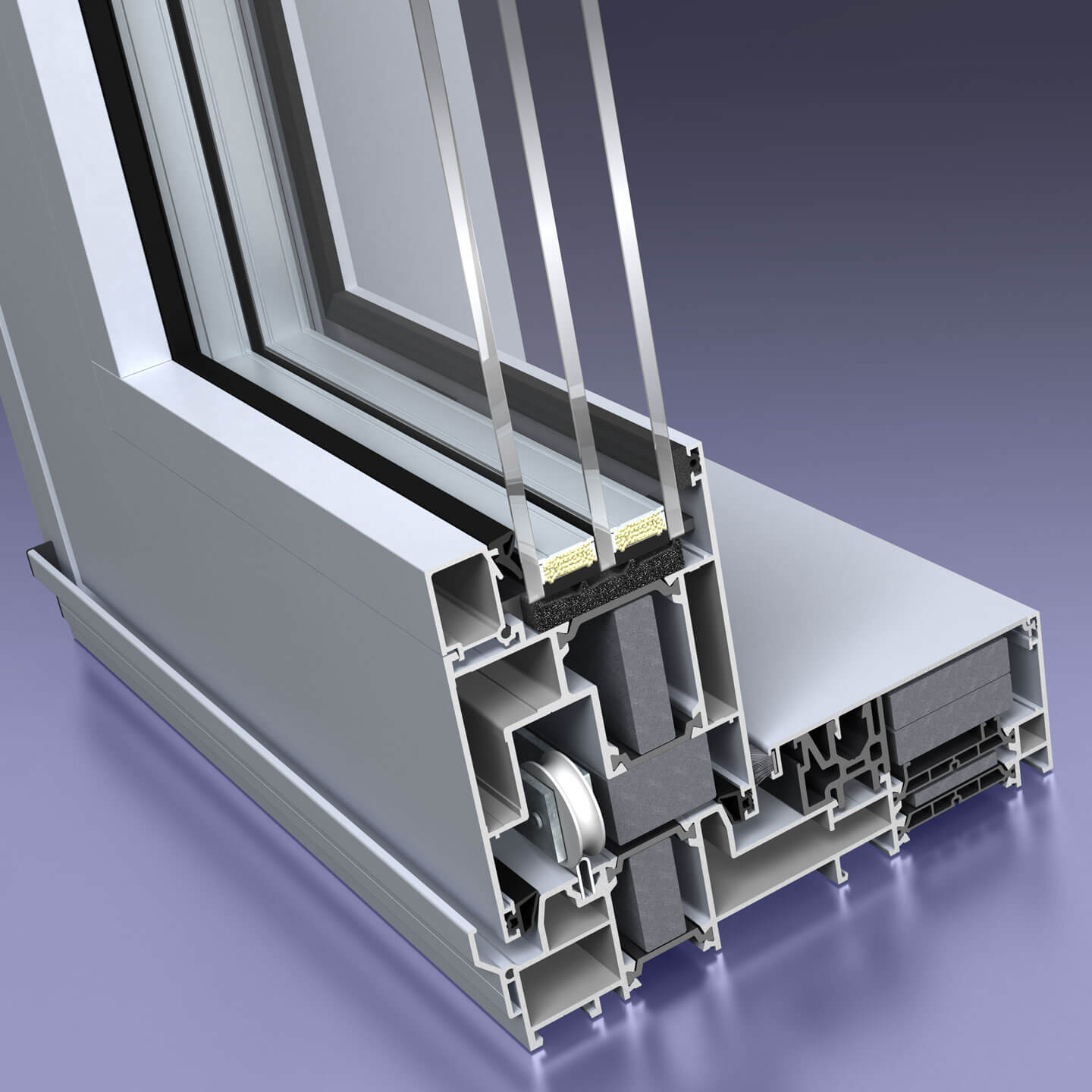

Section of the lower part of Patio HST 77 in the MONO version.
Corner | Fixed frame "Mono"

Cross-sections

Scheme A - 1 sliding leaf
  1. Frame depth – 70 mm
  2. The leaf profile is completely hidden in the frame
  3. Frame – 190 mm
  4. Post at the joint of the wings – 25 mm
    In conjunction with the hidden wing, it serves as a handrail
  5. Profiles with a 3-chamber structure with thermal insulation
  6. Total dimension with linear drainage – 300 mm
  7. Folding height – 129 mm
  8. The so-called “zero bar”
Scheme D - 2 driving wings
  1. Glazing range – 52-60 mm
  2. Manual sash – max. 500 kg
  3. A sliding wing with a place for a handrail or a handle – 190 mm
  4. System aluminum extension
  5. Linear drainage with a stainless steel masking grate (option)
  6. Track rollers made of stainless steel or black polyamide
  7. Slide seals in the frame – modern, aesthetic and noiseless during operation

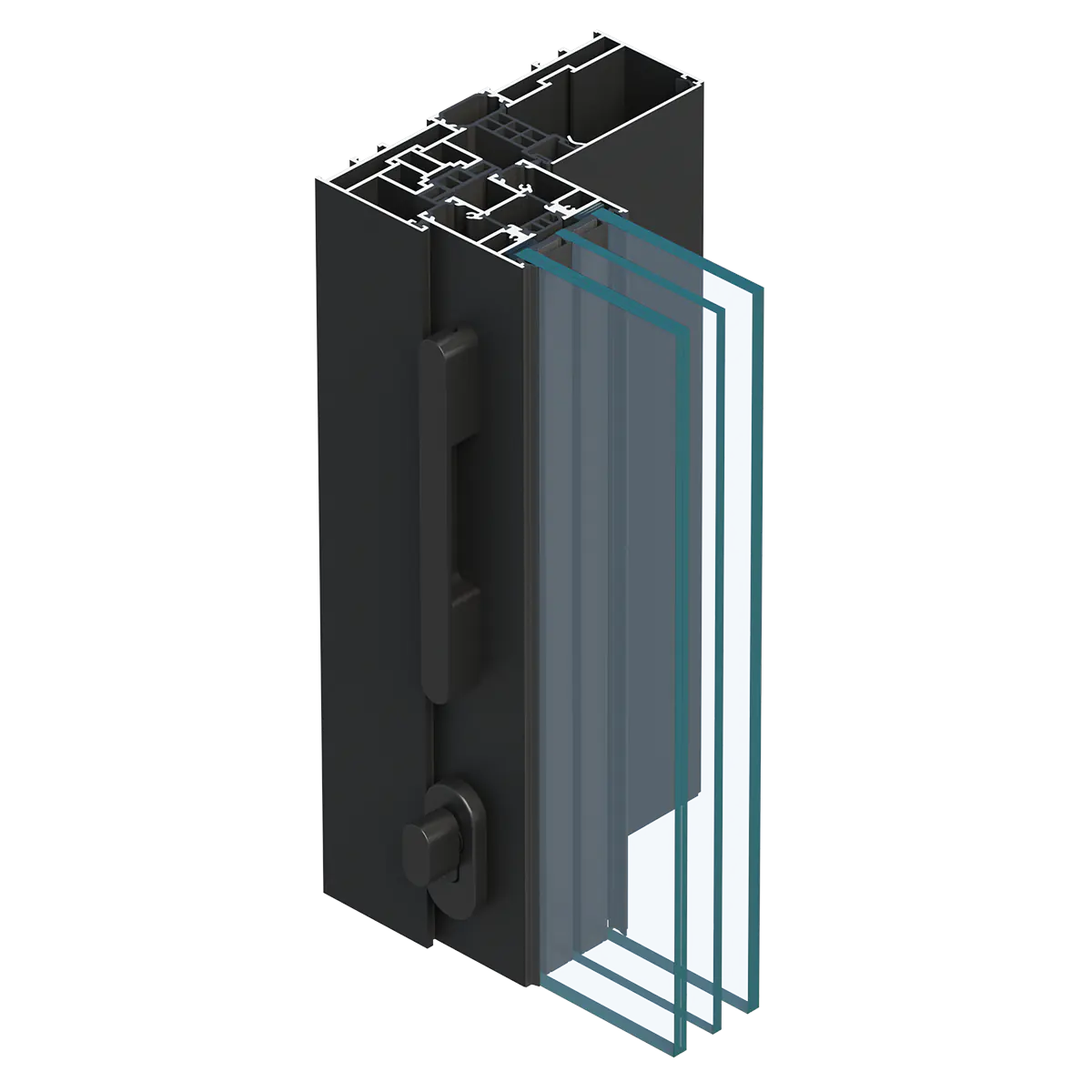

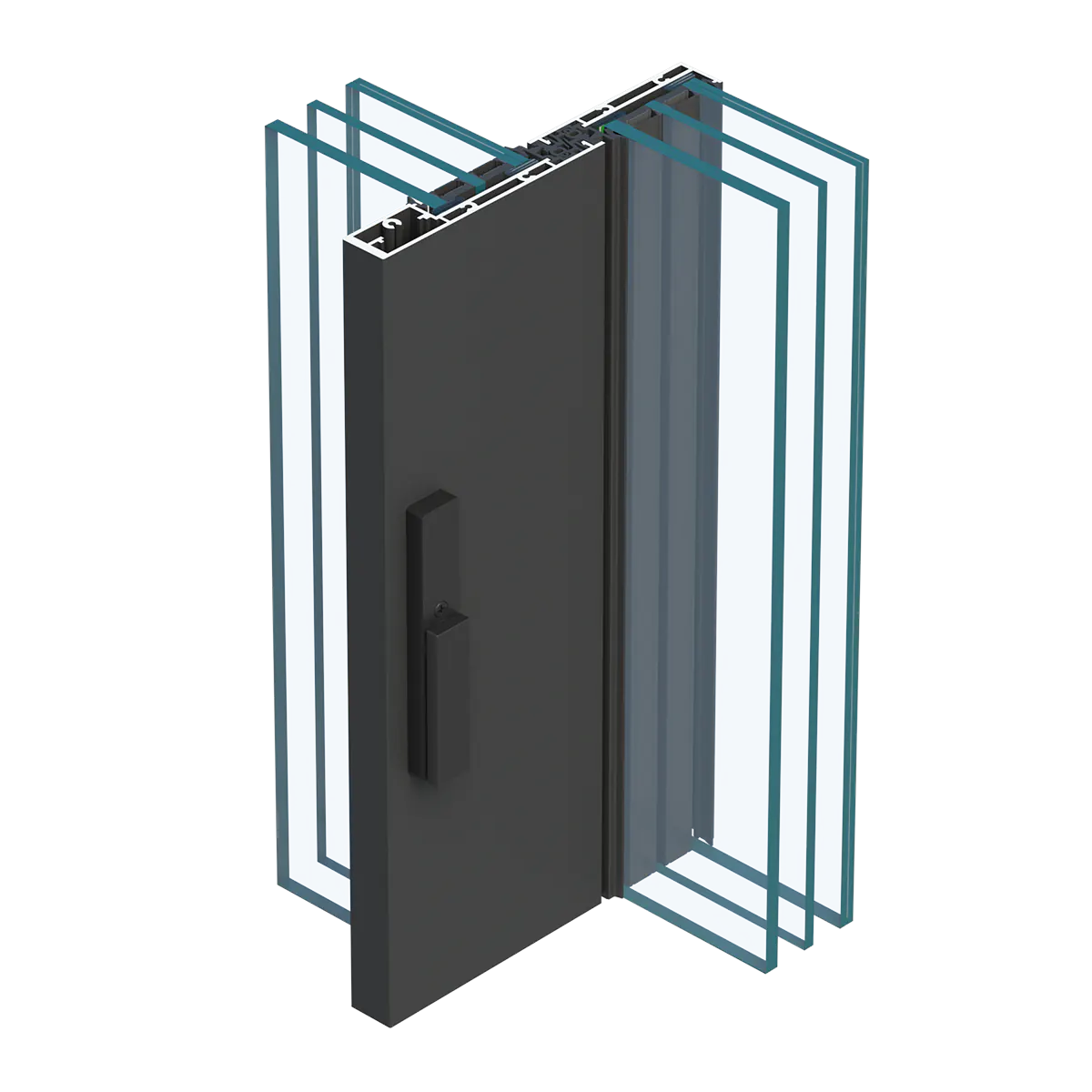

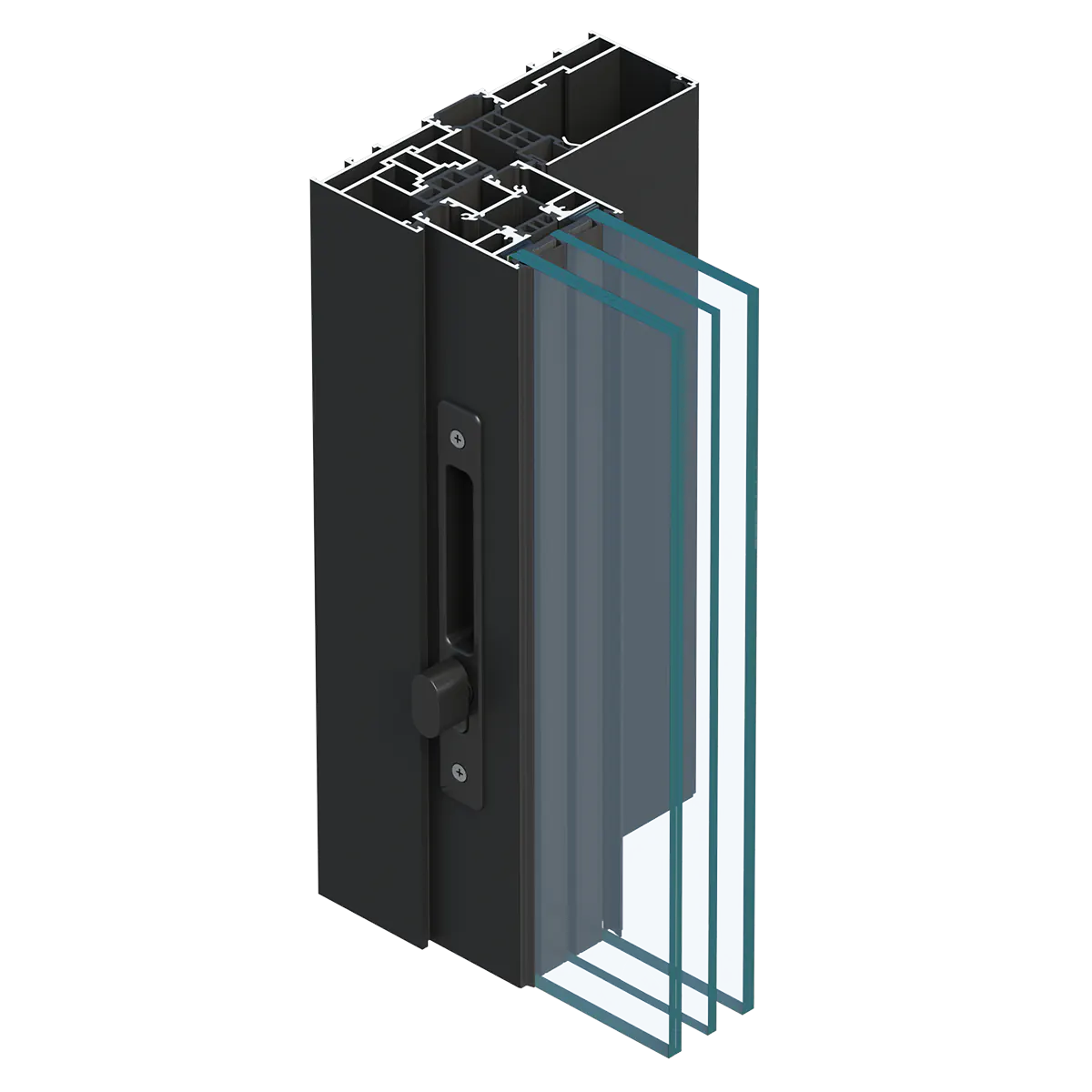

Handles

PARAMETERS

Ud = 0.80 W / m²K

for doors with a leaf size of 2049 x 3441 mm with glass Ug = 0.5 W / m²K and a warm frame

Lt = 74 %

for SUPERtermo 0.5 glass
with a new, brighter thermal coating

G = 53%

for SUPERtermo 0.5 glass
with a new, brighter thermal coating

It withstands a pressure of 1200 Pa caused by a wind speed of 158 km/h .

It is impermeable to water in heavy rain with a wind speed of 97 km / h .

Rw = 35 dB to 46 dB
depending on the acoustic glass
