The power of minimalism

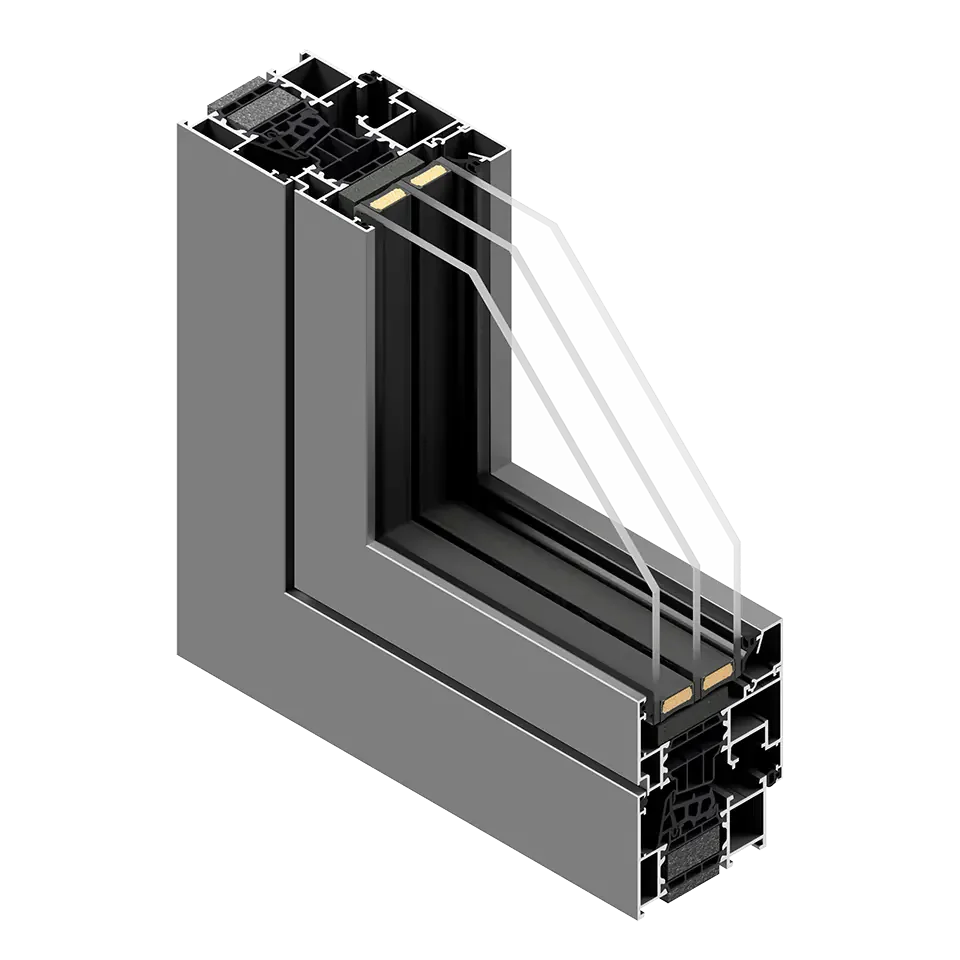

Przekrój okna Optimum 79N

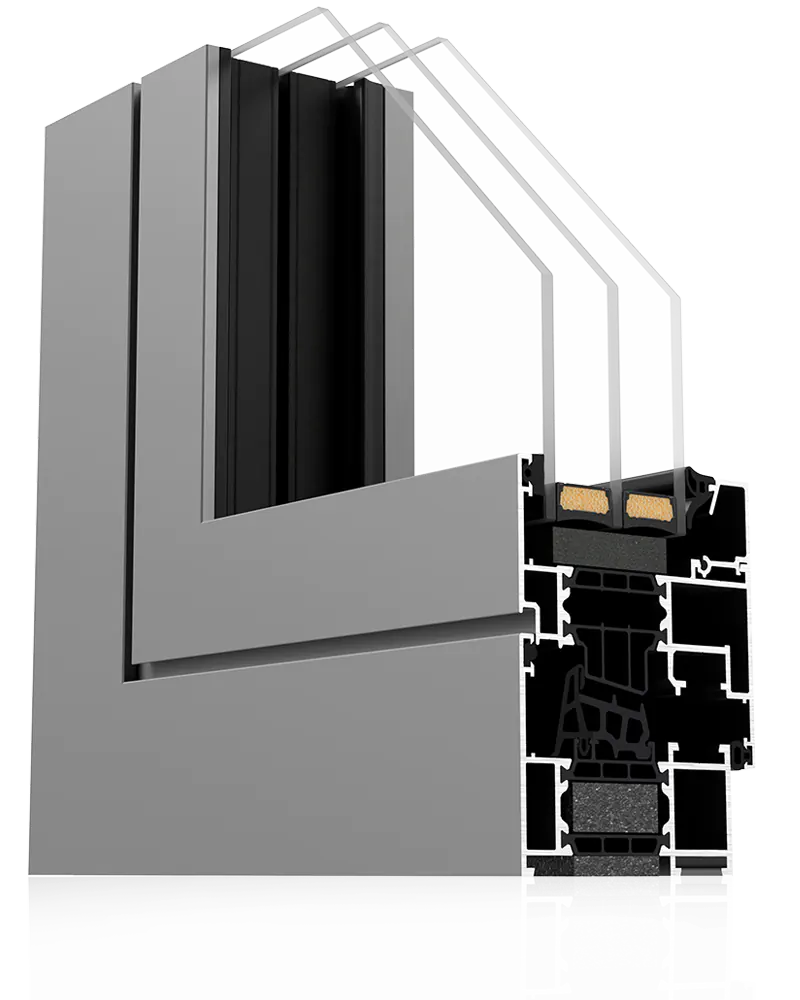

Optimum 79N windows

Optimum 79N aluminum windows are minimalist structures whose versatility allows them to be used in a variety of projects. The strength of this solution is demonstrated by very good statics, enabling the creation of high glazing, as well as effective thermal protection.

Optimum 79N in the SI version is a versatile aluminum system. In addition to window structures, it also allows the construction of entrance doors (including panel doors) and shop windows. It is integrated, among others: with the Patio HST 77 lift-and-slide doors and the SR50N and SR50N EFEKT façade systems.

Premium 86 is the most universal and comprehensive aluminum system. In addition to windows, it allows you to make entrance doors (also panel doors) and terrace doors. It is compatible with other sliding door systems and facade solutions.

POWER

MINIMALISM

Premium 86 aluminium window, internal view.

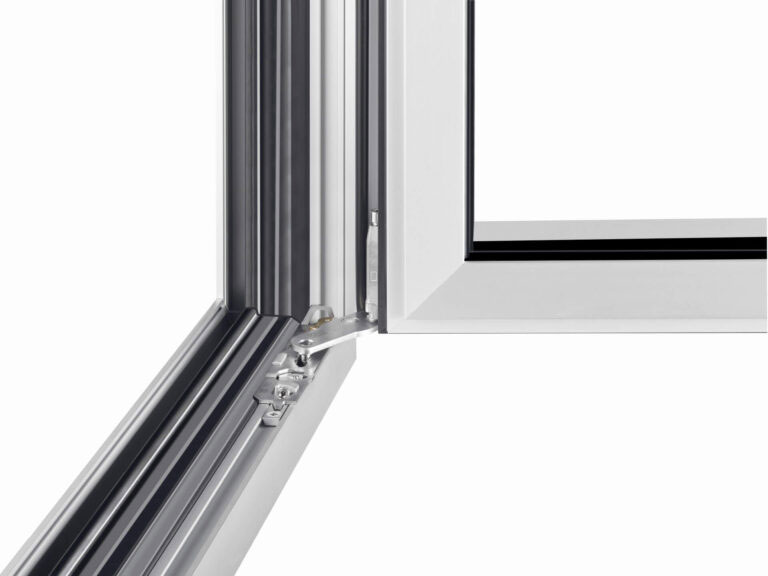

SIEGENIA FITTINGS

Optimum 79N windows are equipped with a roller mechanism that smoothly inserts even heavy sash into the frame. The steel anti-burglary catch secures and holds the door stably in the tilted position. KoPiBo movable bolts enable the construction of windows with security levels of RC0, RC1 or RC2. Micro-ventilation, blocking incorrect operation of the handle and securing the window against slamming are available as standard.

Premium 86 aluminium windows.

SIEGENIA FITTINGS

Optimum 79N windows are equipped with a roller mechanism that smoothly inserts even heavy sash into the frame. The steel anti-burglary catch secures and holds the door stably in the tilted position. KoPiBo movable bolts enable the construction of windows with security levels of RC0, RC1 or RC2. Micro-ventilation, blocking incorrect operation of the handle and securing the window against slamming are available as standard.

Cross-sections

  1. SI – dedicated insulating inserts in the thermal break zone
  2. Folding width – 103 mm (frame/leaf)
  3. Simple strips
  4. Frame depth – 70 mm
  5. Leaf depth – 79 mm
  6. Two rebate gaskets and one central gasket for perfect thermal and acoustic tightness
Przekrój okna Premium 79N
Window profile - internal view
Przekrój okna Optimum 79N
Window profile - external view

Colour

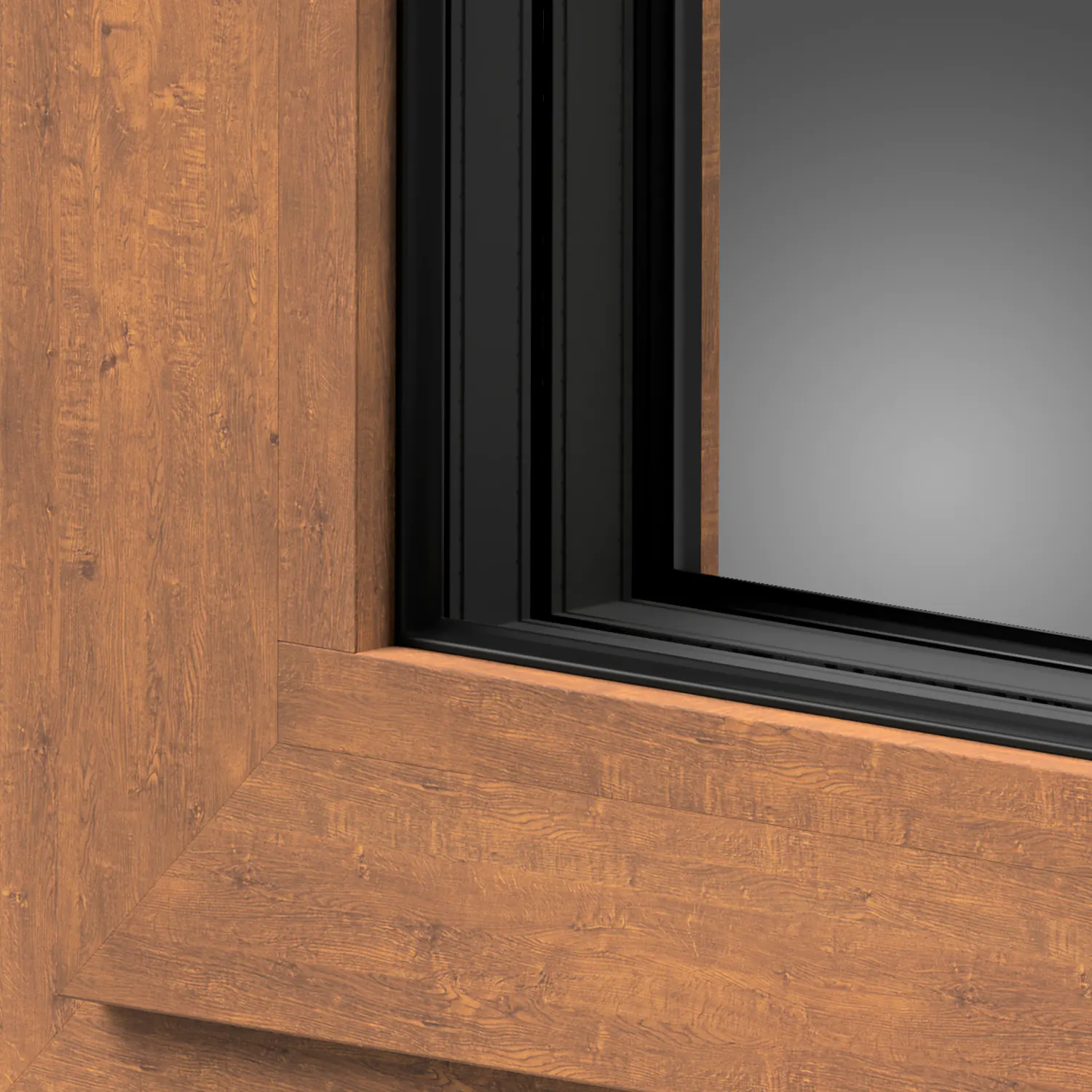

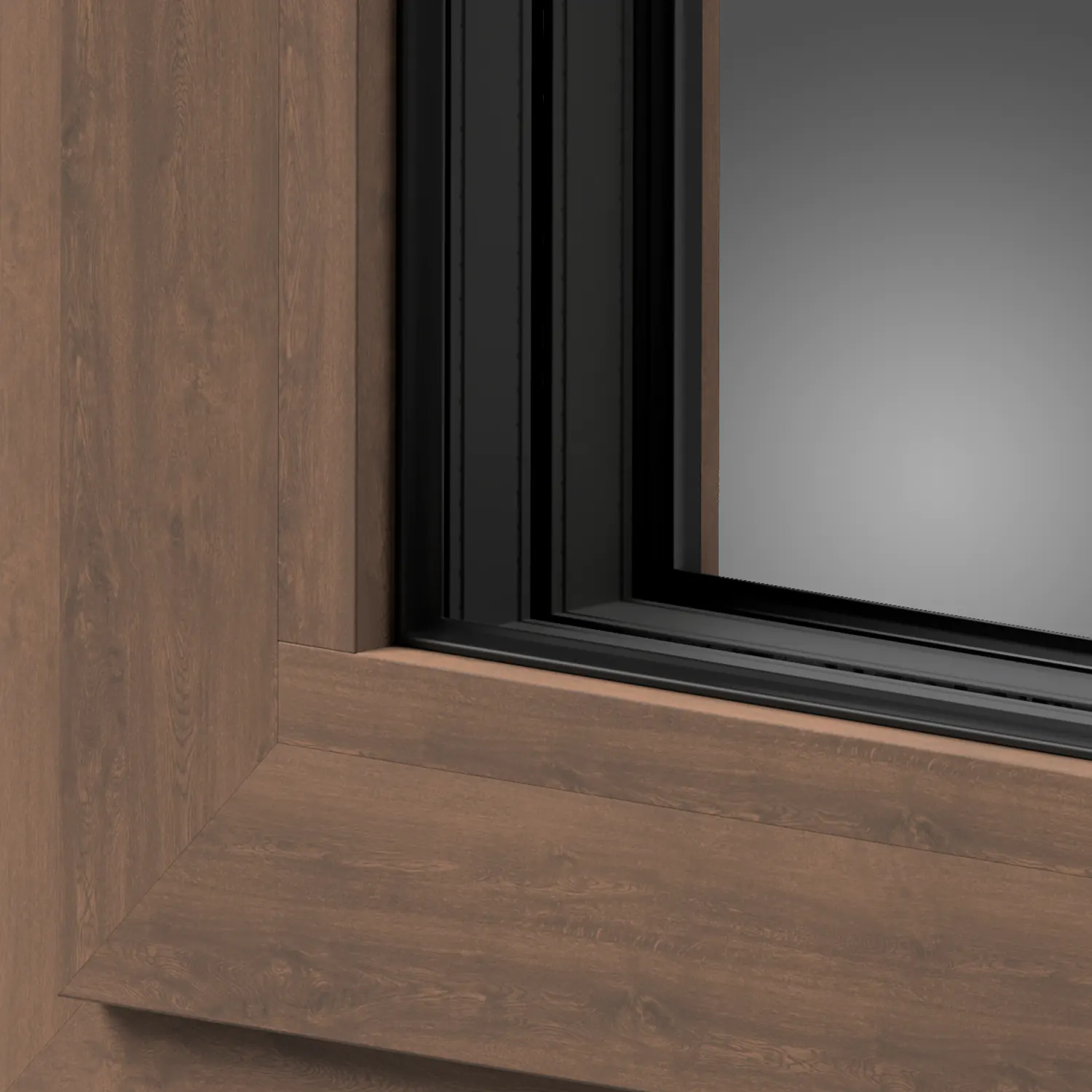

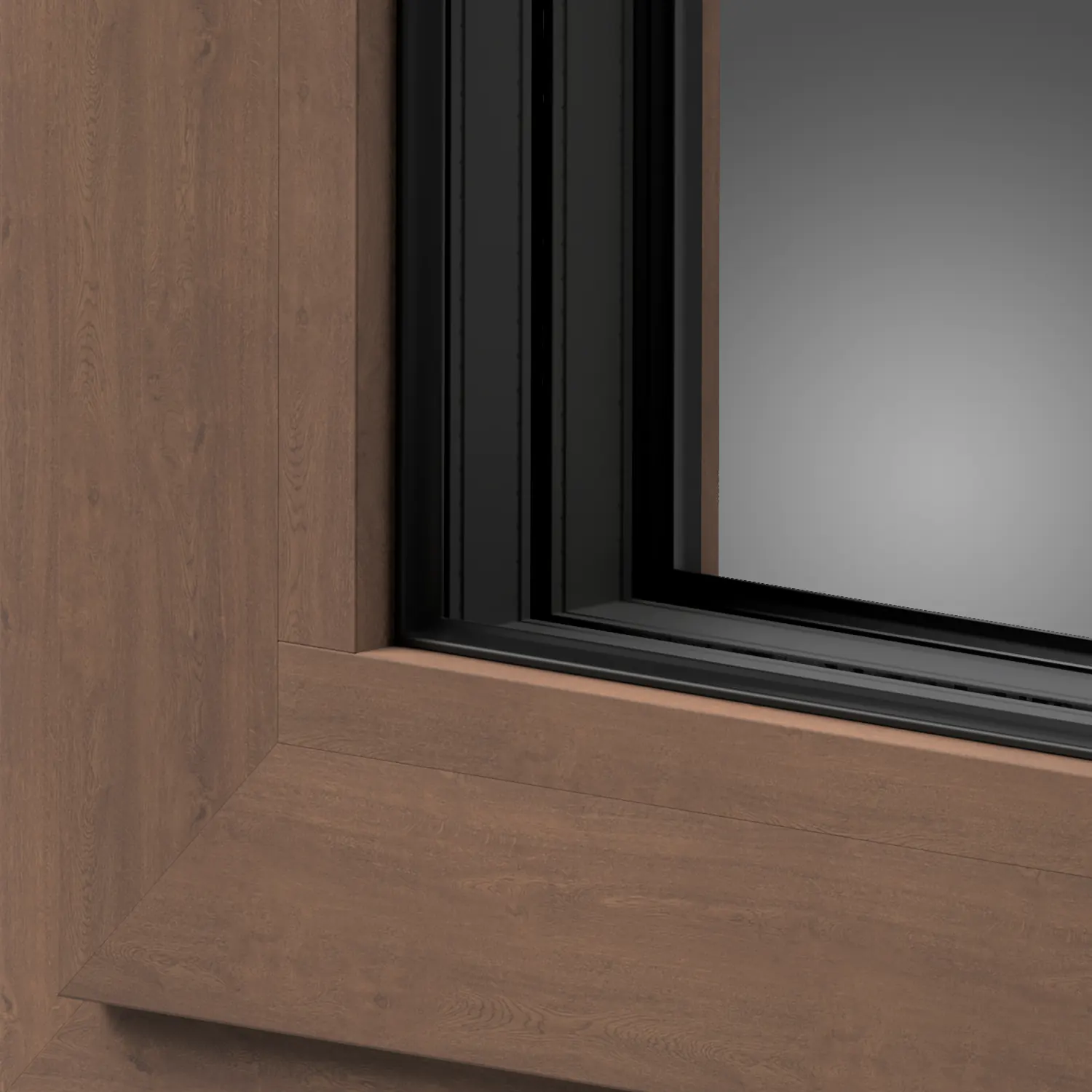

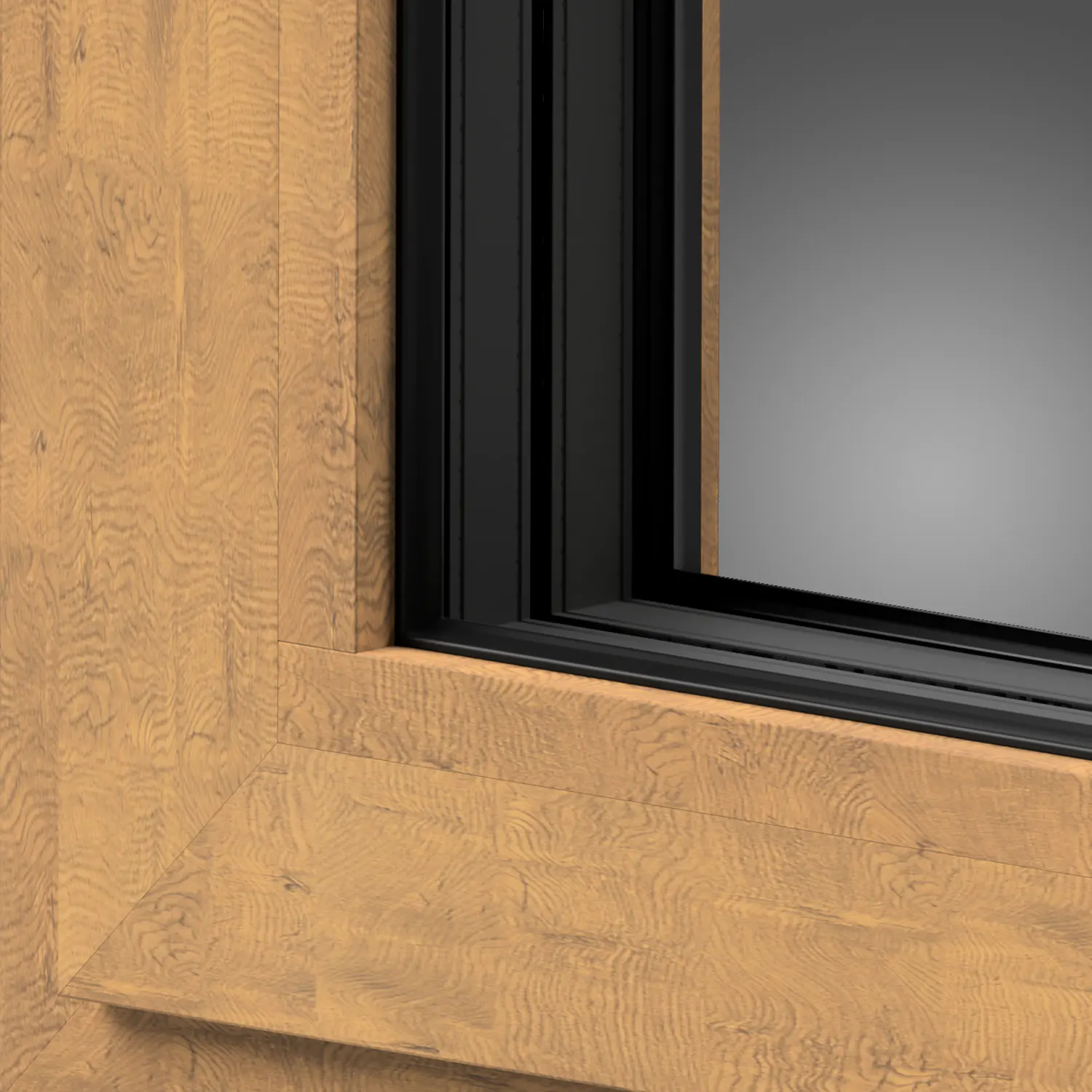

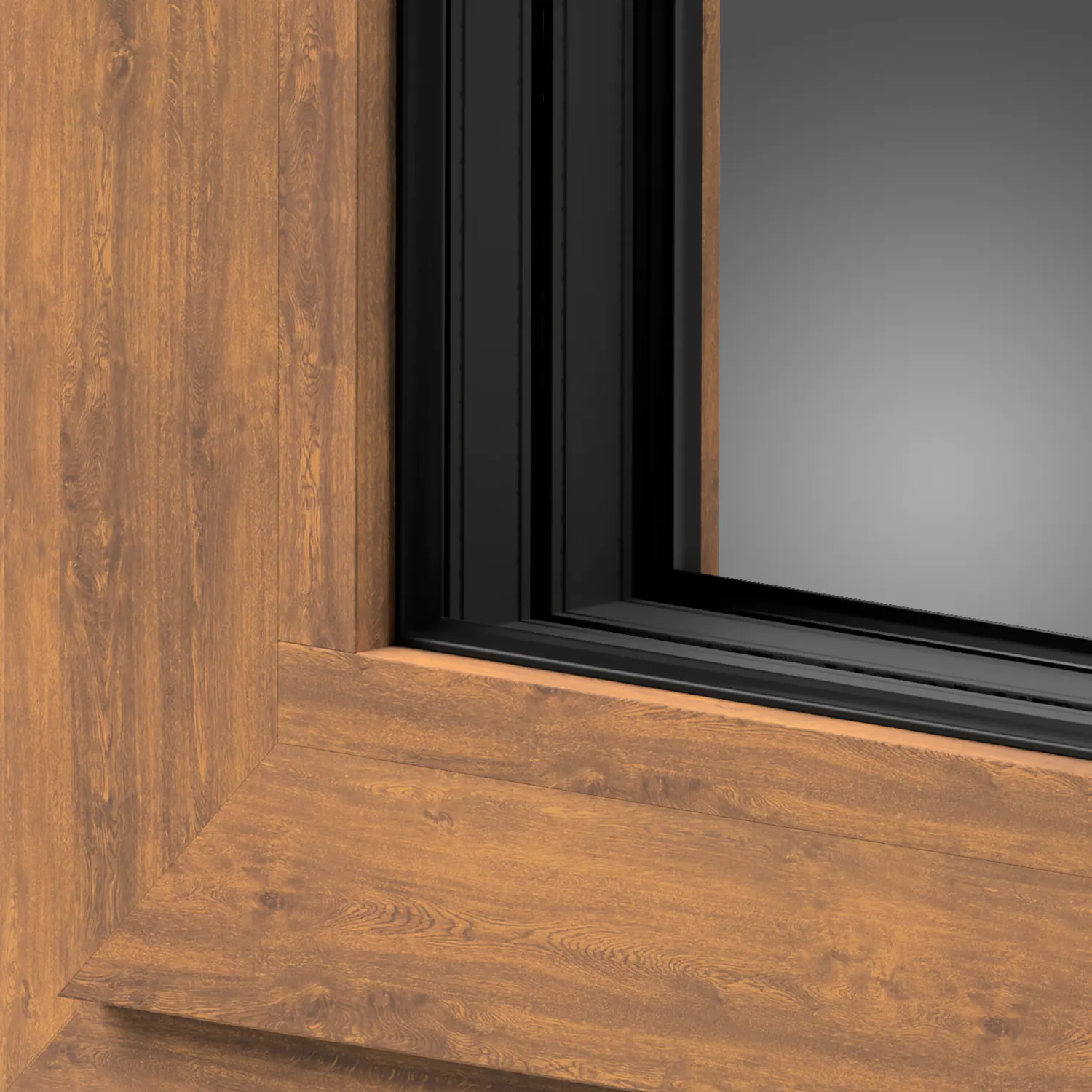

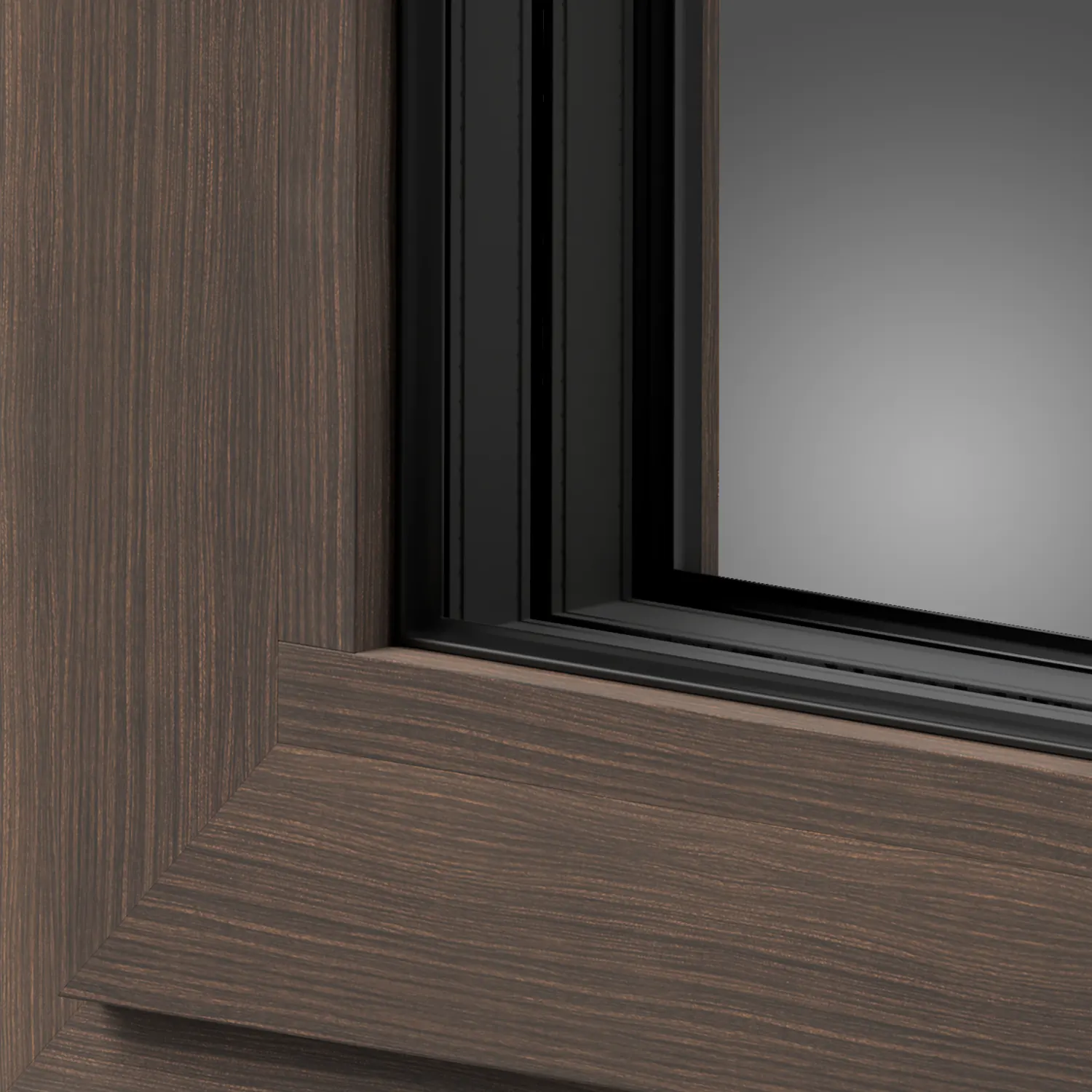

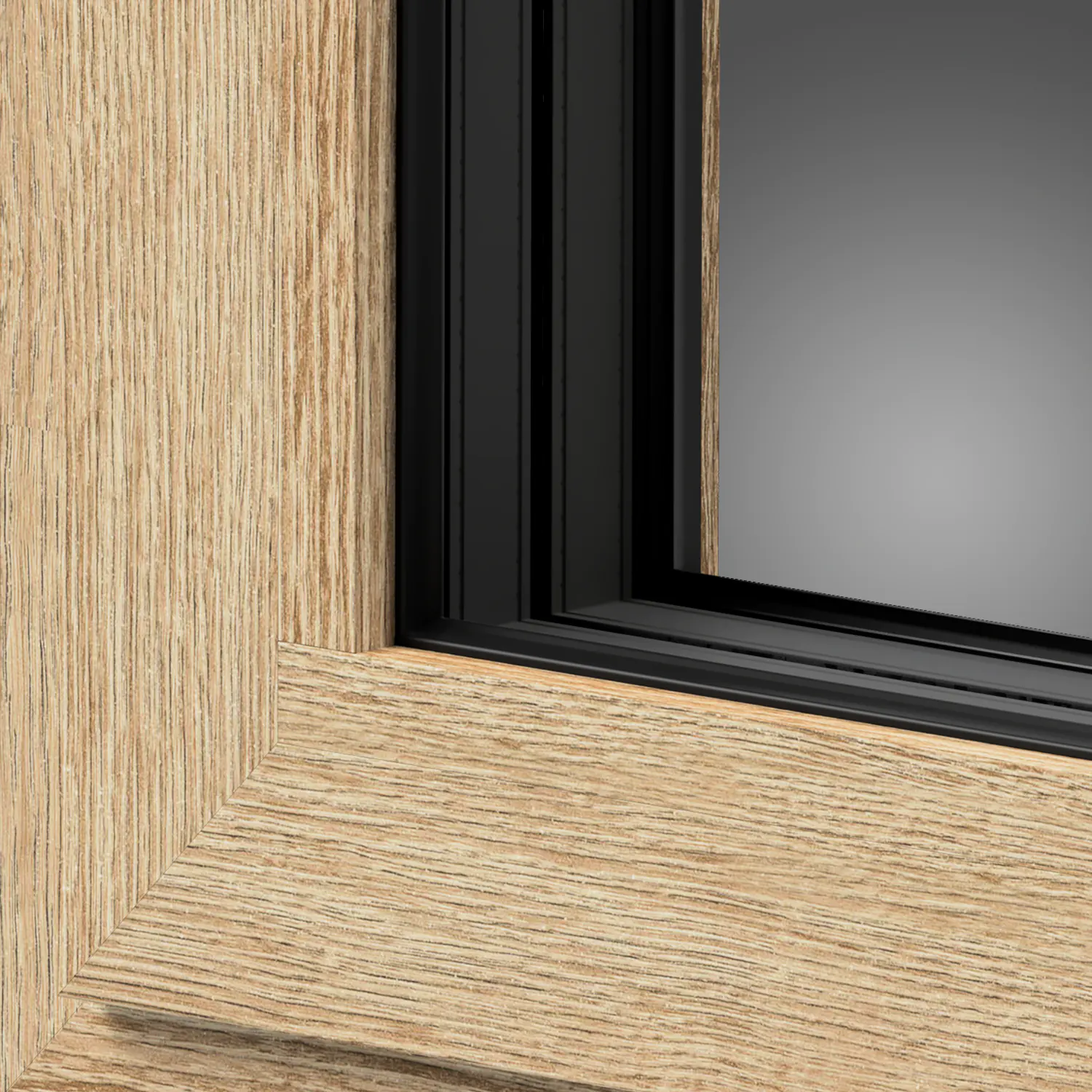

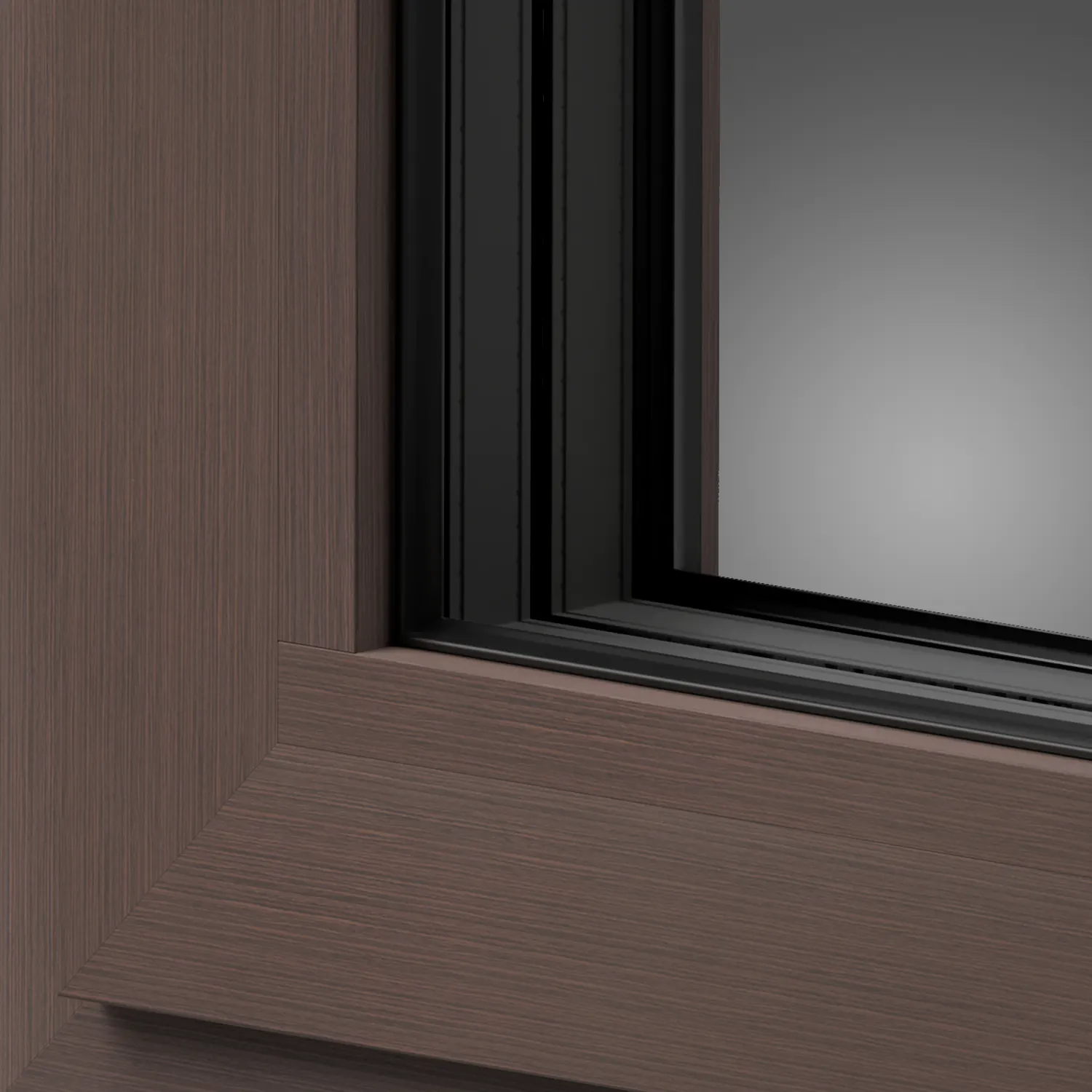

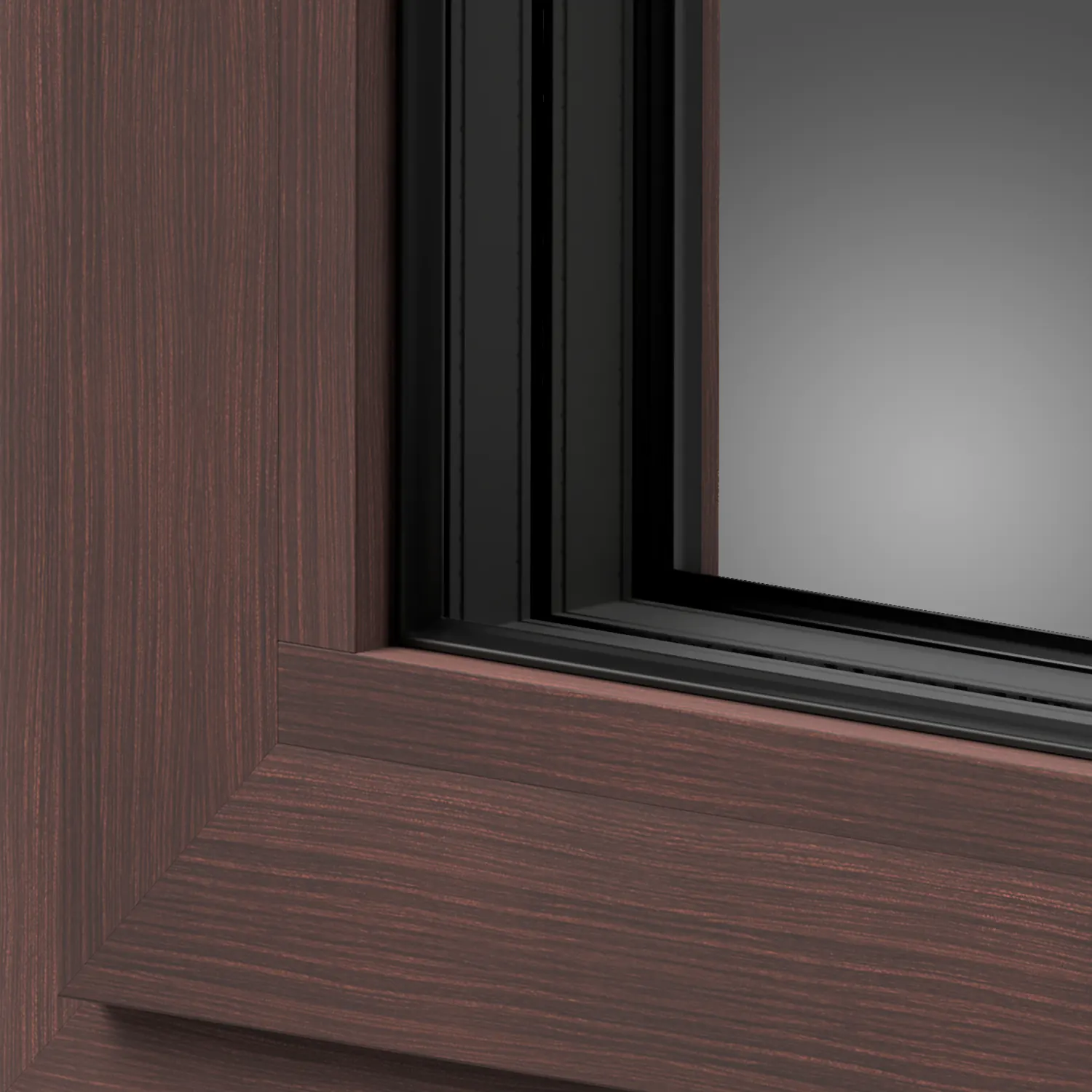

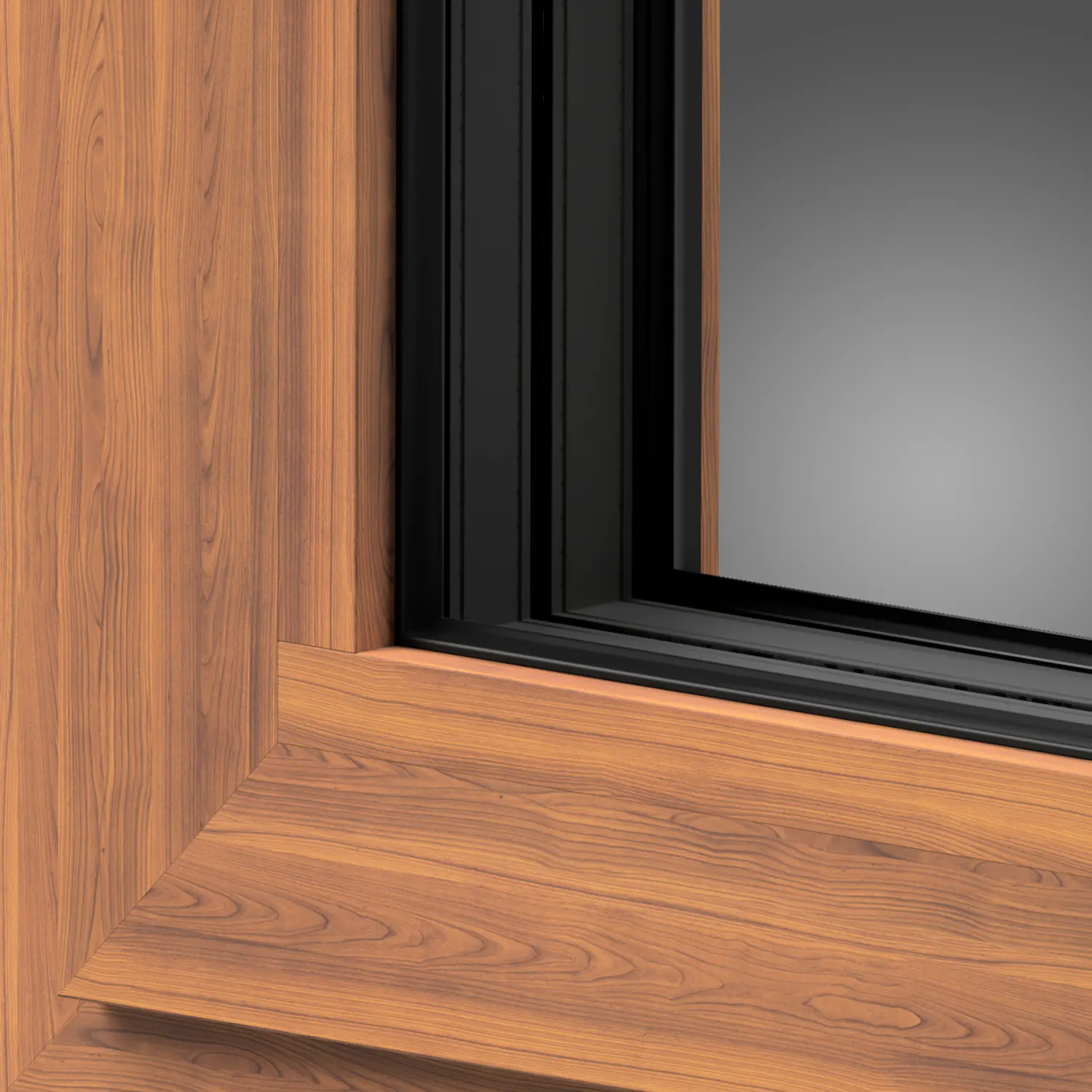

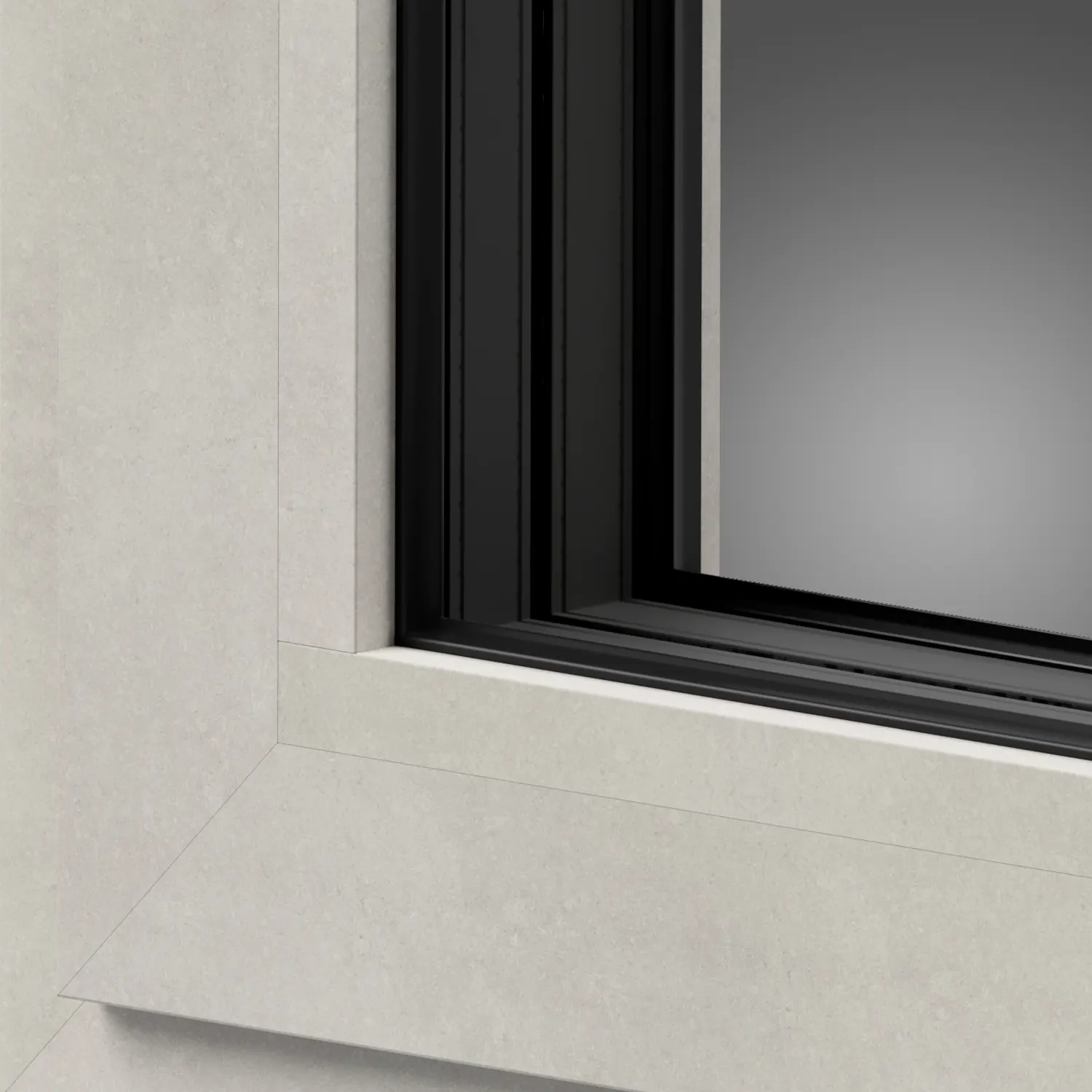

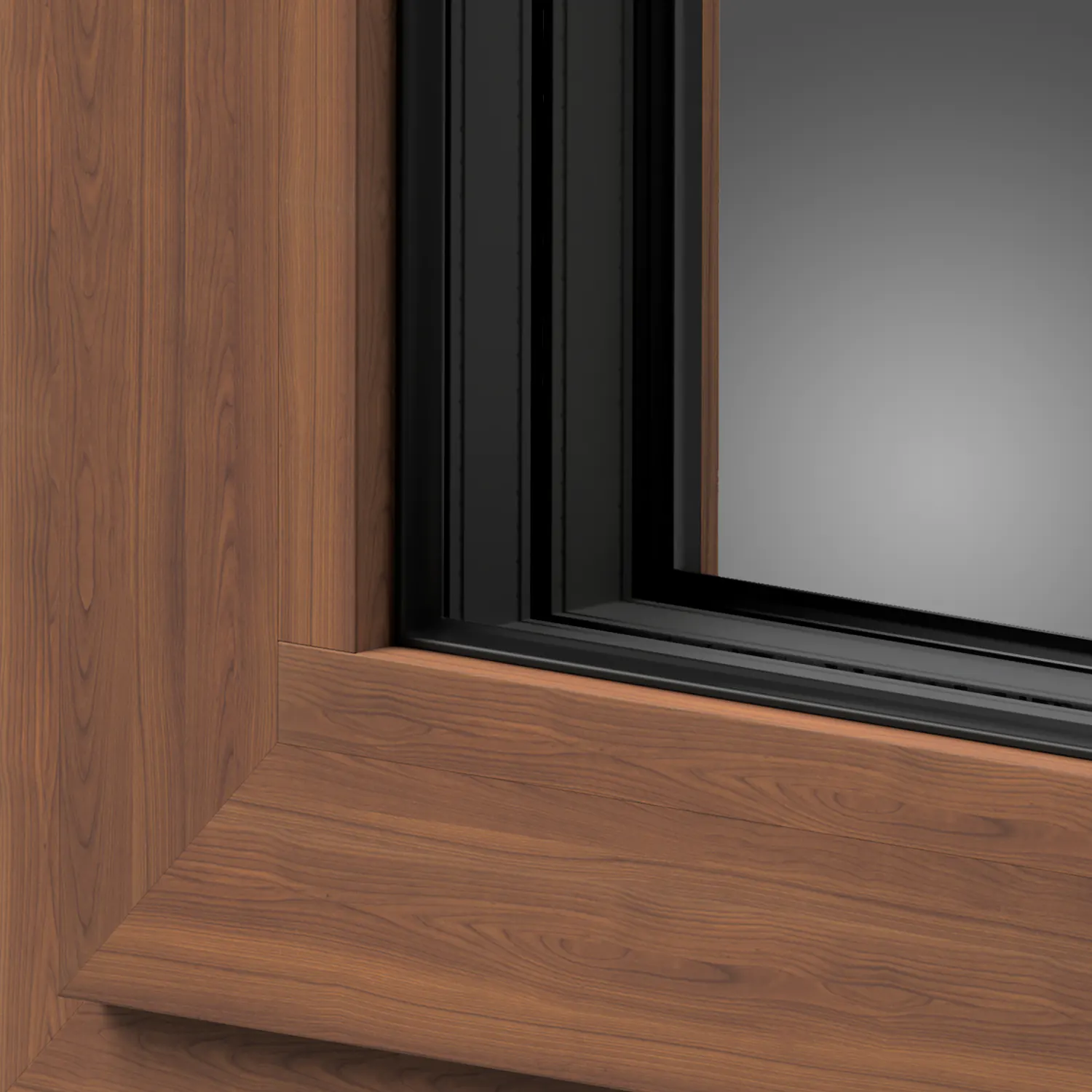

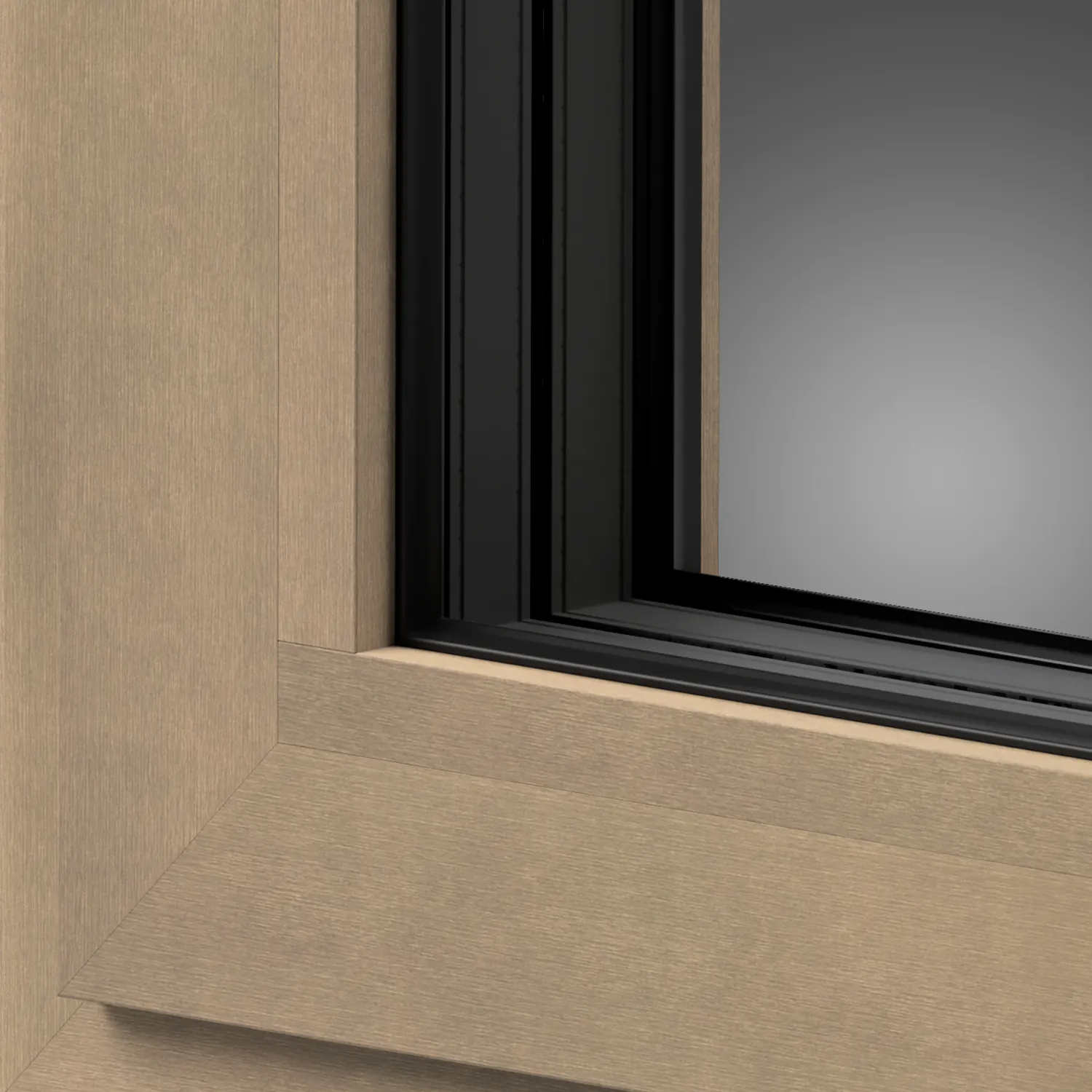

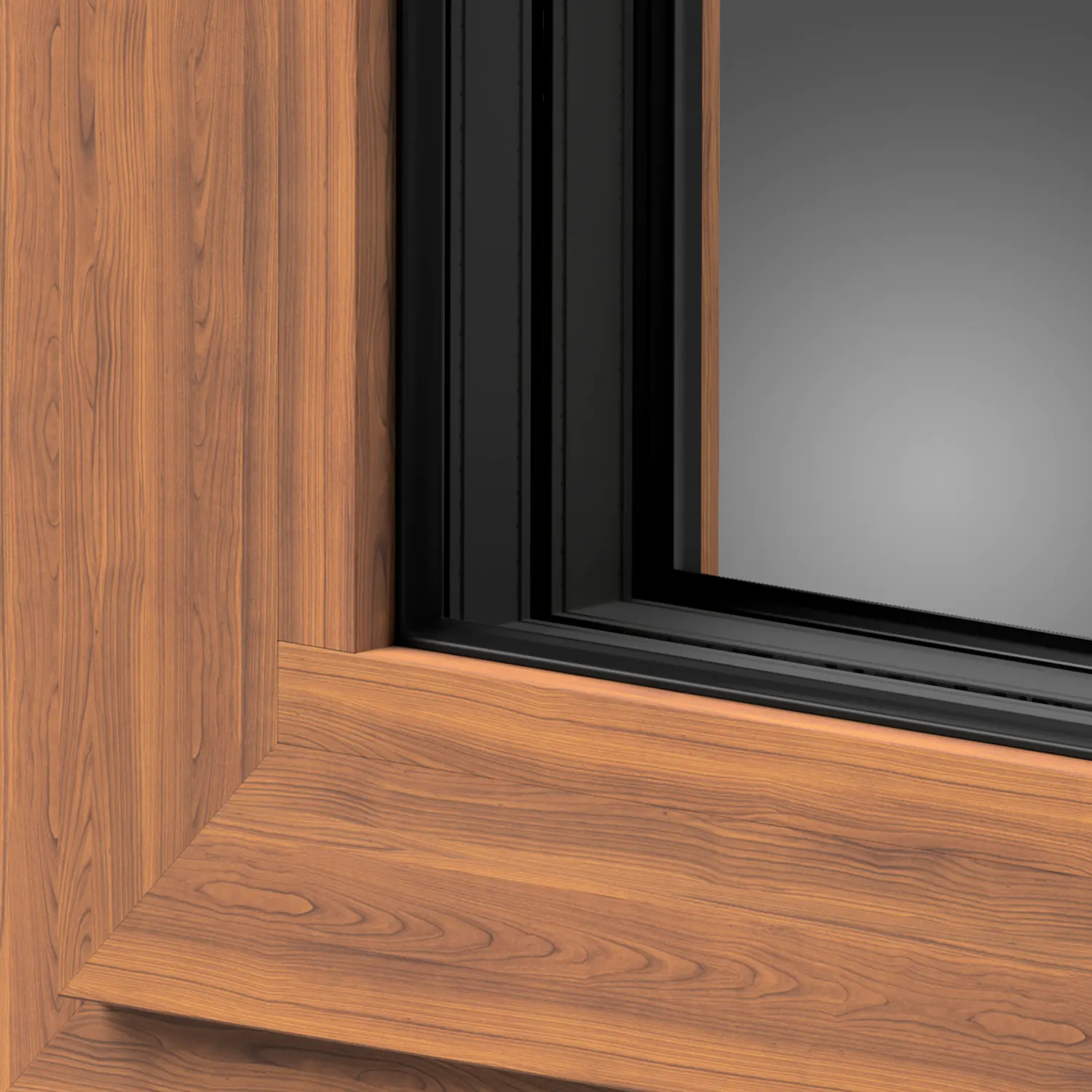

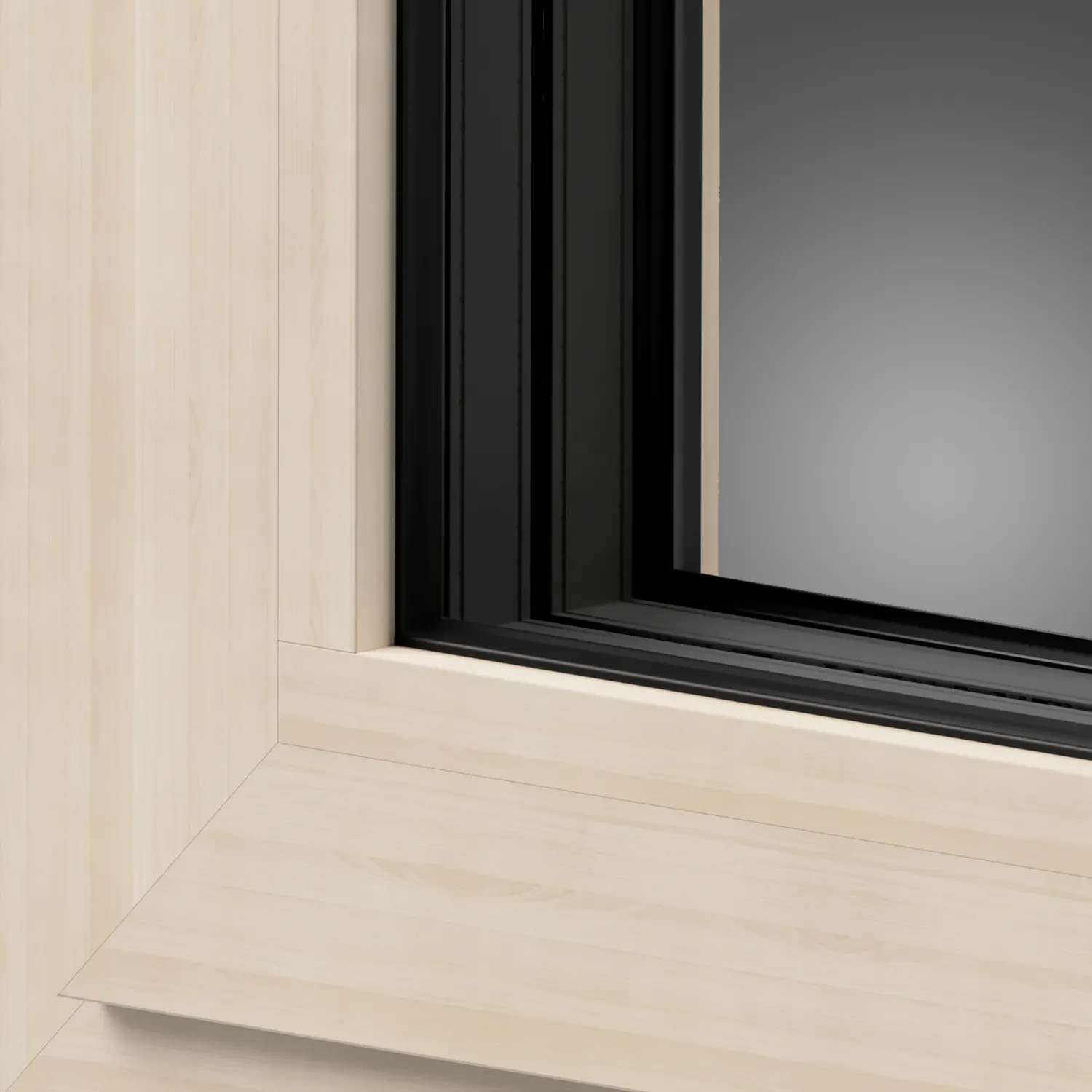

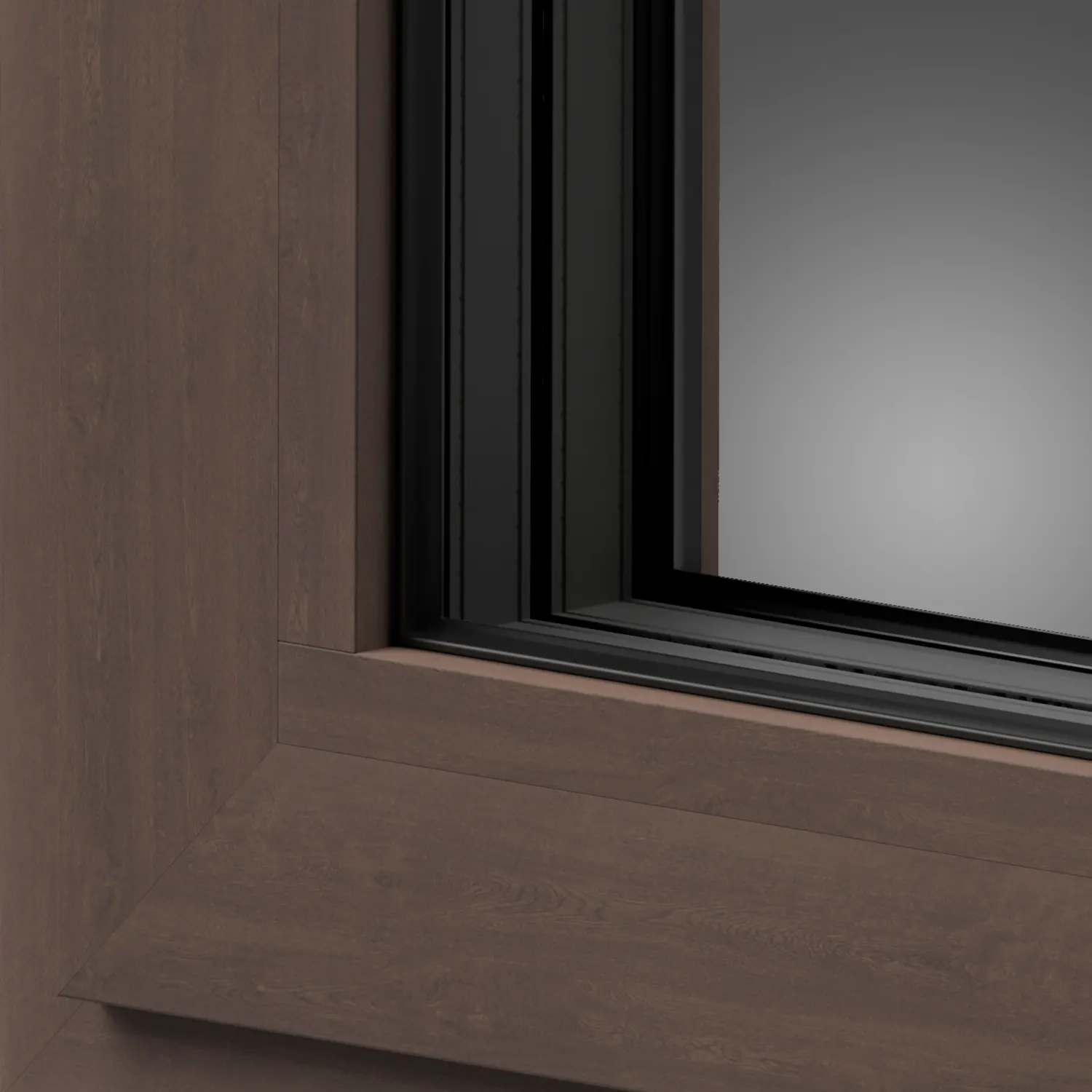

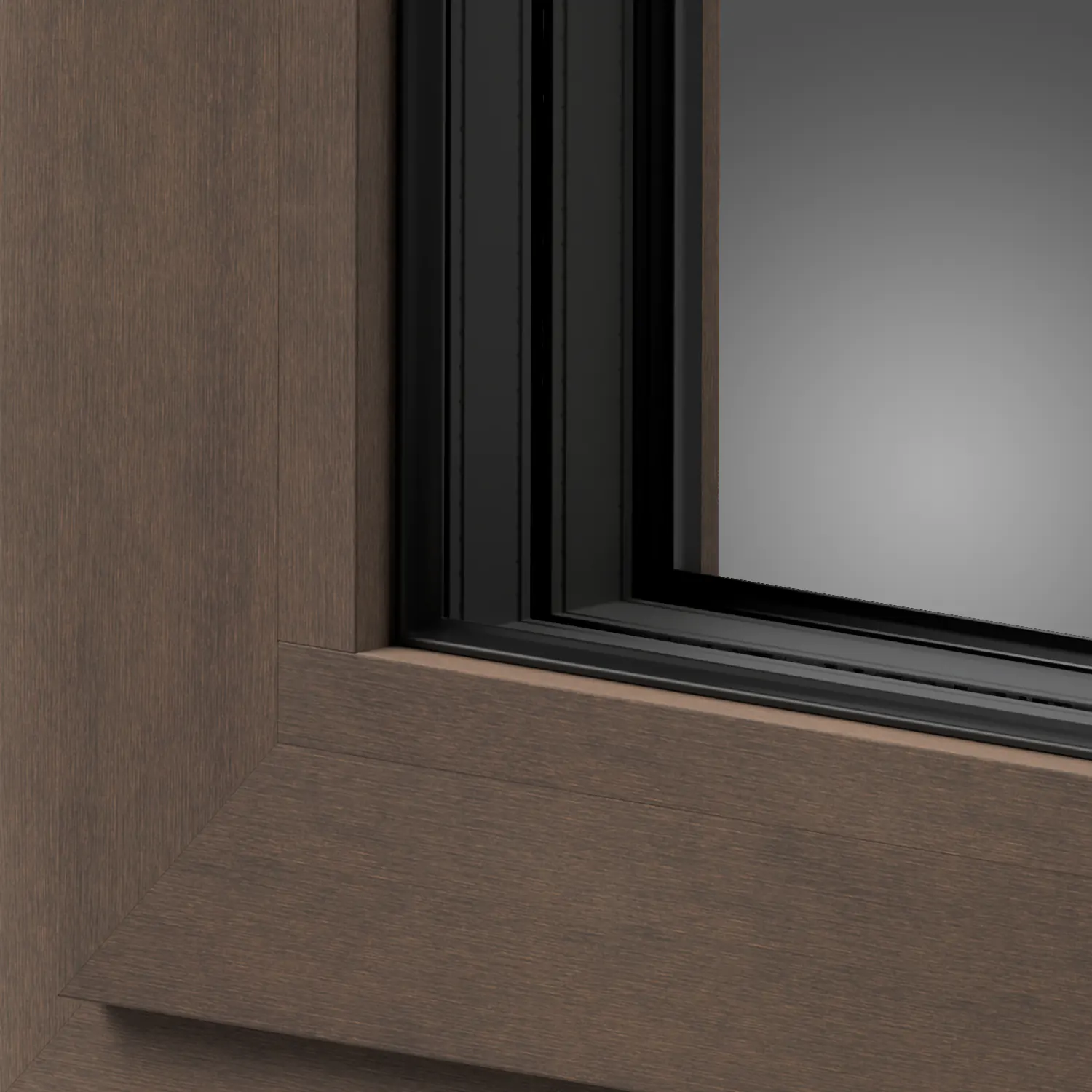

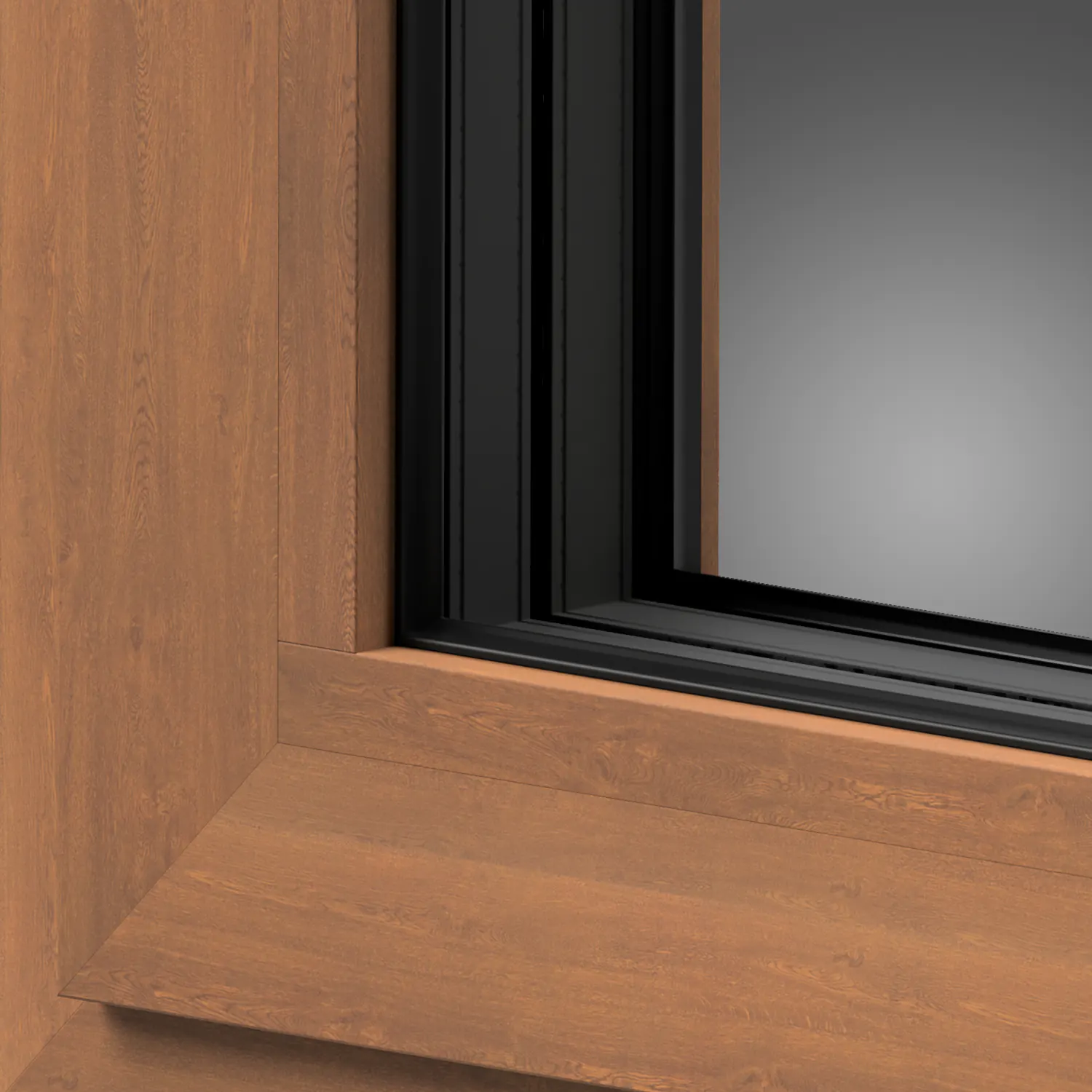

Color versions of profiles used in the production of Optimum 79N windows are created using one of two processes – powder coating or sublimation. The first one guarantees a smooth coating – without imperfections such as streaks or wrinkles – in various RAL shades. The second one allows you to create aluminum structures in wood-like colors. The variety of available options allows you to give your joinery a unique character.

PARAMETERS

for the reference window
Uw = 0.84 W/m²K with CHROMATECH frame
Uw = 0.80 W/m²K with Thermobar frame

Lt = 74 %

for SUPERtermo 0.5 glass
with a new, brighter thermal coating

G = 53%

for SUPERtermo 0.5 glass
with a new, brighter thermal coating

It withstands a pressure of 2000 Pa caused by a wind speed of 204 km/h .

It does not allow water to pass through in heavy rain with a wind speed of 137 km/h .

Rw = 35 dB to 46 dB
depending on the acoustic glass
