Premium 86 windows logo.

Internal harmony

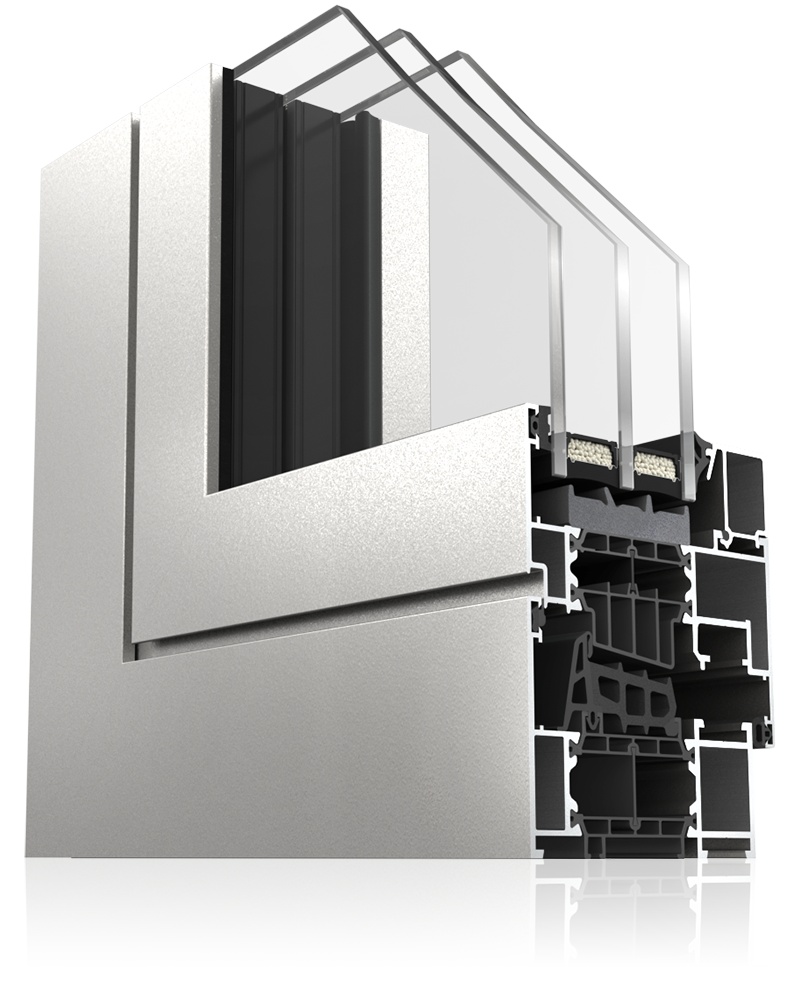

Premium 86 window section.

Premium 86 windows

Premium 86 lightweight windows create bright, serene places. The range of available structures allows to meet aesthetic requirements and achieve harmony of the interior. Made of aluminium, they are characterised by high durability and a modern look which, thanks to the numerous colour options offered, can be fully adapted to the preferences of the future user.

Premium 86 is the most universal and versatile aluminium system. In addition to the windows, it allows to make entrance doors (also panel) and terrace doors. It is compatible with other sliding door systems and facade solutions.

Premium 86 is the most universal and versatile aluminium system. In addition to the windows, it allows to make entrance doors (also panel) and terrace doors. It is compatible with other sliding door systems and facade solutions.

EXTERNAL

HARMONY

Premium 86 aluminium window, internal view.

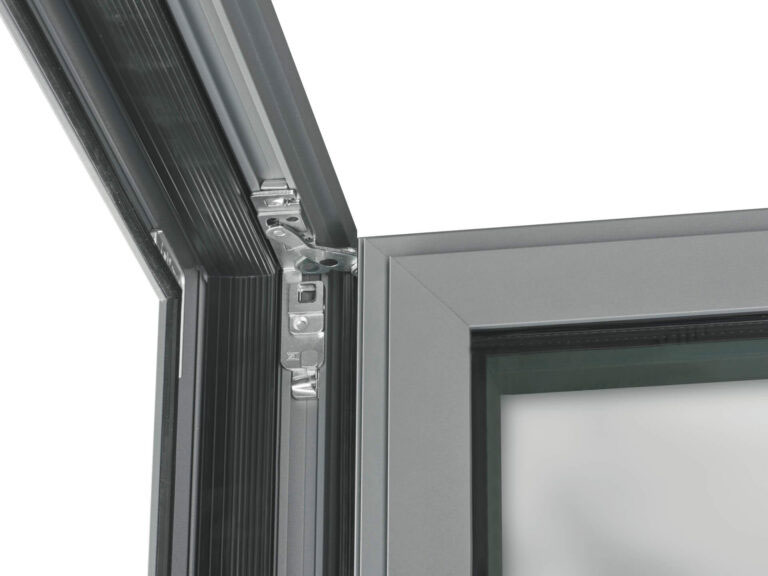

SIEGENIA HARDWARE

Premium 86 windows are equipped with a roller mechanism that smoothly guides even a heavy sash into the frame. The steel security striker plate secures and holds the sash stably in the tilt position. KoPiBo movable mushroom cams allow the window to be made in RC0, RC1 or RC2 security steps. Microventilation, mishandling device and anti-slam device are available as standard.

Premium 86 aluminium windows.

SIEGENIA HARDWARE

Premium 86 windows are equipped with a roller mechanism that smoothly guides even a heavy sash into the frame. The steel security striker plate secures and holds the sash stably in the tilt position. KoPiBo movable mushroom cams allow the window to be made in RC0, RC1 or RC2 security steps. Microventilation, mishandling device and anti-slam device are available as standard.

Sections

Premium 86 window section.
WINDOW
  1. Assembly width – 103 mm (frame/sash)
  2. Rectangular glazing beads
  3. SI – profile warming technology
  4. The sash flushed with the frame with an additional gasket
  5. Frame depth – 77 mm
  6. Sash depth – 86 mm
Premium 86 window with a threshold section.
BALCONY WITH LOW THRESHOLD
  1. Low threshold
  2. Aluminium drip cap

Colour

The colour variants of Premium 86 aluminum windows are the result of two processes – powder coating and sublimation. The first of the above-mentioned makes it possible to obtain profiles in numerous RAL colours (mat or structure). Sublimation, on the other hand, allows to create wood-like options, thanks to which the aluminum joinery acquires a natural character. Fashionable grays, bold shades of red or warm wood imitations guarantee that the construction will match the planned interior of the room and the appearance of the entire building.

Parameters

for reference window
Uw = 0.84 W/m²K with CHROMATECH spacer bar
Uw = 0.82 W/m²K with Thermobar spacer bar

Lt = 74%

for SUPERtermo 0.5
with a new, brighter low thermal emissivity coating

G = 53%

for SUPERtermo 0.5
with a new, brighter low thermal emissivity coating

Withstands a pressure of 1200 Pa caused by a wind speed of 158 km/h.

It does not pass water in heavy rain with a wind speed 124 km/h.

Rw = 35 dB to 46 dB
depending on the acoustic glass
