External harmony

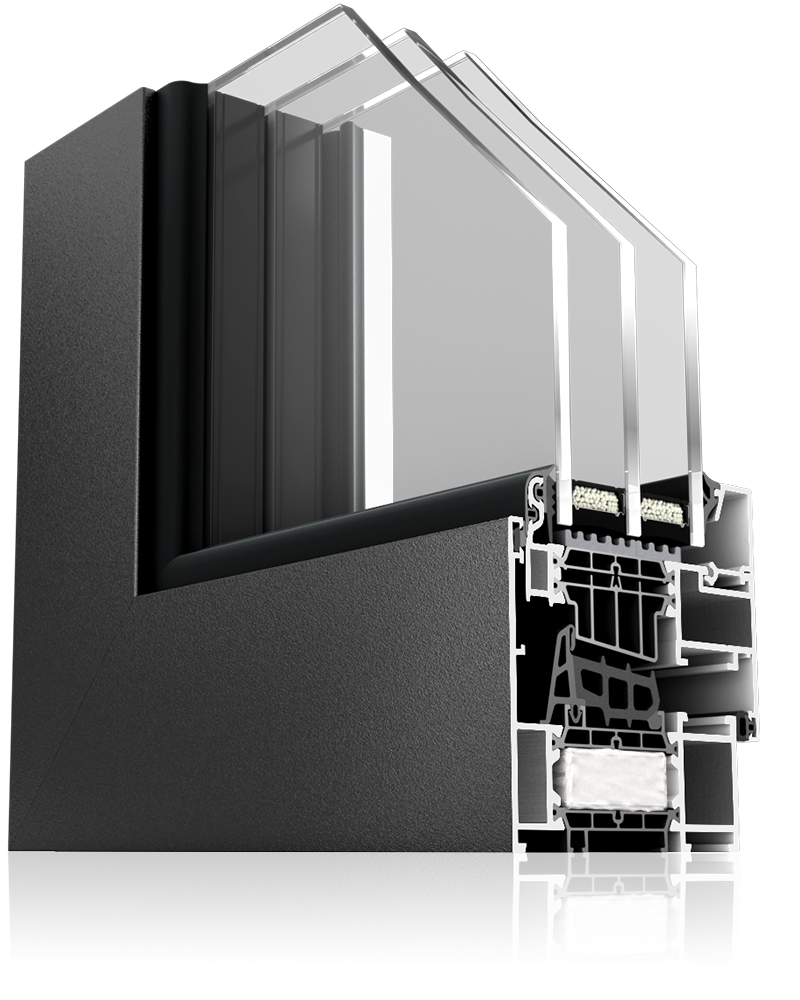

Premium 86 US window section - aluminium construction with a hidden sash.

Premium 86 US windows

The Premium 86 US hidden sash supports integration into the surroundings. The sash hidden behind the frame makes the construction blend into the facade of the building, creating external harmony. Aluminium windows are characterised by very good thermal insulation due to the use of special profile insulation technology.

The best visual effect is guaranteed by single-sash constructions. From the outside, they look as if only windowpanes are installed instead of windows. The hidden sash solution fits perfectly with the entire Premium 86 offer – terrace and entrance doors, sliding constructions and facades.

The best visual effect is guaranteed by single-sash constructions. From the outside, they look as if only windowpanes are installed instead of windows. The hidden sash solution fits perfectly with the entire Premium 86 offer – terrace and entrance doors, sliding constructions and facades.

EXTERNAL

HARMONY

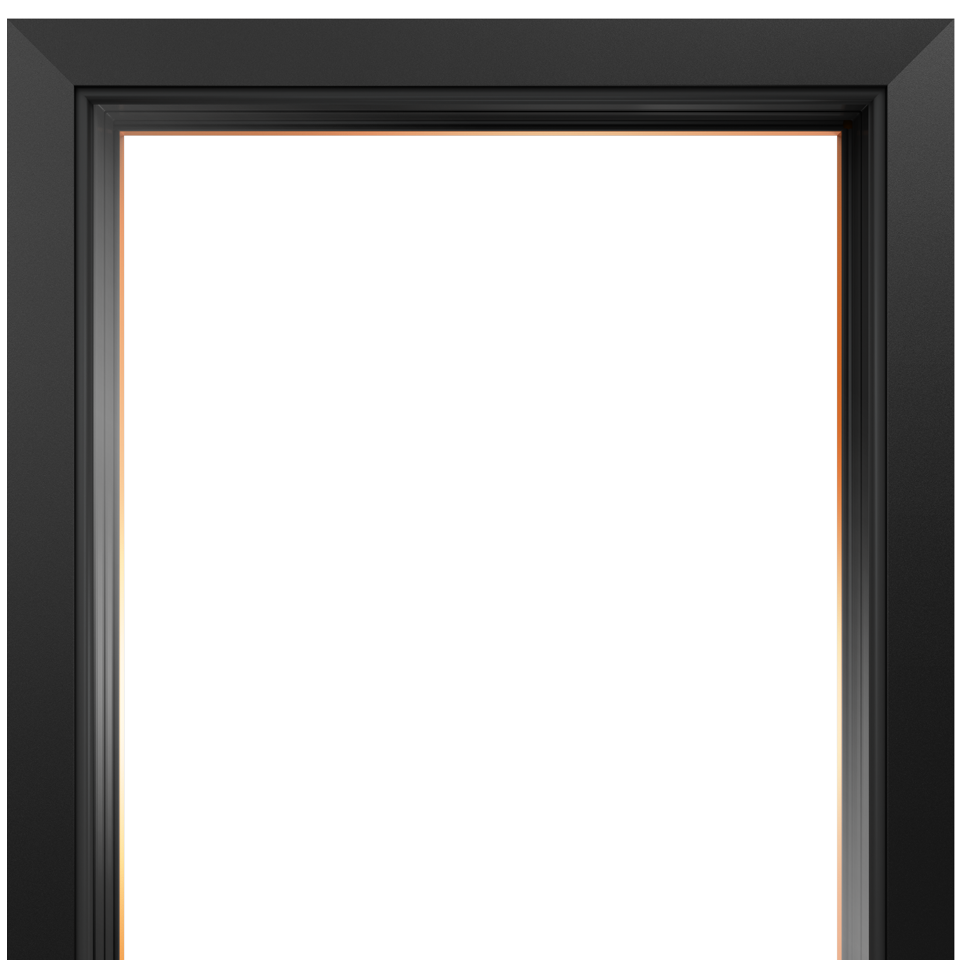

Premium 86 US window - view from the outside.

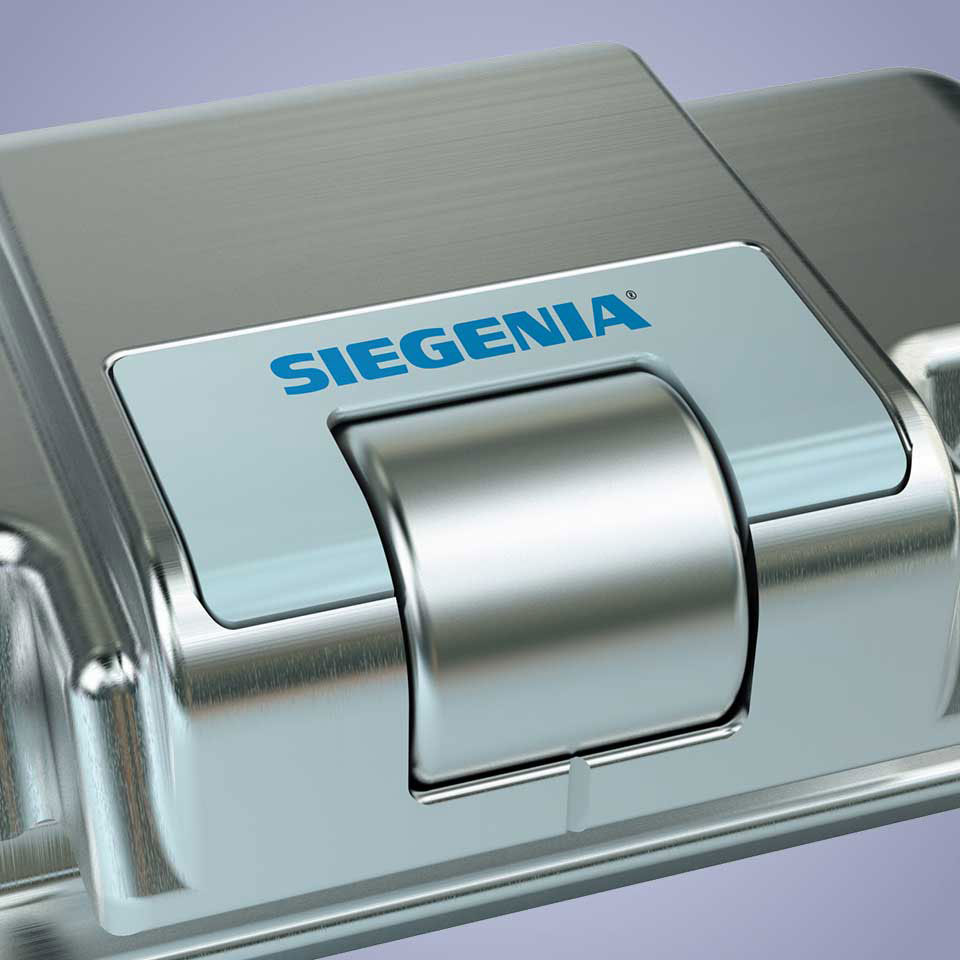

ALU axxent PLUS – hidden hardware for aluminium eurogroove. The solution is equipped with snap-in top stay locking function in the tilt position. Placing the sash in the frame effectively facilitates the sash lifter. Hinges with a load capacity of 150 kg guarantee proper safety. Possibility to replace standard microventilation with summer-winter night vent – a popular solution in PVC systems.

Sash lifter for Premium 86 US windows.
ALU axxent PLUS roller

AERO TECHNOLOGY

Profile insulation technology AERO guarantees the construction excellent thermal parameters. A special insert in the frame is made of aerorgel (highly insulating material). The heat transfer coefficient Uw for the reference window is 0.78 W/m 2K (with SUPERtermo 0.5 triple glazing and a warm Thermobar spacer bar).

Premium 86 windows as an ideal solution for elegant buildings.

AERO TECHNOLOGY

Profile insulation technology AERO guarantees the construction excellent thermal parameters. A special insert in the frame is made of aerorgel (highly insulating material). The heat transfer coefficient Uw for the reference window is 0.78 W/m 2K (with SUPERtermo 0.5 triple glazing and a warm Thermobar spacer bar).

Sections

Section of Premium 86 US window with an invisible sash from the outside.
Window profile - external view
  1. Assembly width – 85 mm (frame/sash)
  2. Outer gasket (always black)
  3. AERO – profile insulation technology
  4. Frame depth – 77 mm
  5. Sash depth – 81 mm

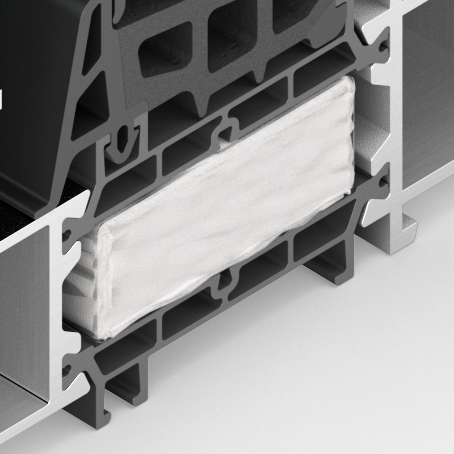

Frame insert made of aerogel.
AERO
Section of a window with a hidden sash, view from the inside.
Window profile - internal view

Colour

Colour versions of profiles used in the production of Premium 86 US windows are created using one of two processes – powder coating or sublimation. The first one guarantees a smooth coating – without imperfections such as stains or wrinkles – in various RAL shades. The second allows to create aluminium constructions in wood-like colours. The variety of available options allows you to give the joinery a unique character.

Parameters

for reference window
Uw = 0.82 W/m²K with CHROMATECH spacer bar
Uw = 0.78 W/m²K with Thermobar spacer bar

Lt = 74%

for SUPERtermo 0.5
with a new, brighter low thermal emissivity coating

G = 53%

for SUPERtermo 0.5
with a new, brighter low thermal emissivity coating

Withstands a pressure of 1600 Pa caused by a wind speed of 182 km/h.

It does not pass water in heavy rain with a wind speed 164 km/h.

Rw = 35 dB to 46 dB
depending on the acoustic glass
