Patio HST 77 section.

Patio HST 77

Sliding door system with impressive construction capabilities. Offered only in the HI variant, which minimizes the risk of thermal bridges formation, ensuring high protection against heat loss. The solution is available in a version with a standard frame and in the MONO variant – with fixed glazing in the frame.

Patio HST 77 profiles allow to create exclusive solutions with large dimensions. The materials and technical solutions used help to achieve a very good thermal and acoustic protection. Thanks to its properties, this system is ideal for single-family buildings and comfortable apartments or hotels.

Patio HST 77 profiles allow to create exclusive solutions with large dimensions. The materials and technical solutions used help to achieve a very good thermal and acoustic protection. Thanks to its properties, this system is ideal for single-family buildings and comfortable apartments or hotels.

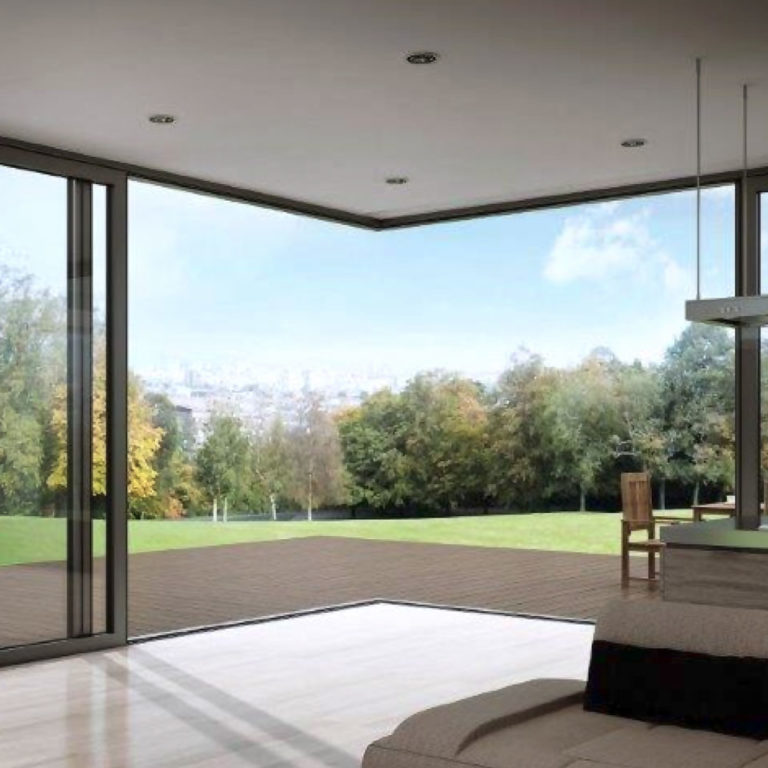

Patio HST 77 in the version with an open corner.

FULL VIEW

Patio HST 77 system allows to create a unique solution – a completely open corner.

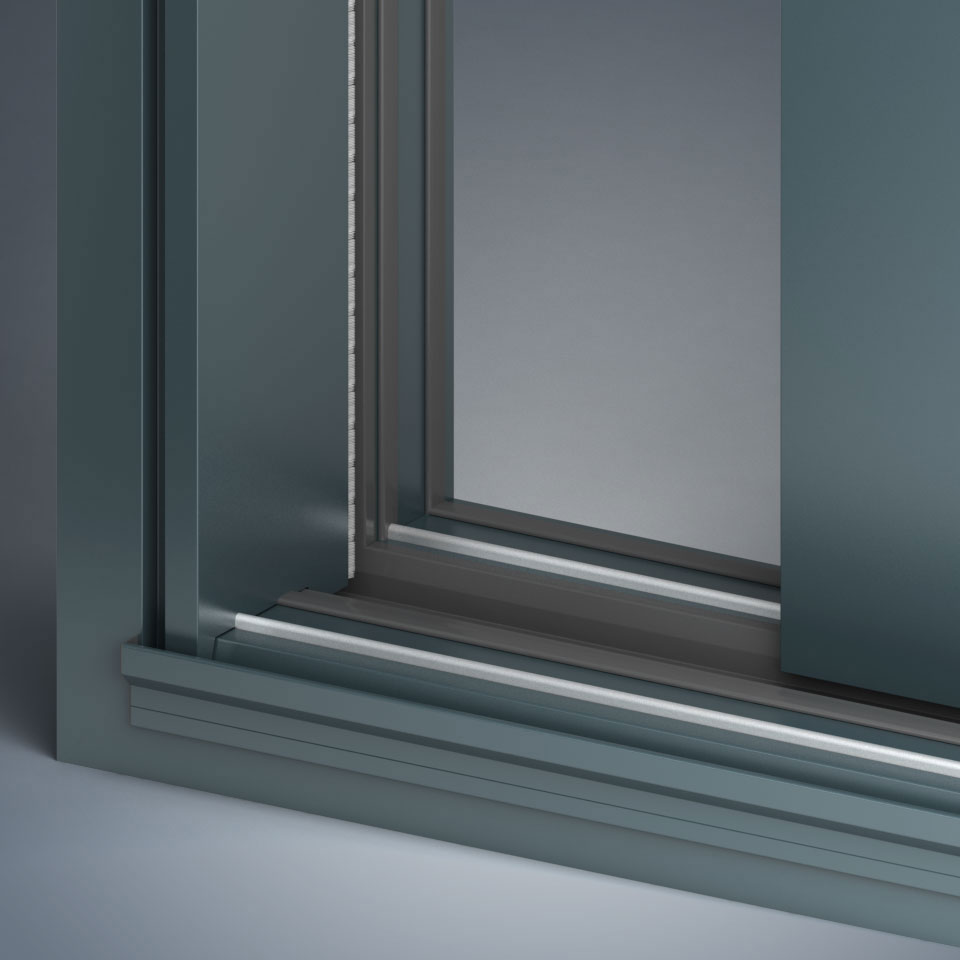

Patio HST 77 in scheme D.
Dimensions: H=3000 mm, A=5450 mm, B=1185 mm. Exterior view.

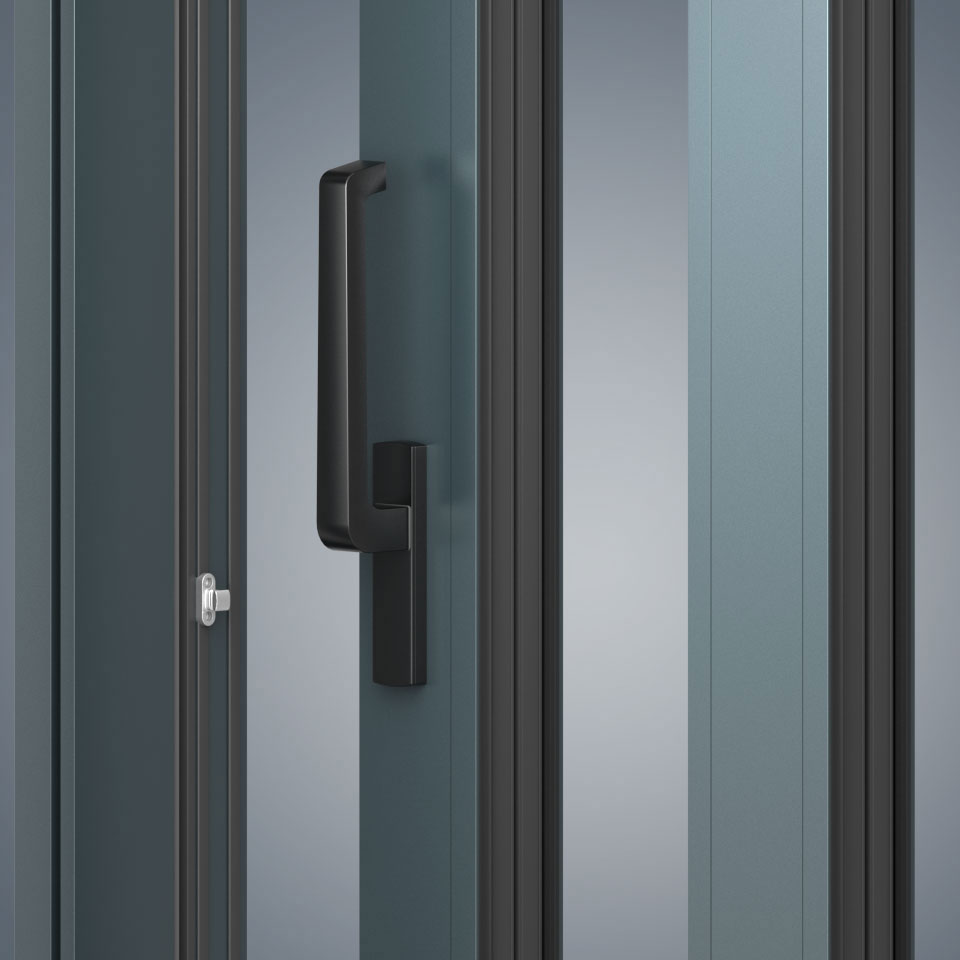

Aluminium Patio HST 77 - scheme D.
Dimensions: H=3000 mm, A=5450 mm, B=1185 mm. Internal view.

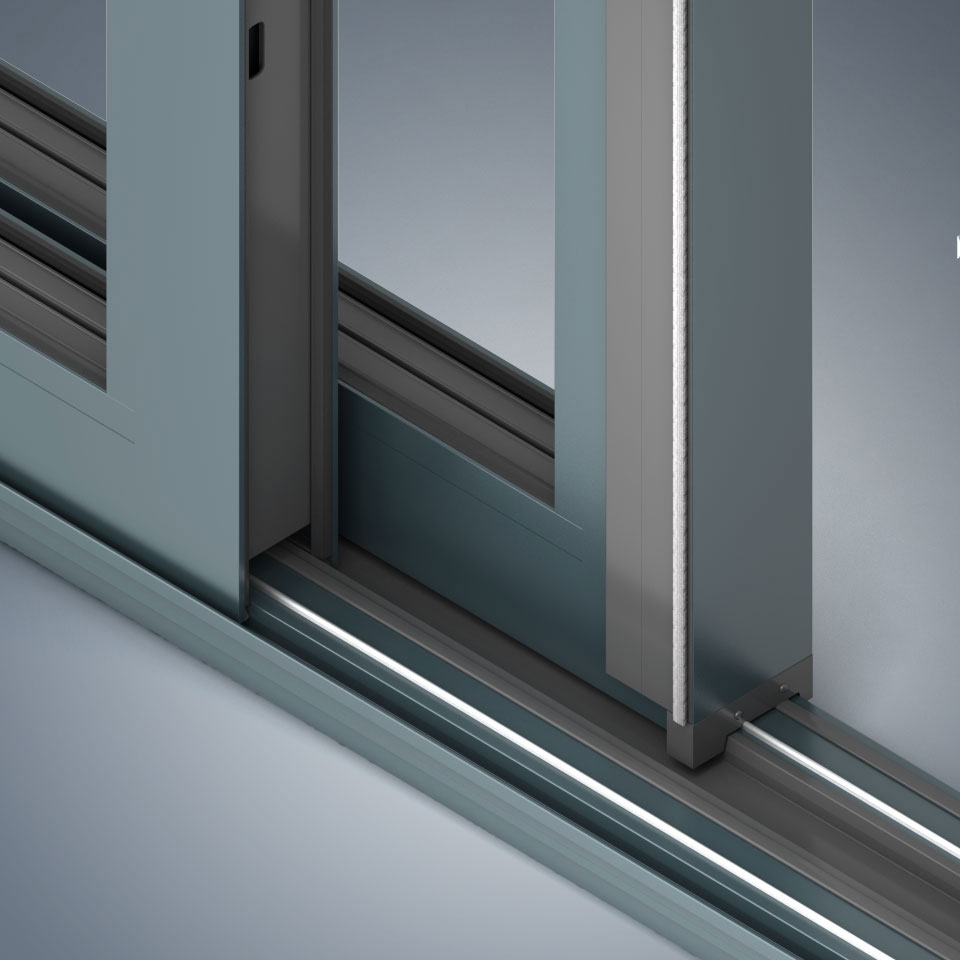

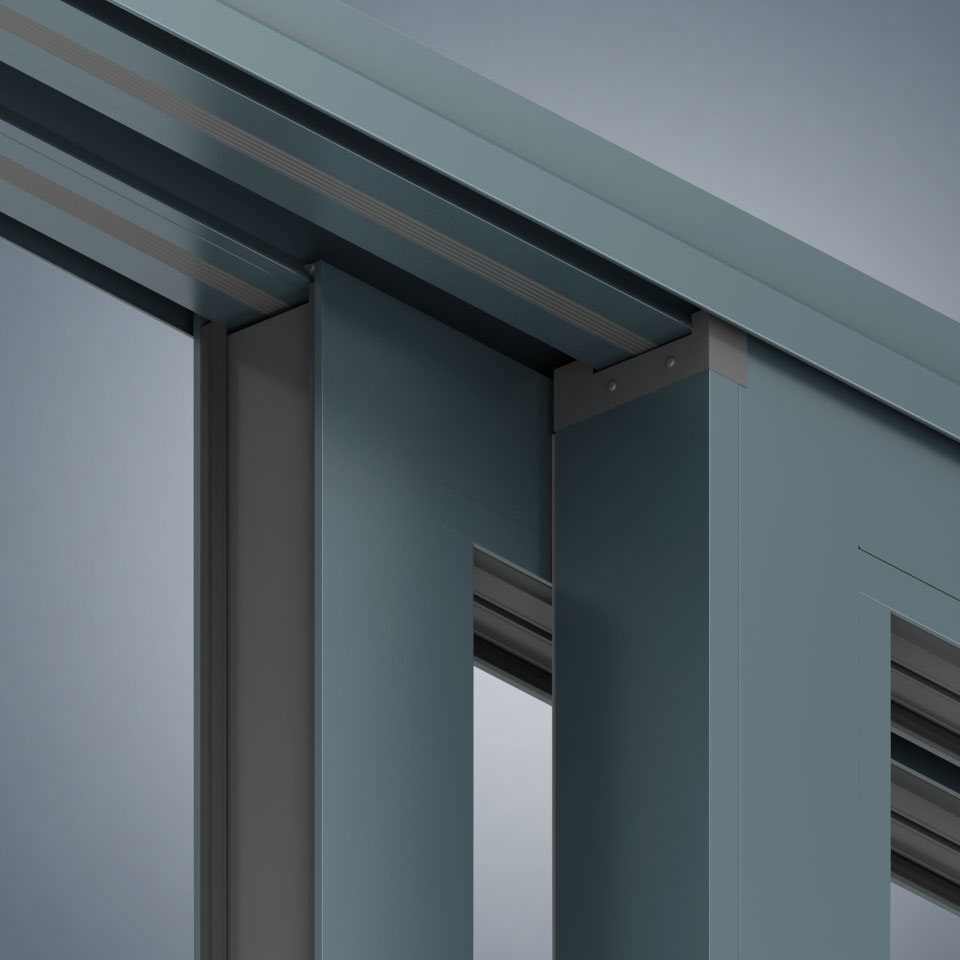

FREEDOM

Patio HST 77 lift and slide door in the scheme D provides the freedom to choose the active sash. The construction is matched to Premium 86 door (fully glazed in the presented solution).

Patio HST 77 in the MONO version.
Dimensions: H=2555 mm, A=5920 mm, B=1355 mm. Exterior view.

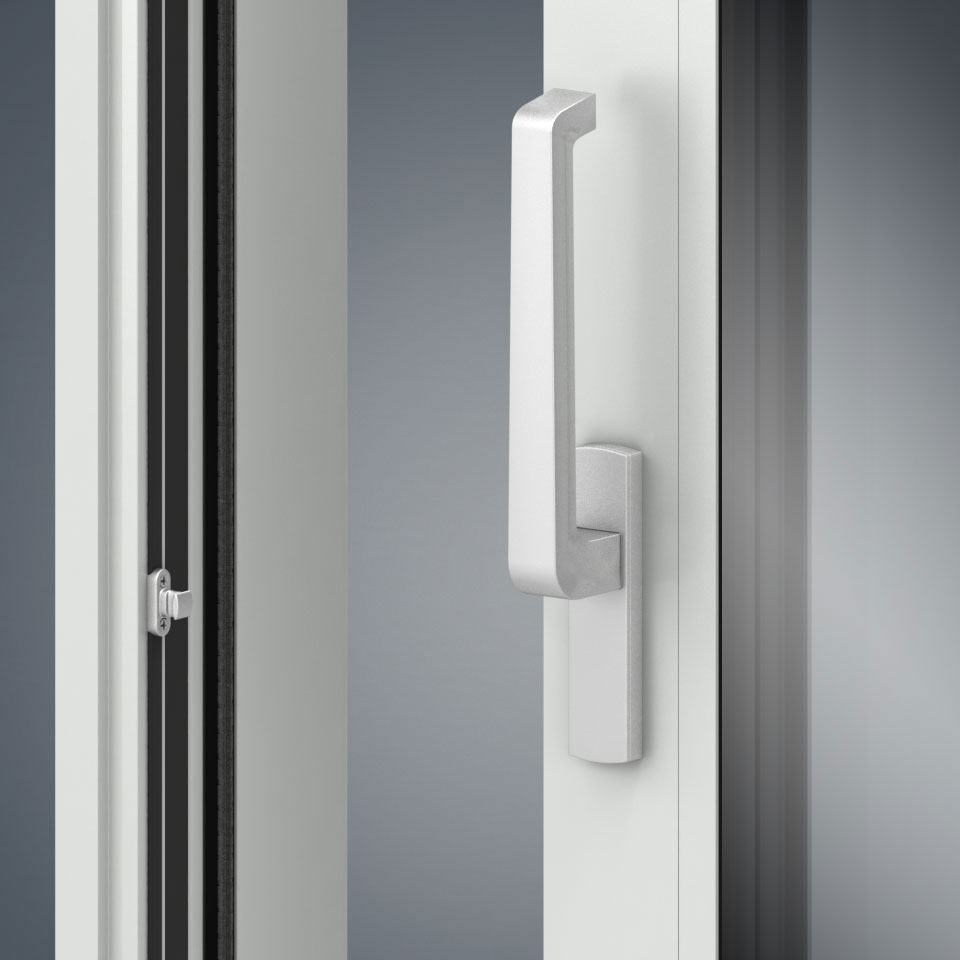

Patio HST 77, MONO variant, scheme A.
Dimensions: H=2555 mm, A=5920 mm, B=1355 mm. Internal view.

PANORAMA

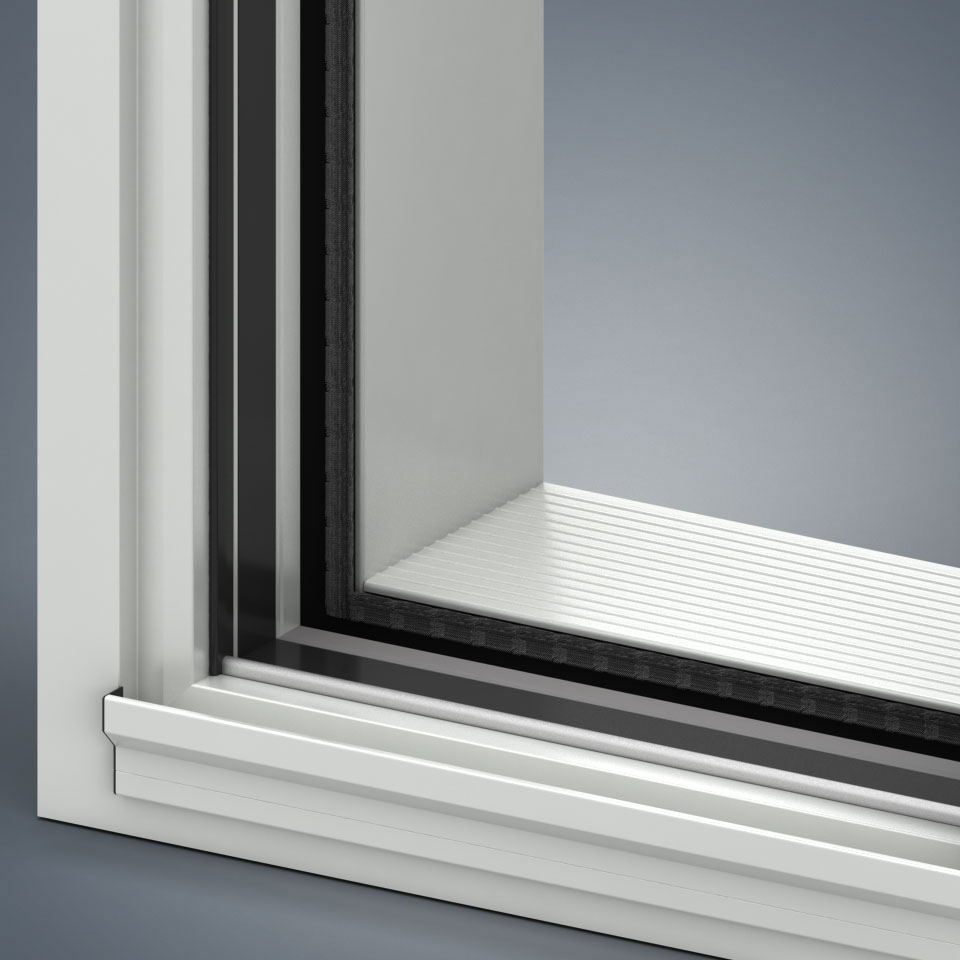

Patio HST 77 MONO system in scheme A allows to obtain a construction with an impressive width (6 meters). The solution fits perfectly with Premium 86 balcony (a low threshold was used in the presented solution).

Patio HST 77 MONO with balcony Premium 86 US.
Dimensions: H=2555 mm, A=5850 mm, B=1185 mm. Internal view.

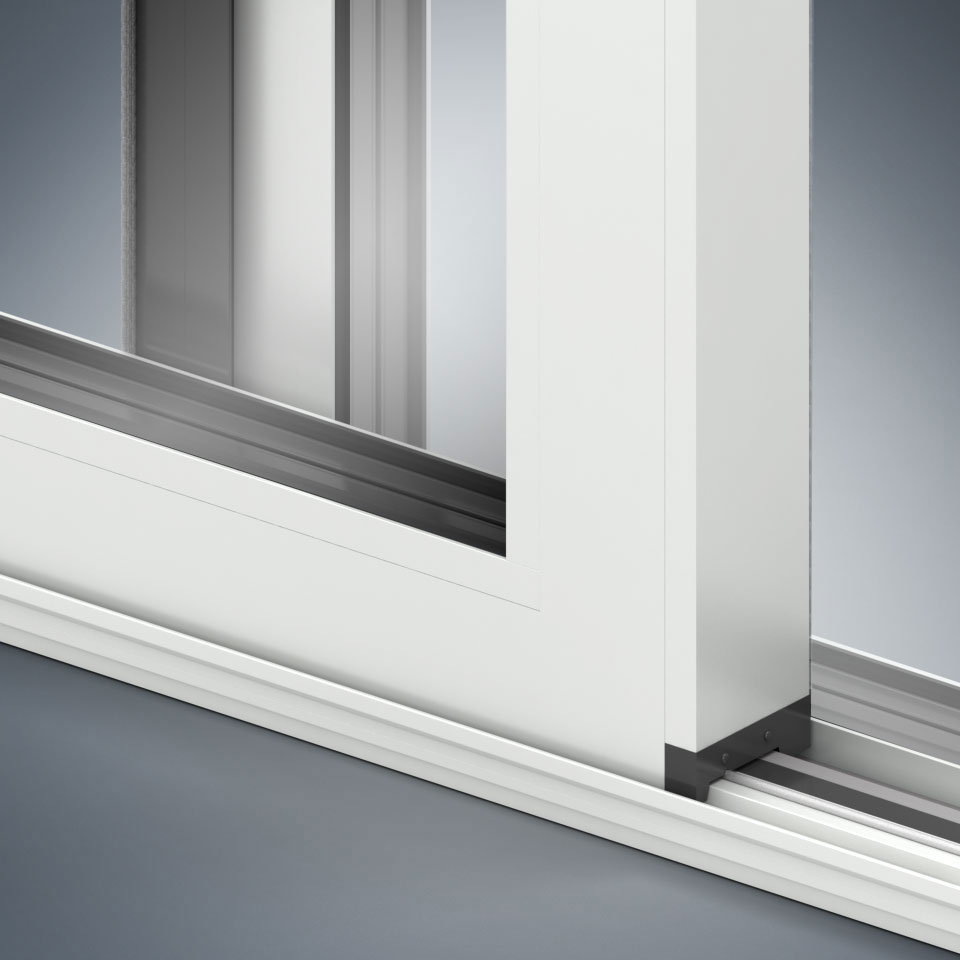

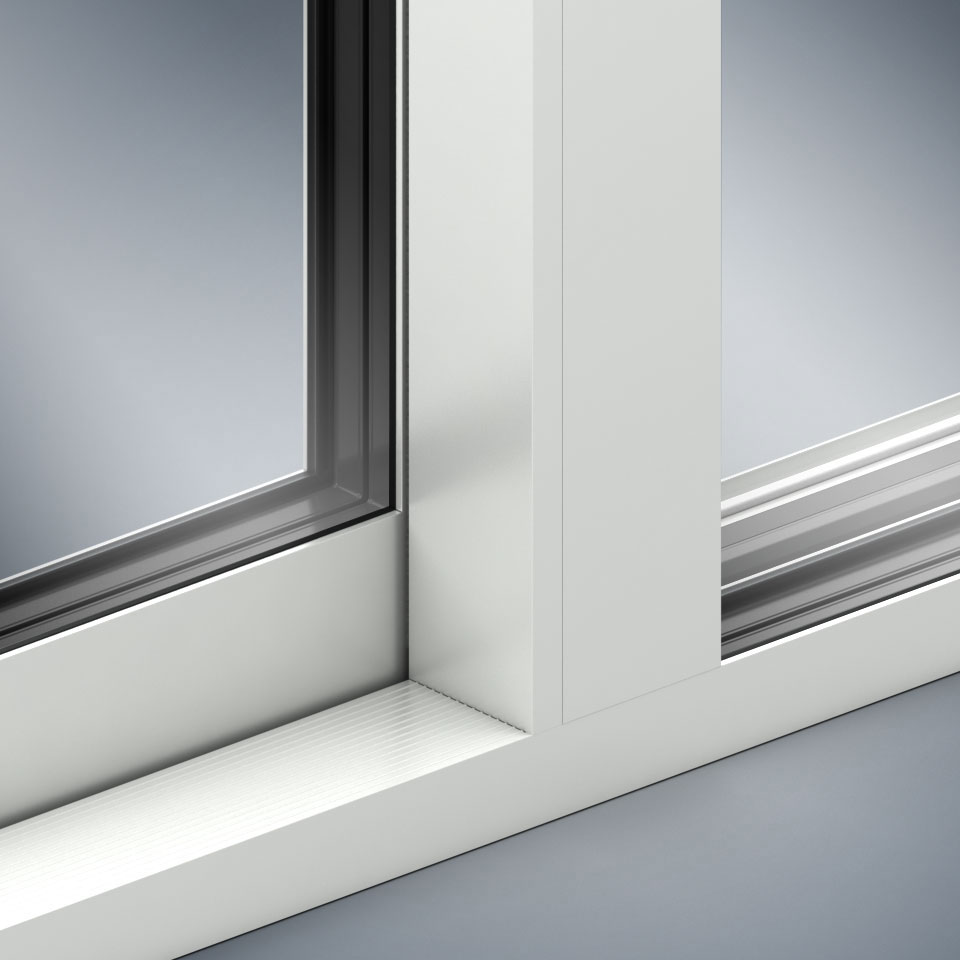

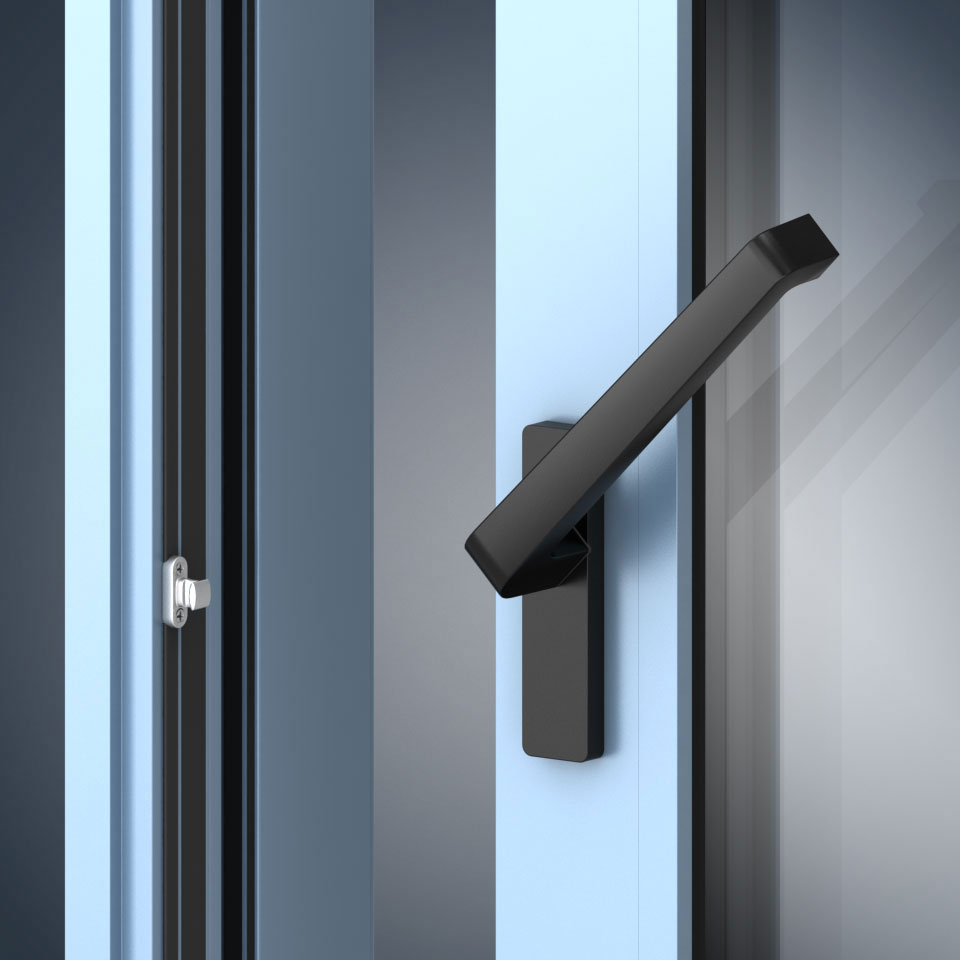

Patio HST 77 Mono with a balcony with a hidden sash.
Dimensions: H=2555 mm, A=5850 mm, B=1185 mm. Exterior view.

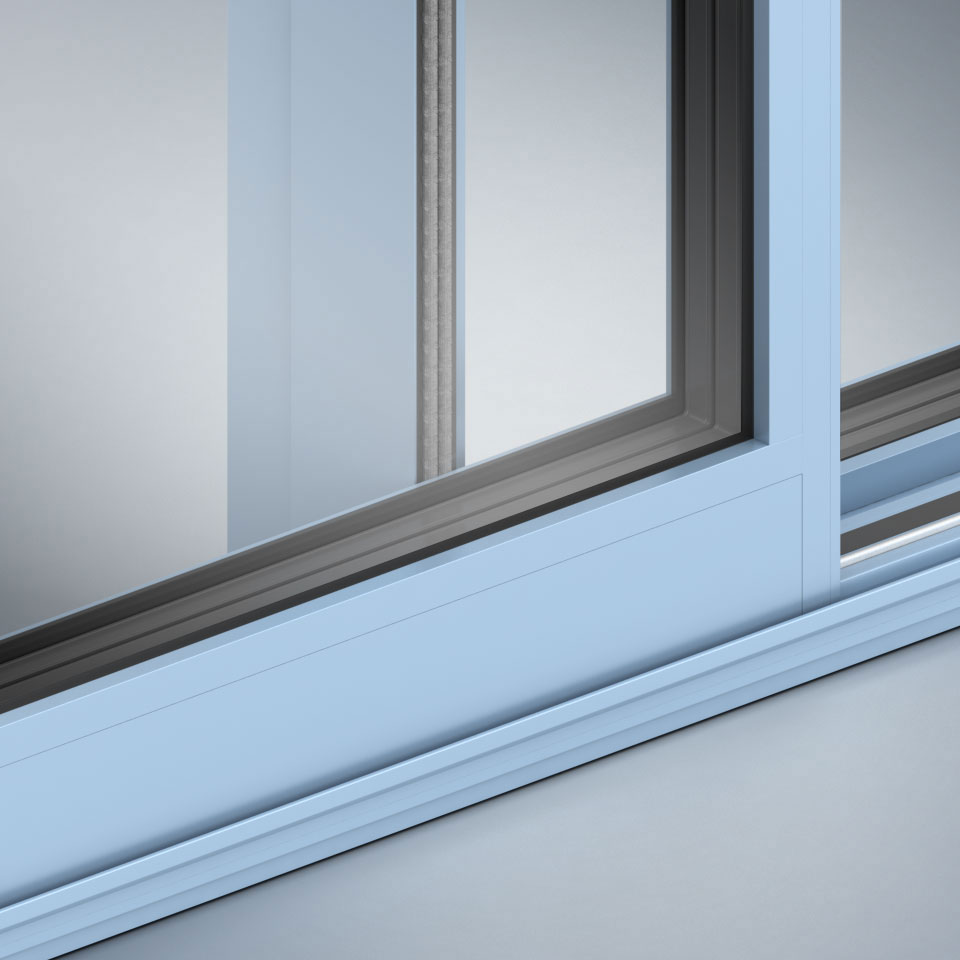

LIGHTNESS

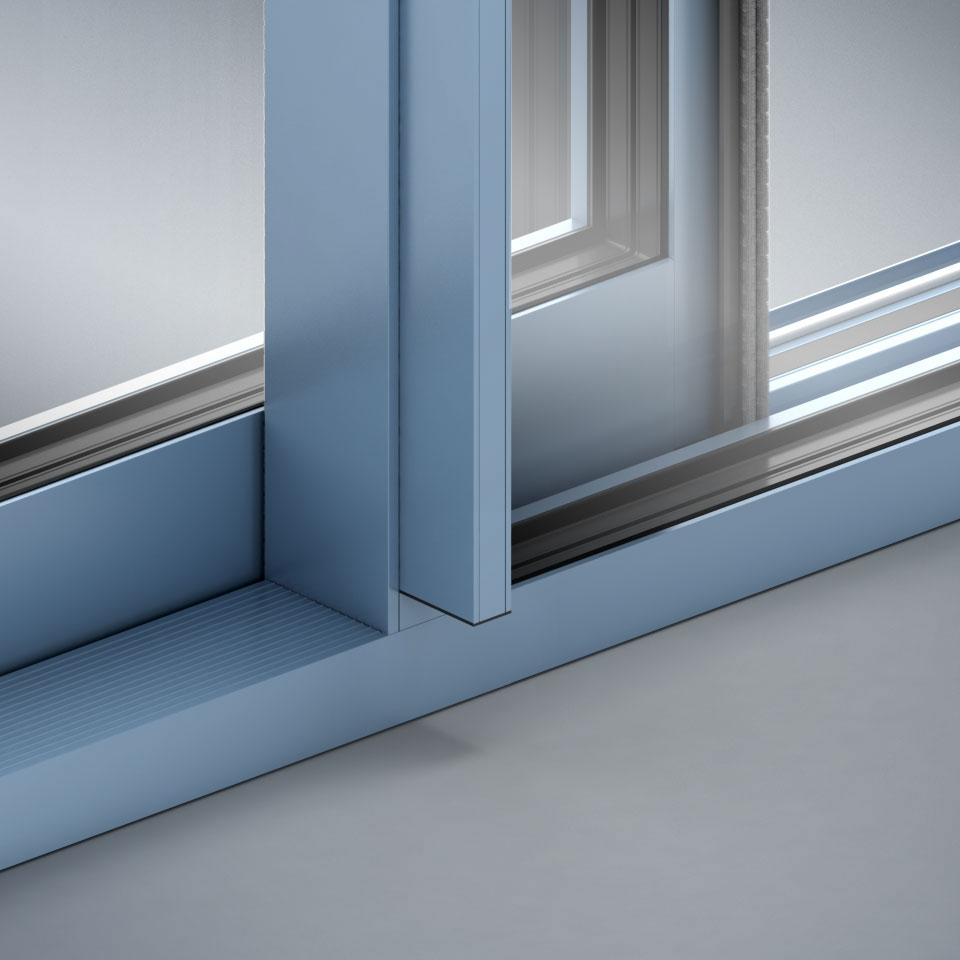

The narrow mullion in Patio HST 77 MONO in scheme A provides exceptional lightness of the entire structure, the width of which is almost 6 m. The solution fits perfectly with Premium 86 US balcony (with the sash not visible from the outside).

Colour

Powder coating is a process in which powder paint is applied to an aluminium profile using the electrostatic spray method. The powder-coated element is placed in an oven heated to a temperature of about 200°C. This causes the powder to melt and then the coating to harden. Powder coating makes it possible to obtain a durable and smooth coating with no defects in the form of wrinkles or stains. Wood-like colours are created by transferring the pattern from the foil (with the pigment applied to it) to aluminium profiles in the sublimation process.

Cross-sections

Section of Patio HST 77 lift and slide door.
Standard frame
  1. Fixed glazing (FIX) in the door leaf
  2. Powder-coated active leaf
  3. Trolley rail
  4. Floor level
  5. Wing carriage
  6. Thermal insulation
  7. Standard frame
  8. Terrace level
  9. Notched external threshold
  10. Fixed wing cover
  11. Thermal insulation
Patio HST 77 with three sashes section.
3 sashes | Standard frame
  1. Extreme permanent glazing (FIX)
  2. Terrace level
  3. Standard wide frame (271 mm)
  4. Inner wing active
  5. Active wing
  6. Floor level
  7. Frame system connection

Cross-sections

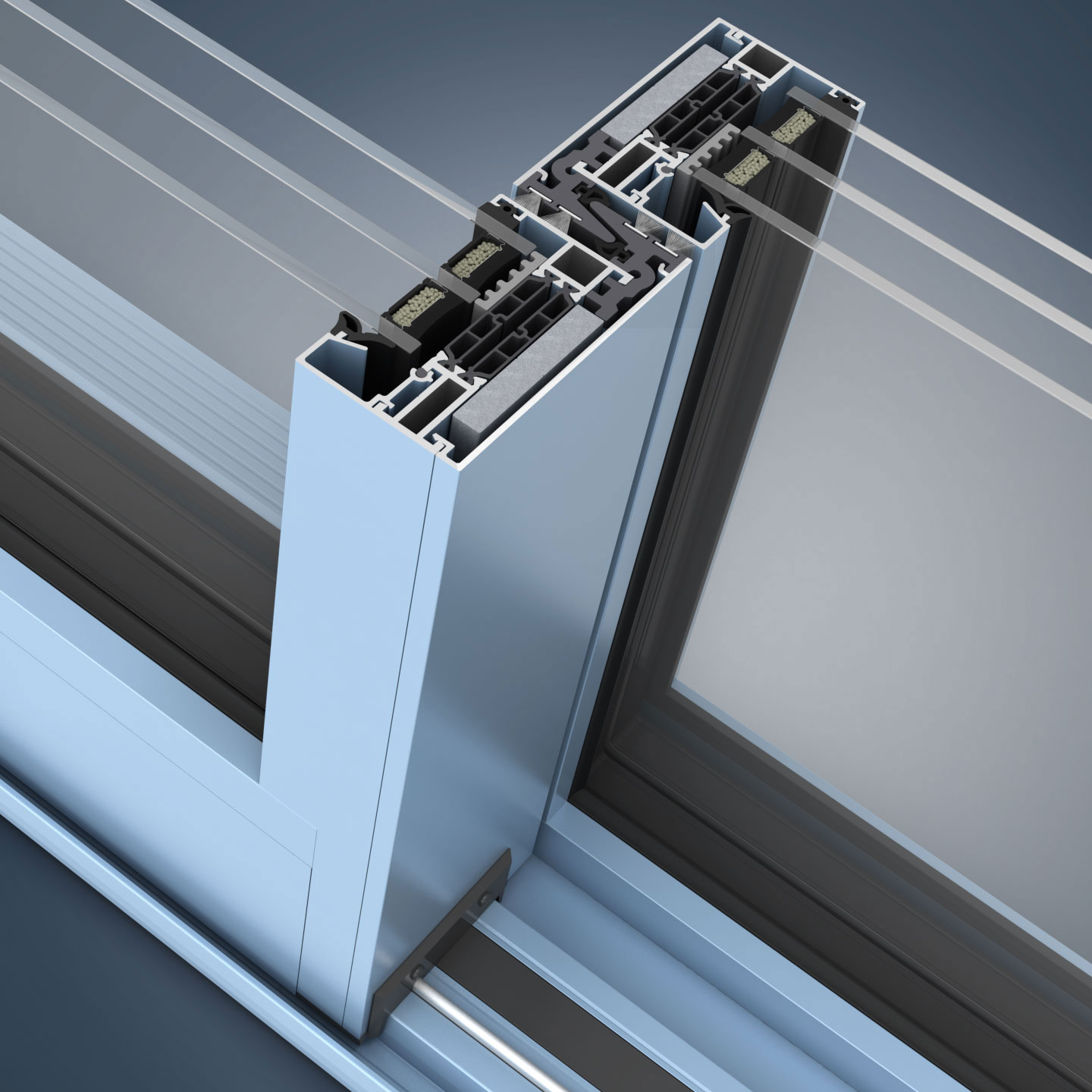

Section of the upper part of Patio HST 77 in the MONO version.
Fixed frame
  1. “Mono” frame (174 mm)
  2. Top drip cap
  3. Active wing
  4. Thermal insulation
  5. Thermal insulation
  6. Thermal break
  7. Fixed glazing (FIX) in the frame
  8. Sealing the wings

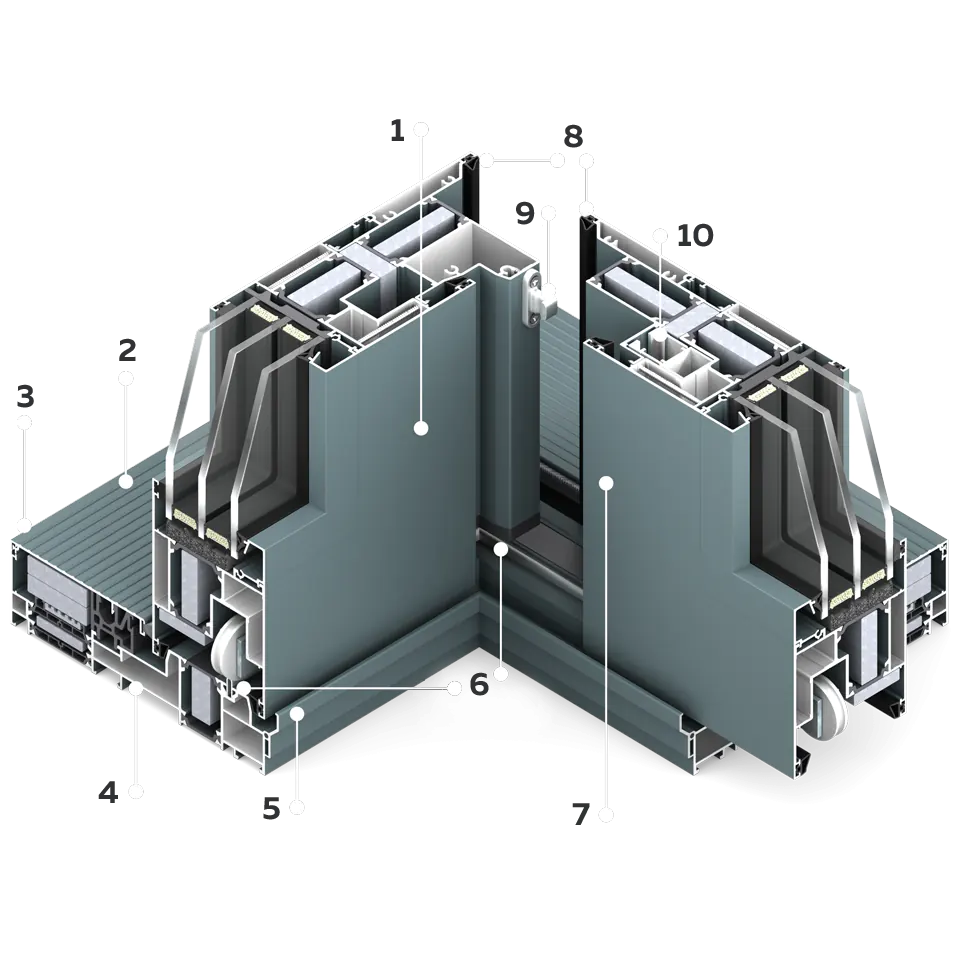

Section of the lower part of Patio HST 77 in the MONO version.
Corner | Fixed frame "Mono"
    1. Active corner wing
    2. Notched external threshold
    3. Terrace level
    4. “Mono” frame (174 mm)
    5. Floor level
    6. Guide rail
    7. Active corner wing
    8. Closing corner seal
    9. Hook the fittings
    10. Fittings hitch socket

PARAMETERS

Ud = 0.84 W/m²K

for 3000 x 2900 mm construction with glass Ug=0.5 W/m²K with Chromatech Ultra spacer bar

Lt = 74 %

for SUPERtermo 0.5 glass
with a new, brighter thermal coating

G = 53%

for SUPERtermo 0.5 glass
with a new, brighter thermal coating

It withstands a pressure of 1600 Pa caused by a wind speed of 182 km/h .

It does not pass water in heavy rain with a wind speed of 112 km/h.

Rw = 35 dB to 46 dB
depending on the acoustic glass
