Features of wood-aluminium windows and balconies
The wood-aluminium joinery is a system at the highest technical level. The combination of two materials saves energy and also ensures safety. On the external side, the aluminium coating provides protection against the influence of atmospheric conditions. On the inside, however, the warm, living wood provides protection against heat loss. Currently manufactured wooden windows are not only characterised by very good technical parameters, but also exceptional durability. The use of this material helps to create a pleasant, homely atmosphere. Aluminium, on the other hand, is maintenance-free, i.e. it requires no maintenance. In addition, it is distinguished by its stability and lightness. Wood-aluminium joinery is the perfect solution for wood lovers who want to avoid the necessary maintenance.
Wood-aluminium joinery variants

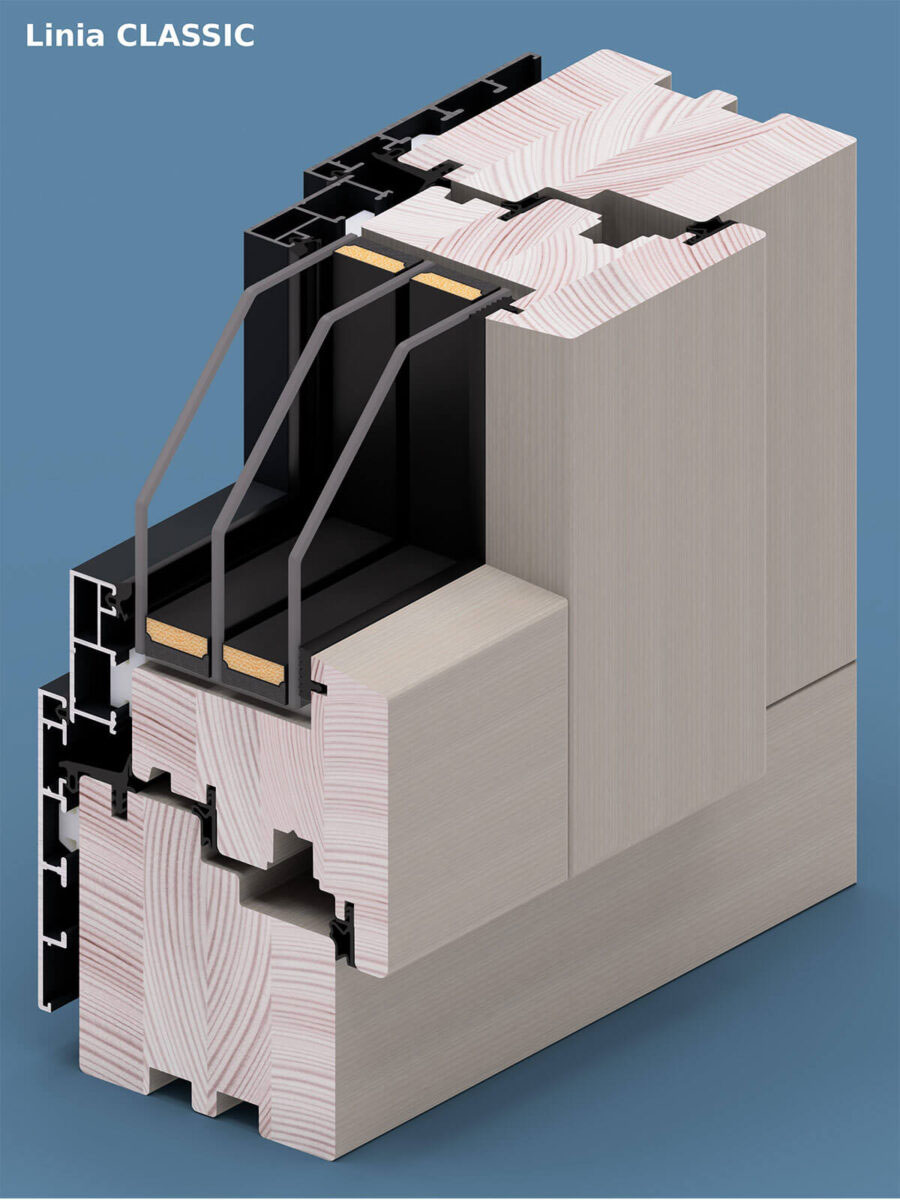

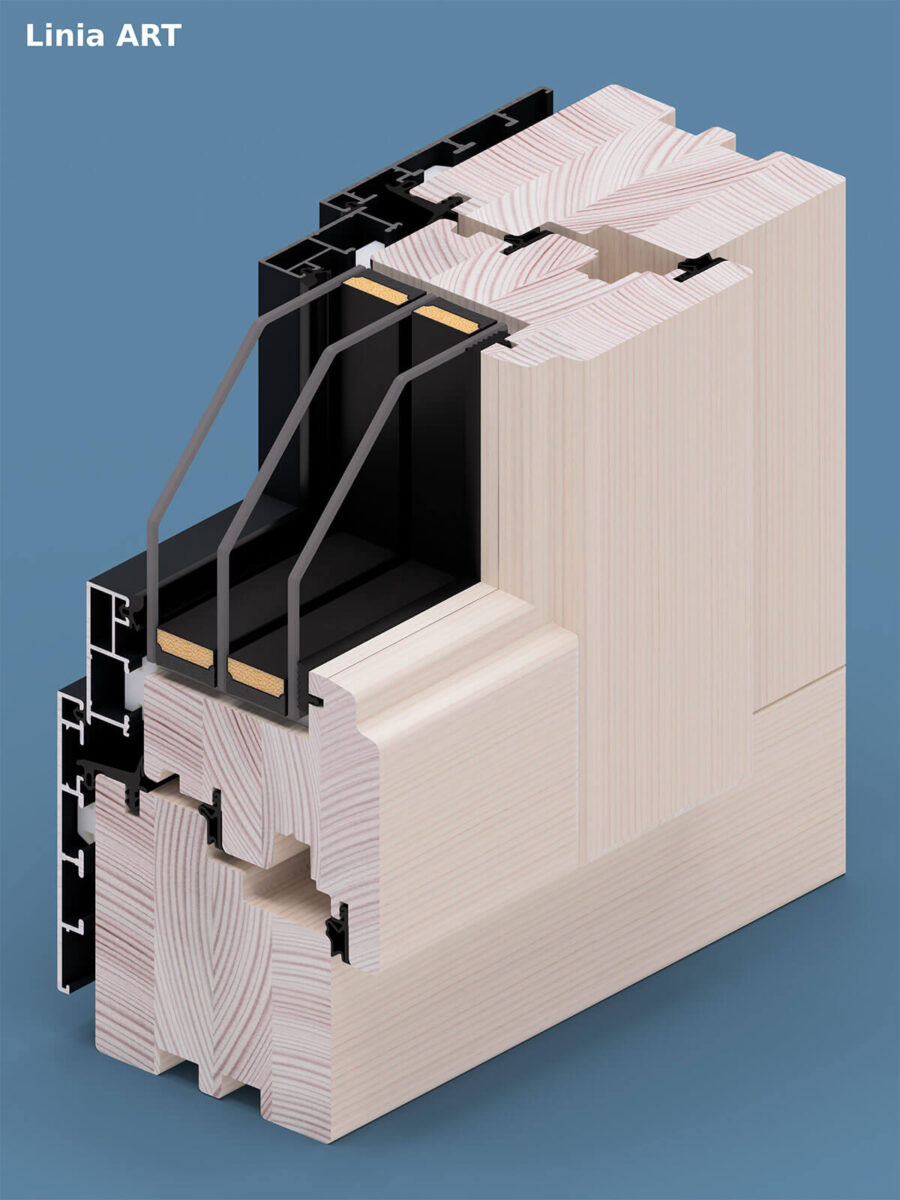

Wood-aluminium windows and balcony doors from the MS Windows and Doors offer are available in three product lines – Modern, Classic and Art. The features of the various options are shown in the graphics below.
The difference between the available options is the appearance of the glazing rim. The extensive assortment makes it possible to achieve a construction which matches both the facade of the building and the preferred style of interior design.
Thicknesses of frames and sashes

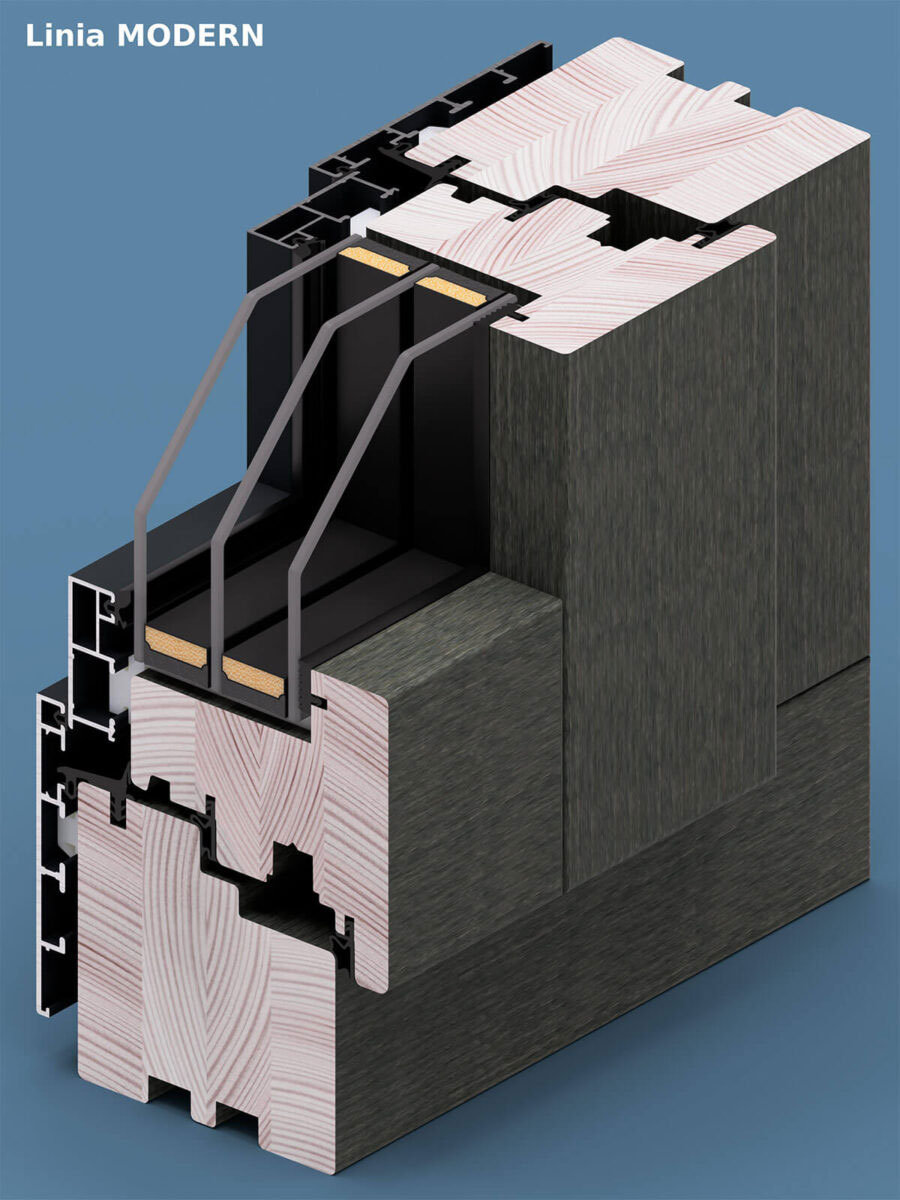

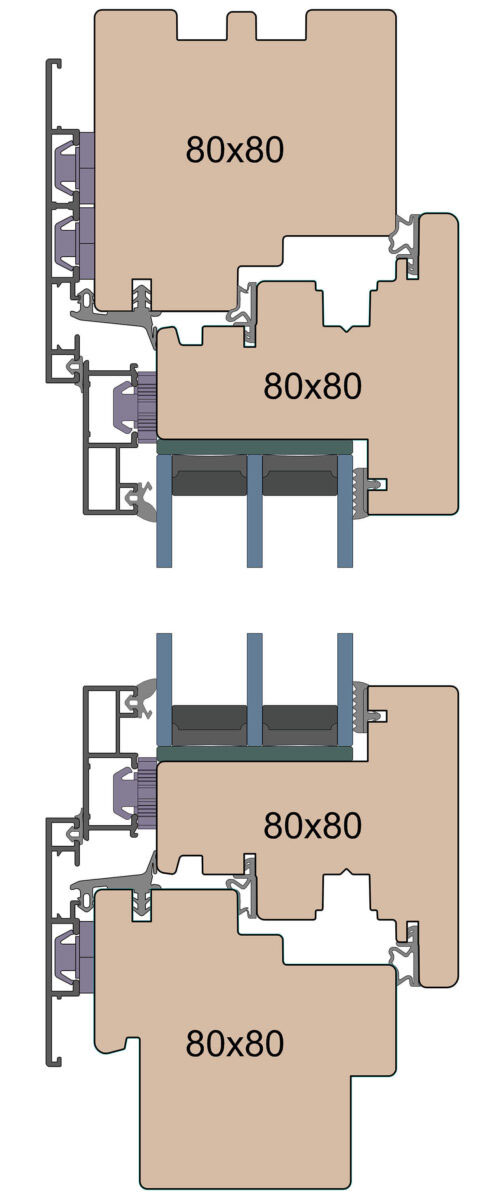

In the case of wood-aluminium windows and balcony doors, two thicknesses of sashes and frames are available – 68 and 80 mm. Both variants appear in each of the product lines presented above. The graphic below shows a section of the joinery from the Modern line. The profile shown is 80 mm thick.
Types of aluminium cladding and wooden profiles
Modern wooden joinery systems with aluminium cladding are a solution that perfectly fits in with the trends of modern architecture. These products are characterised above all by original design, exceptional durability and increased resistance to adverse weather conditions.

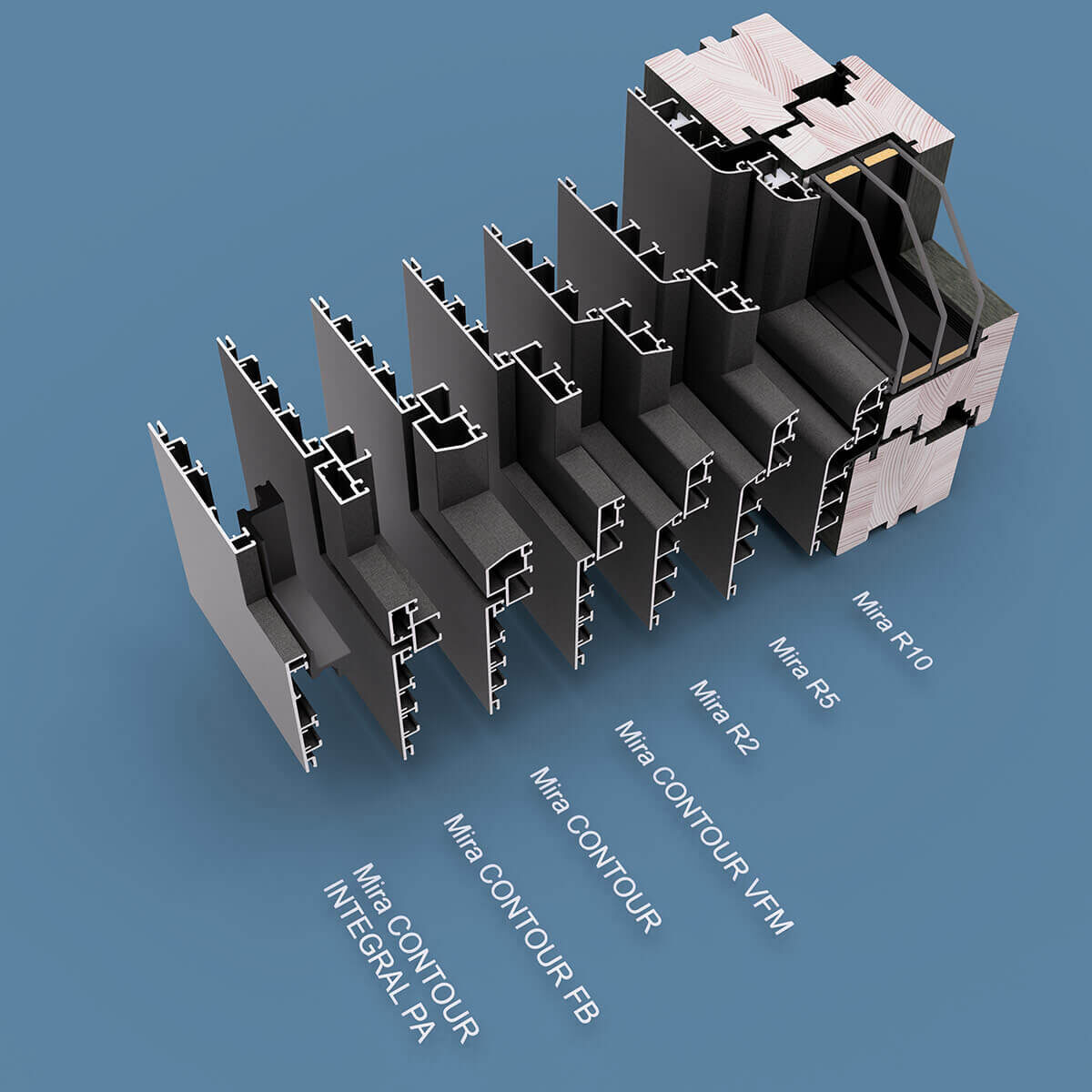

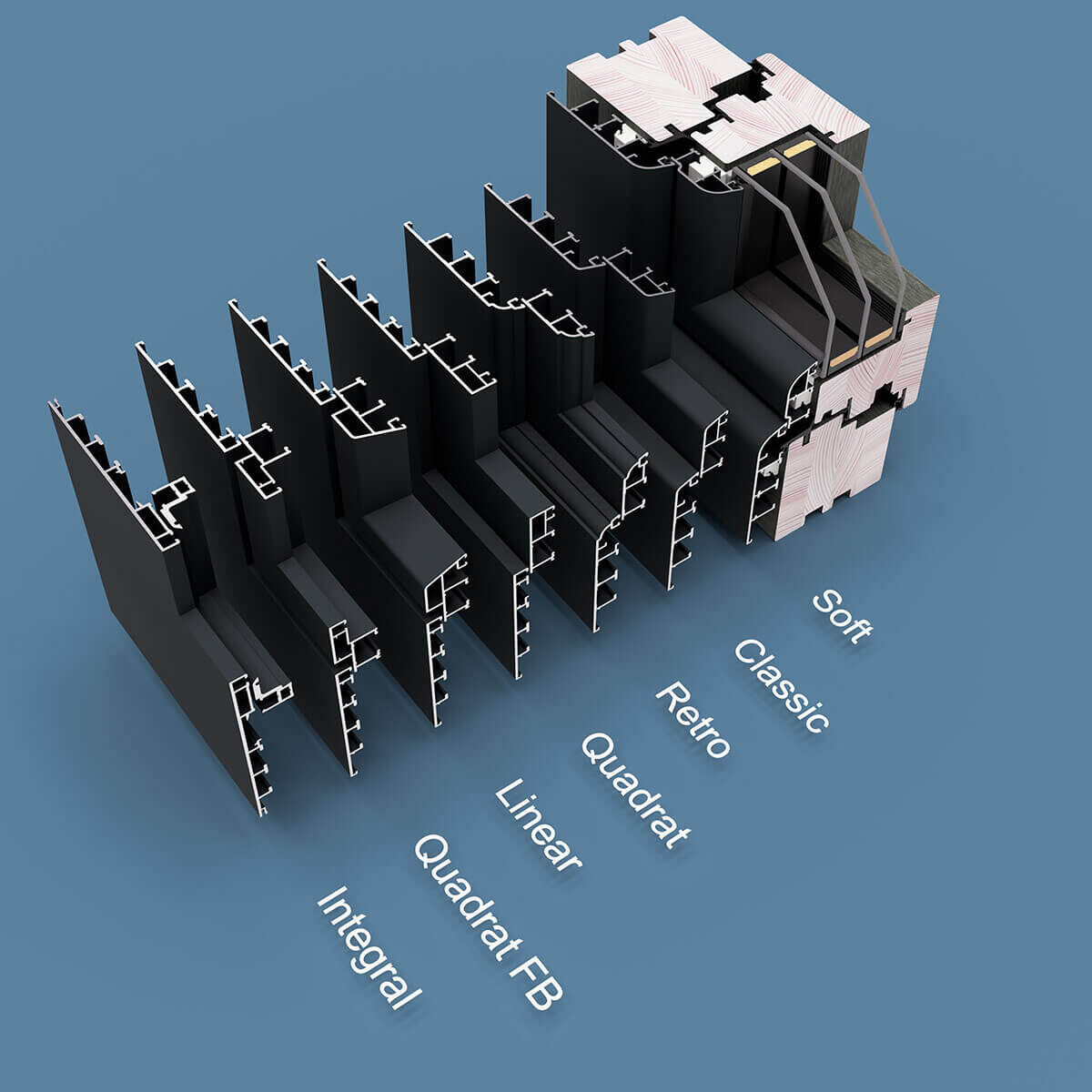

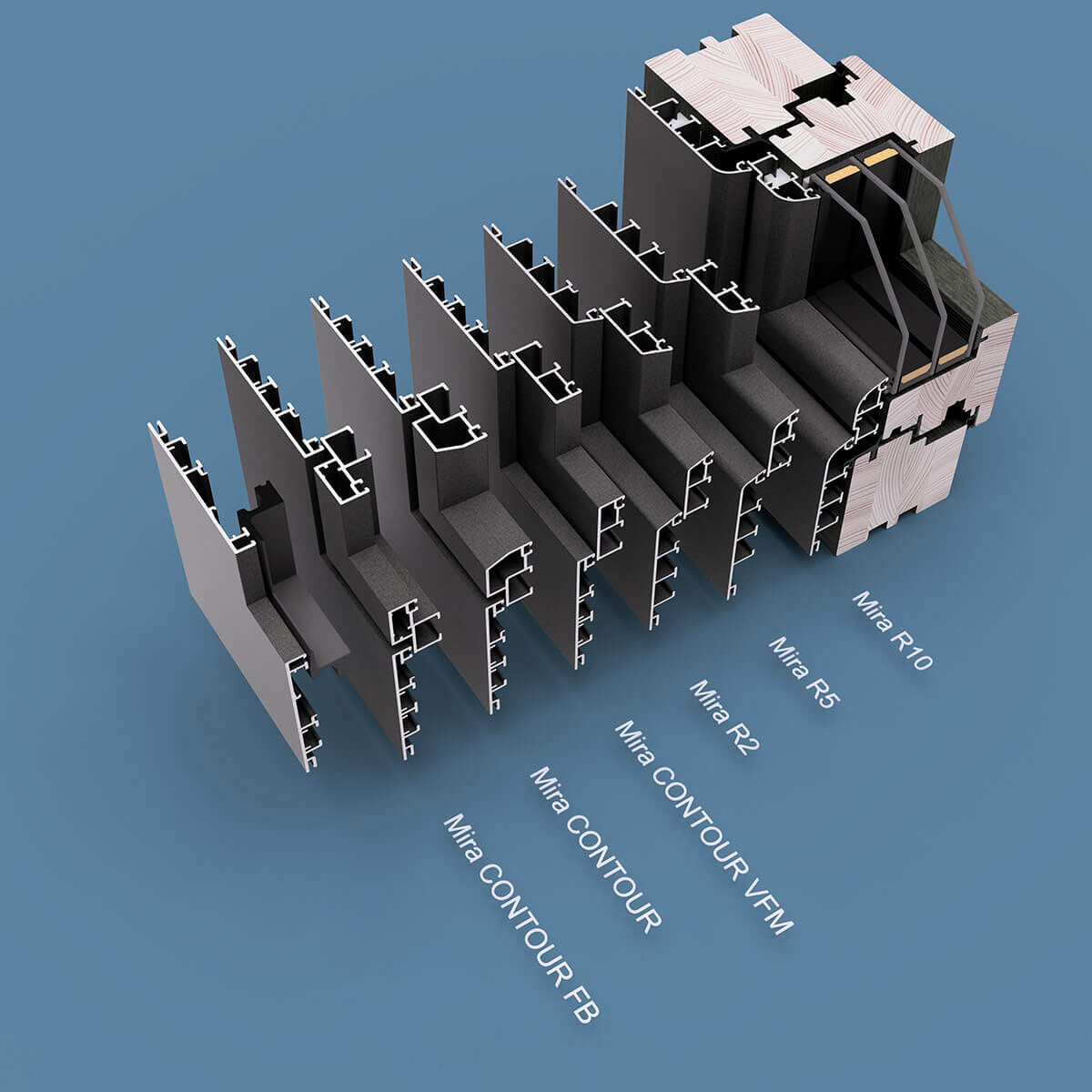

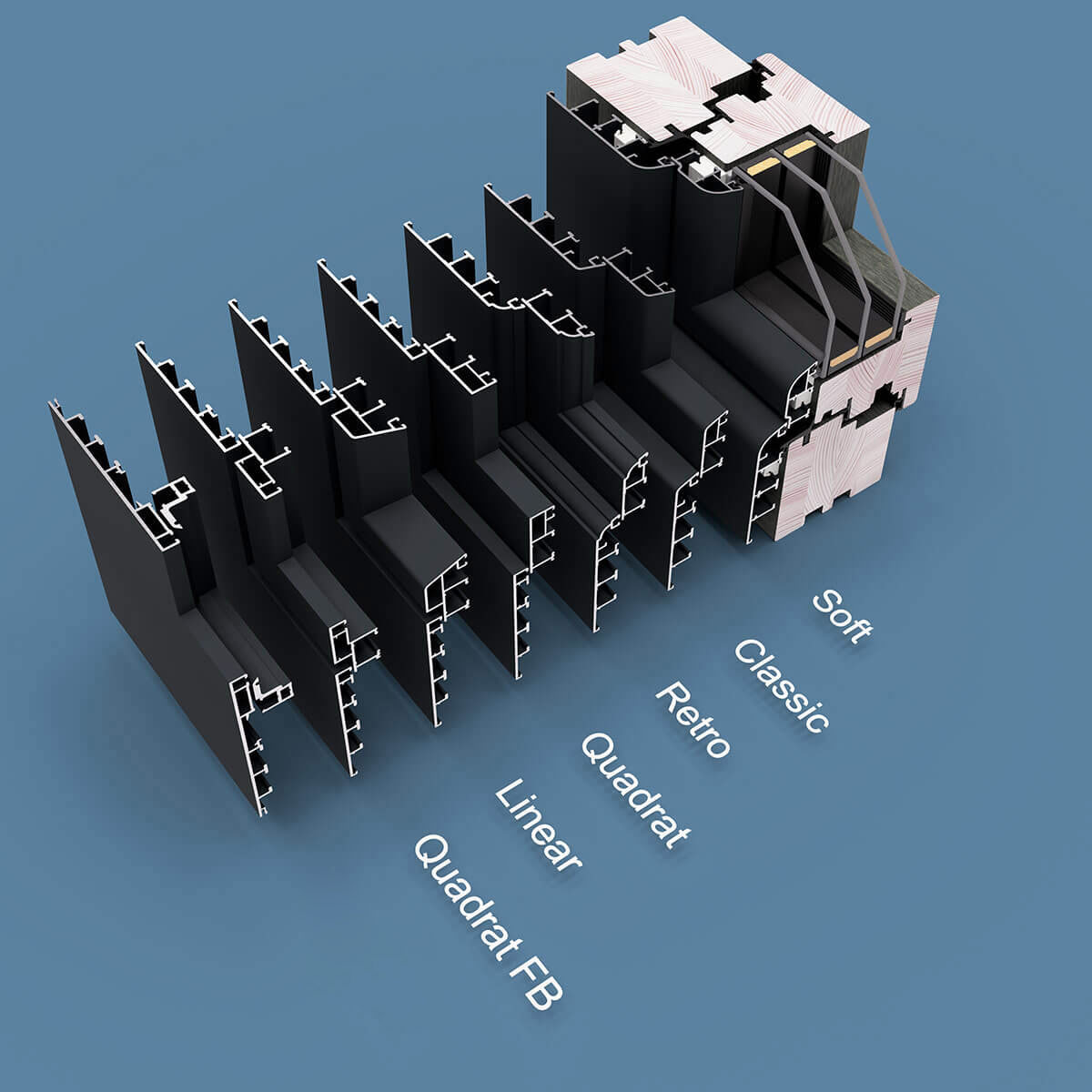

The extensive range of aluminium profiles allows to match the style of windows and doors to any project, from modern, cubist forms to industrial buildings. The use of cladding from renowned companies – Aluron and Gutmann – makes it possible for the MS Windows and Doors offer to create a product adjusted to each type of room. It is worth noting that the construction will meet not only aesthetic expectations but also rigorous technical requirements.
The profile with aluminium cladding is available in two options which allows all customers’ aesthetic preferences to be met. The MS Windows and Doors assortment includes a full range of standard option with a frame gasket. The most popular profiles are also available without an additional gasket. The pictures below show the 80 mm profile with the Classic system cladding in two variants – with and without a gasket.
Thanks to the variety of aluminium cladding and two profile thicknesses, it is possible to install glazed units with a thickness of up to 60 mm. This results in a much better thermal performance of the structure.
|Profile thickness||Cladding||Max. glazed unit thickness|
|68 mm||Integral, Quadrat FB (Aluron)|
Contour FB, Contour Integral FB (Gutmann)
|68 mm||Other cladding||44 mm|
|80 mm||Integral, Quadrat FB (Aluron)|
Contour FB, Contour Integral FB (Gutmann)
|80 mm||Other cladding||56 mm|

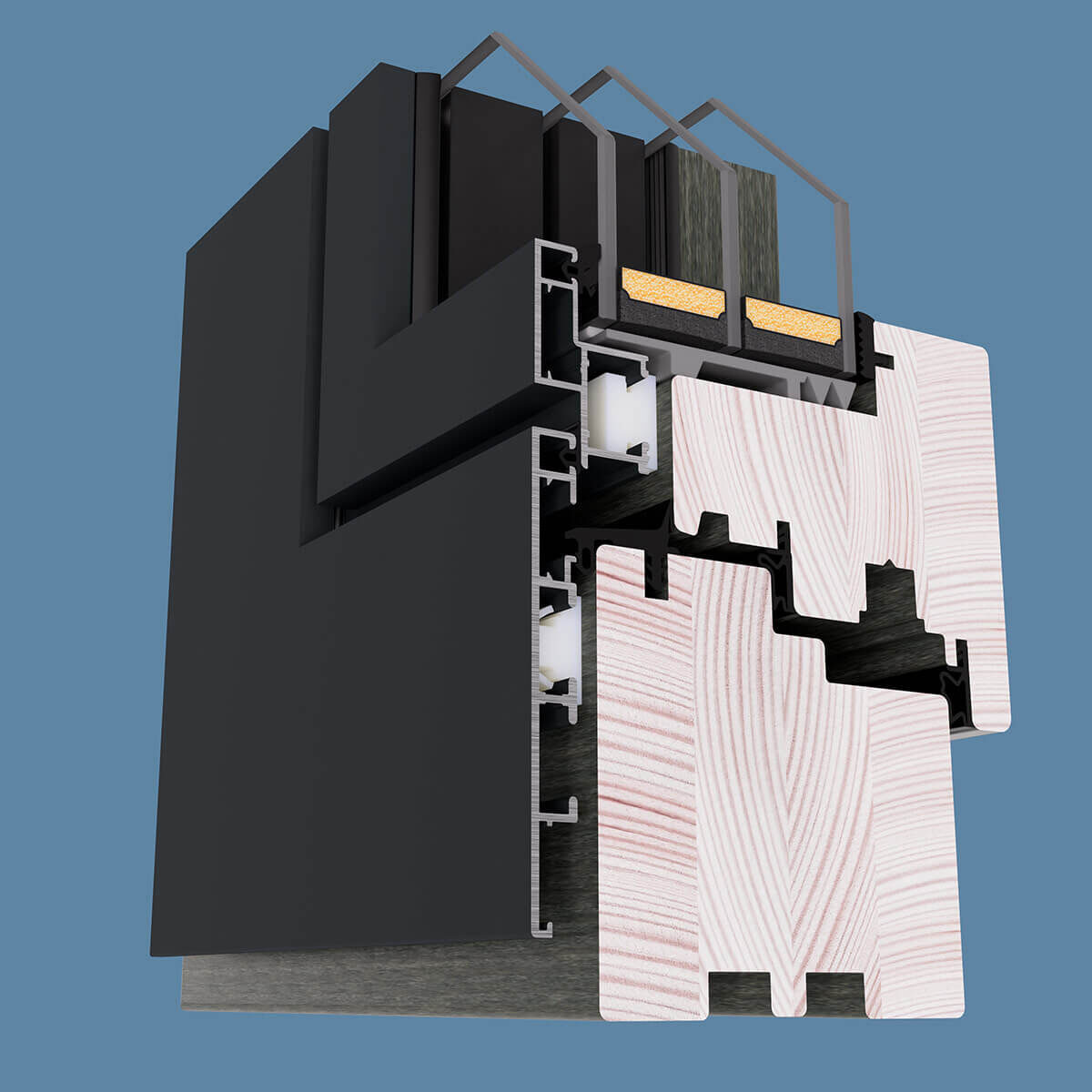

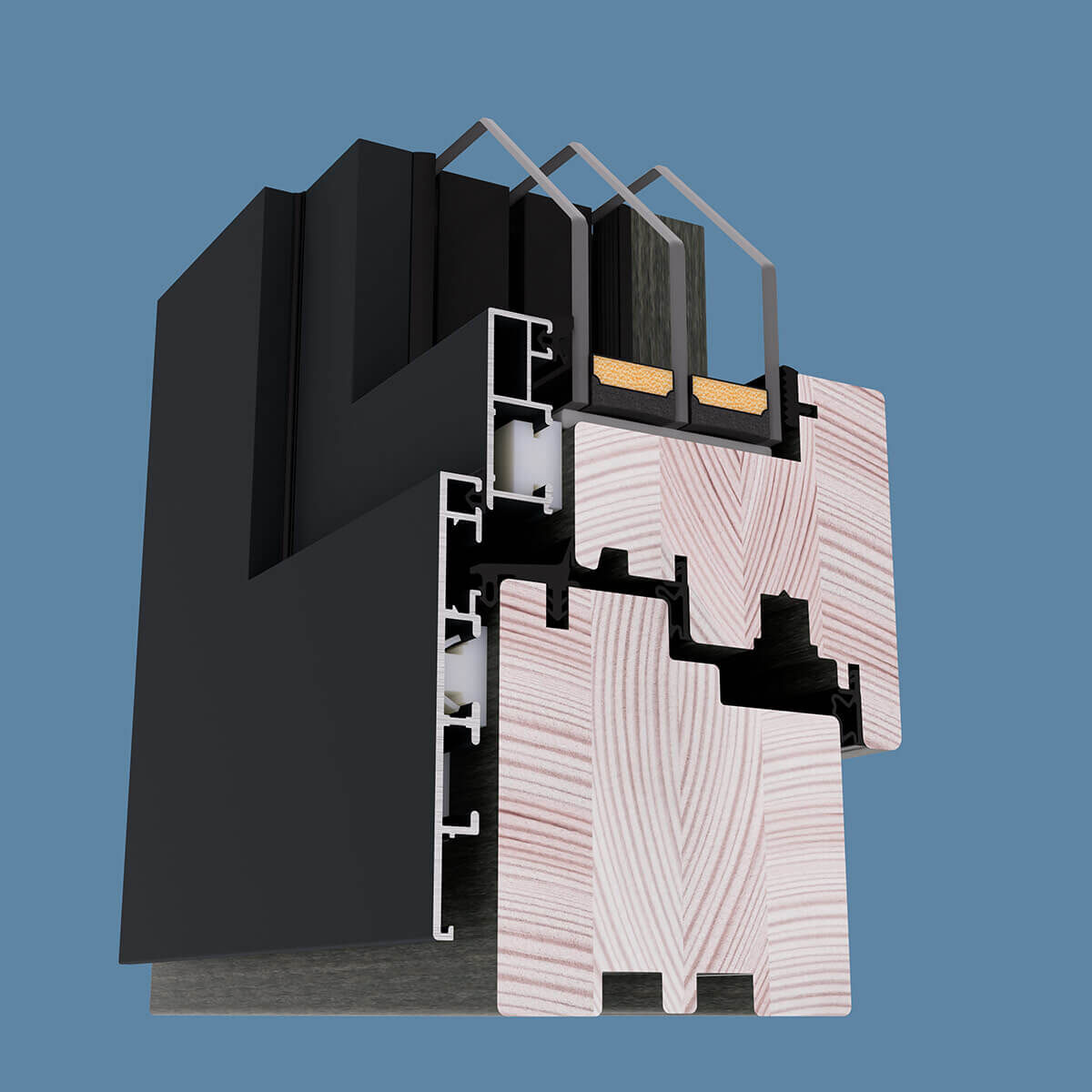

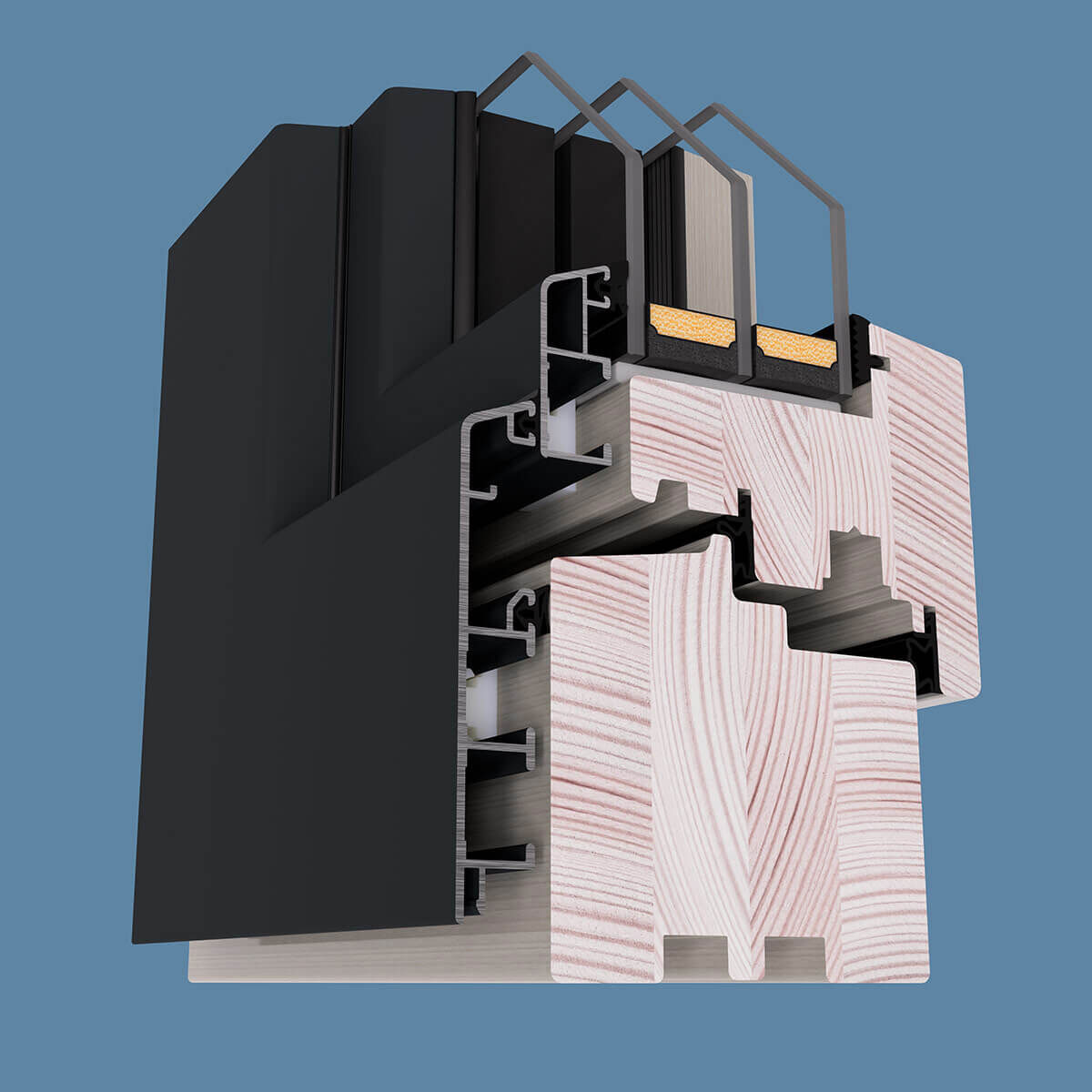

The images below show an 80 mm thick profile – Quadrat cladding with 52 mm glass and Quadrat FB with 60 mm glass.
Wood-aluminium joinery – shapes and functions

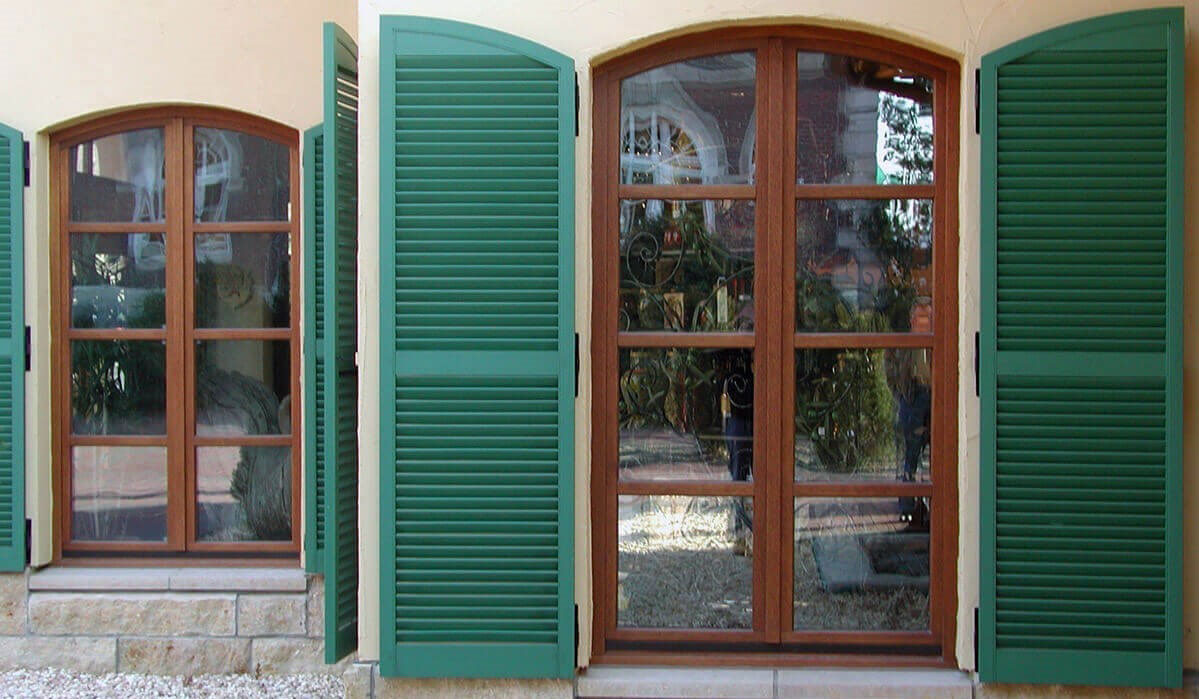

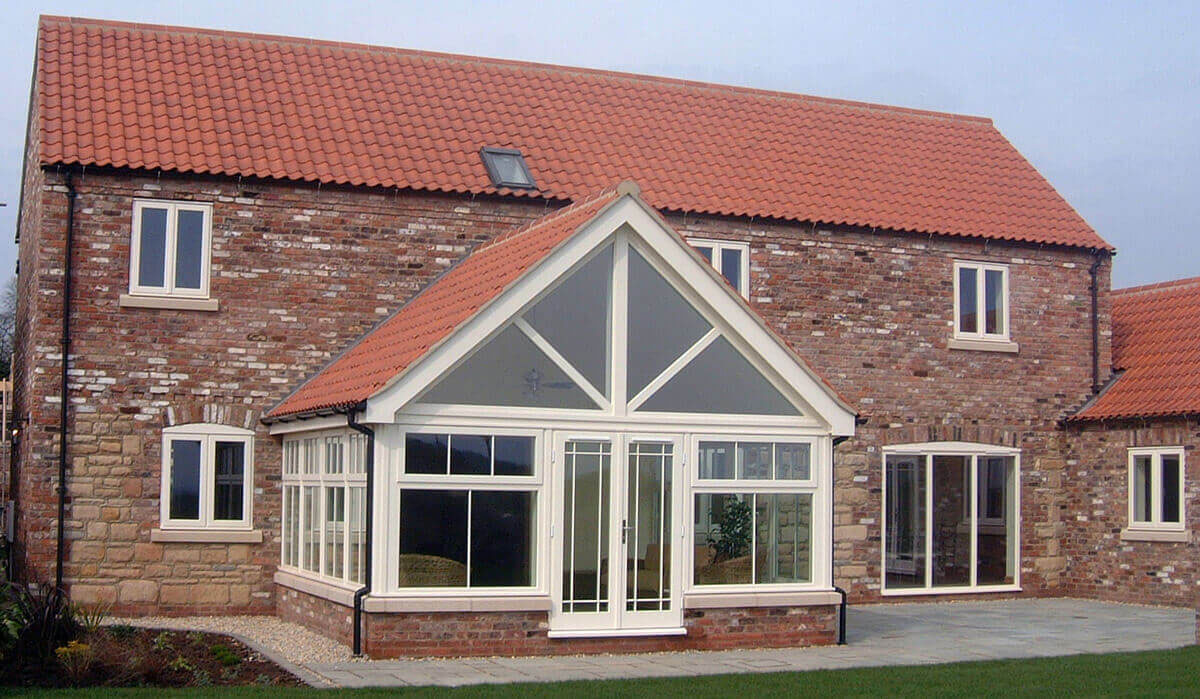

Standard wood-aluminium windows and balcony doors from the MS Windows and Doors offer are rectangular in shape. The following construction types are available: tilt, turn, tilt and turn, fixed sash, fixed frame and pivot. In addition, there is the option of fulfilling orders for joinery in other forms, such as circle, trapezoid, ellipse, triangle or arch. These windows can be made as pivot, tilt, turn or fixed glazing – it depends on the technological possibilities regarding the particular type of construction.
Wood and cladding colours
MS Windows and Doors’ assortment includes numerous species as well as colours of wood. Each of the offered types of raw material has different properties – parameters and appearance. Combined with the virtually unlimited possibilities for lacquering the aluminium cladding, this makes it possible to create a joinery that fully meets the customer’s preferences.
Standard equipment of wood-aluminium windows
The standard equipment of wood-aluminium constructions determines not only the functionality of the joinery, but also its appearance. Due to the fact that windows of this type are classified as luxury goods, every element used in their production process must be made with the greatest care. In addition, it should have very good technical parameters. Each structure from the MS Windows and Doors offer is equipped with high quality components, appropriately selected depending on the type of wood, as well as the selected colour variant. As standard, the wood-aluminium windows are equipped with:
- Gutmann or Aluron aluminium cladding,
- fittings for wood-aluminum windows ,
- gaskets for structures made of wood .
Siegenia TITAN AF – comfortable hardware
The quality of the fittings installed in wood-aluminum windows largely affects the period in which the woodwork functions properly. In addition, the components used determine the comfort of use of wooden structures. Their impact on the safety of the people in the room is not insignificant. The right choice of hardware components guarantees greater protection against burglary. It should also not be forgotten that these components affect the amount of energy needed to heat the interior and thus the costs incurred. Wood-aluminium joinery manufactured by MS Windows and Doors is equipped with Siegenia TITAN AF hardware. They ensure comfort during use of the structure and safety. To increase the level of protection of your home against unwanted intrusion, you can opt for one of the optional security packages (RC1 or RC2).
Wood-aluminium balconies – threshold variants

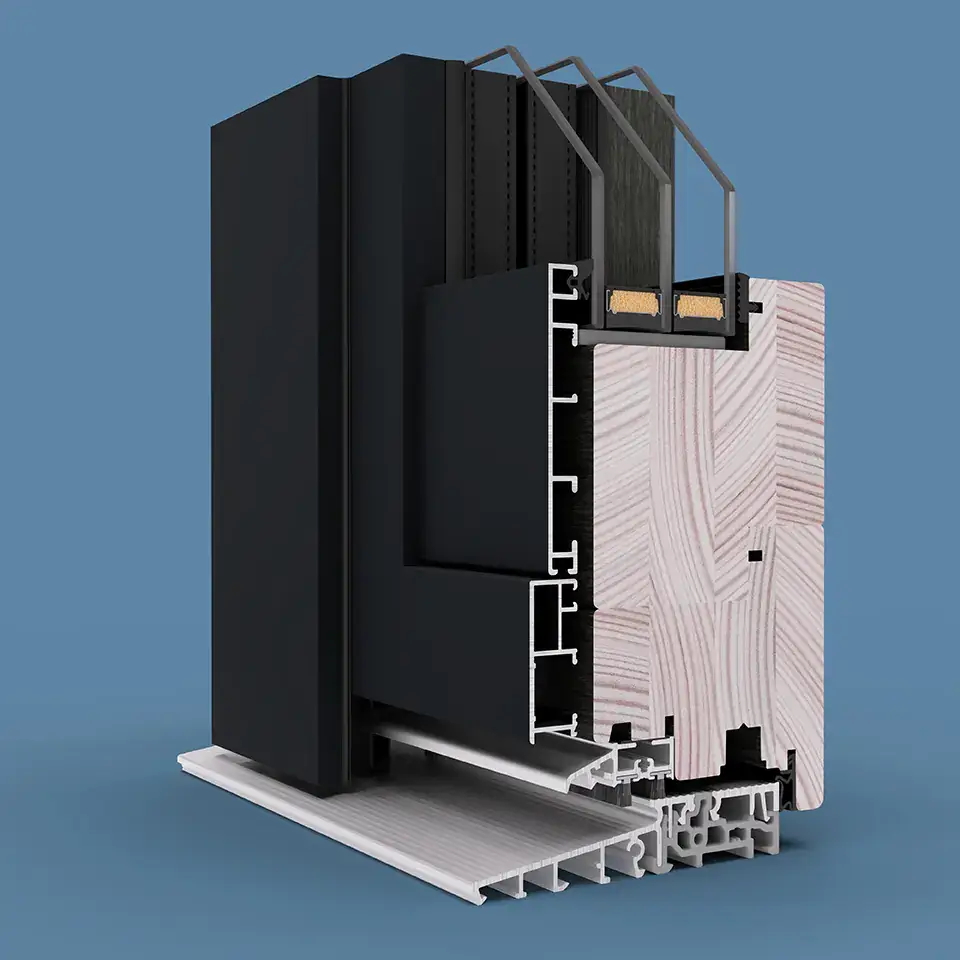

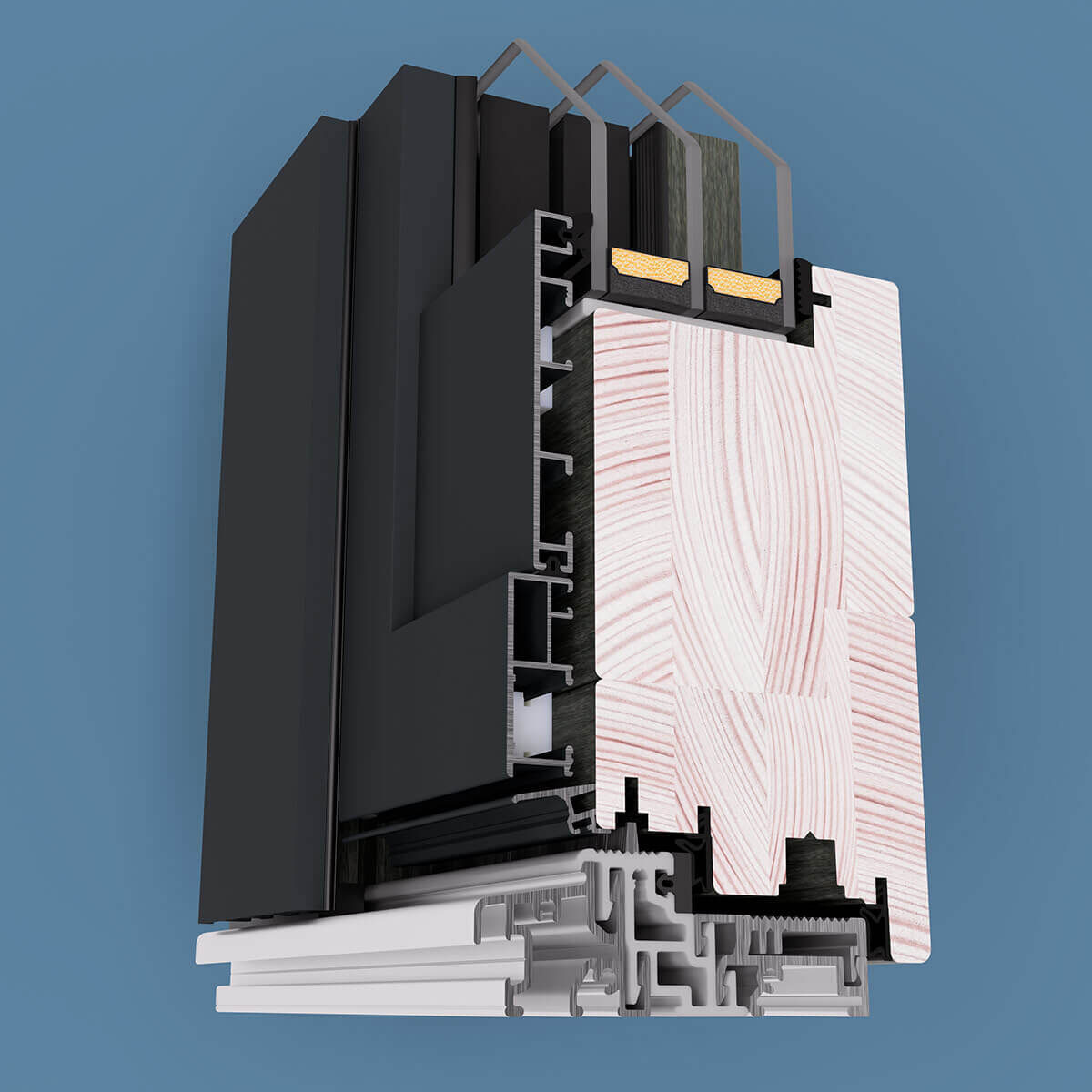

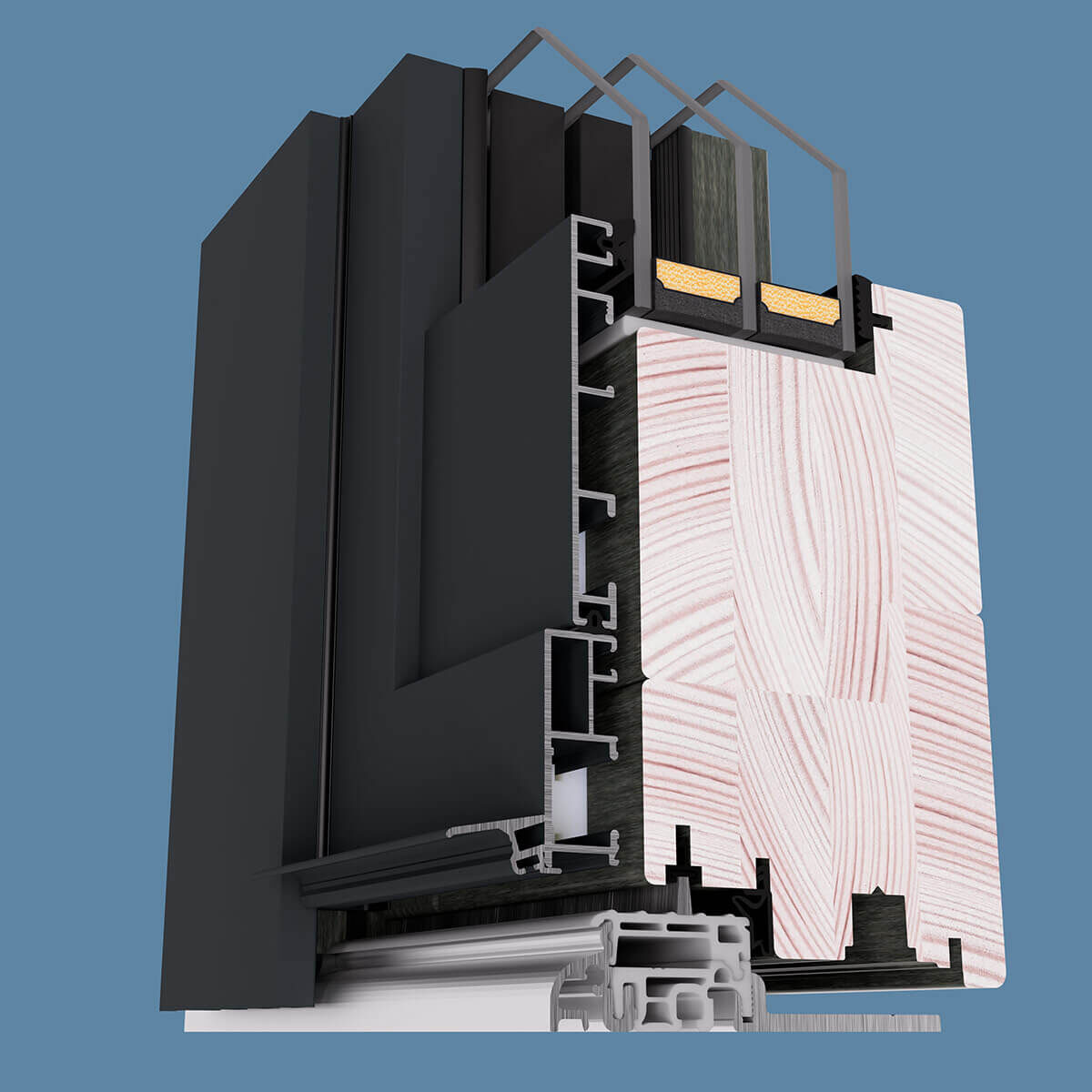

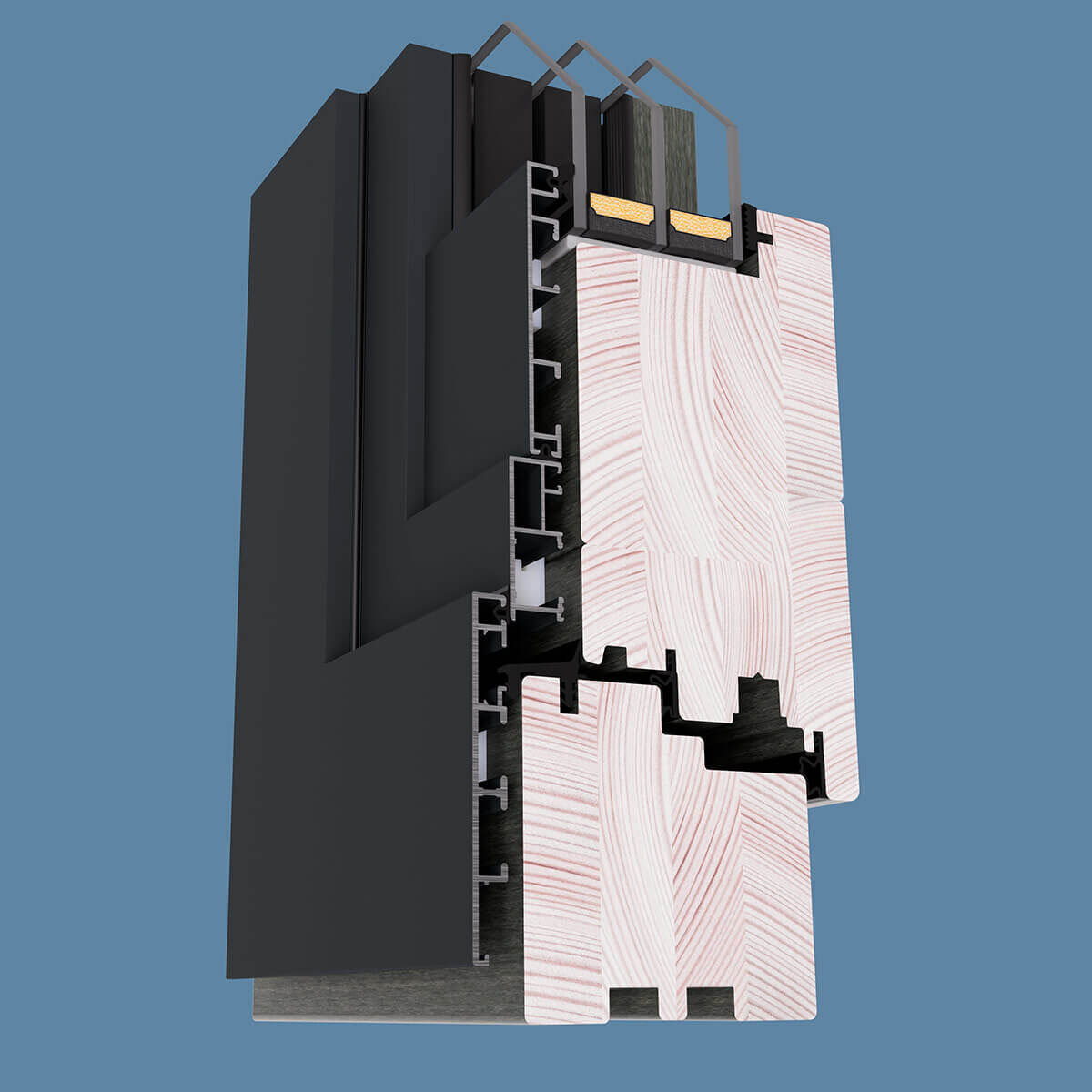

Wood-aluminium balcony doors are offered in two options. Apart from the traditional solution (with a wooden frame), balcony sashes are also available with an aluminium threshold. This type of construction will be perfect as an exit to the terrace from the house. In order to increase the comfort of the joinery, it is worth opting for a warm threshold. The graphics below show exemplary threshold options (Modern line, profile thickness 80 mm). The visible variants are: the standard wooden frame, the standard Gutman Weser aluminum threshold (32 mm), as well as the GG Combi low threshold (20 mm) and the low BKV aluminum threshold (20 mm).
